Quick Details
-
Brand Name:
-
GRL
-
Model Number:
-
HGL
-
Max. Current:
-
1600A
-
Current Range:
-
1600A
-
Material:
-
DMC or PA66
-
Contact:
-
red copper T3
-
Pole Quantity:
-
3 Poles
-

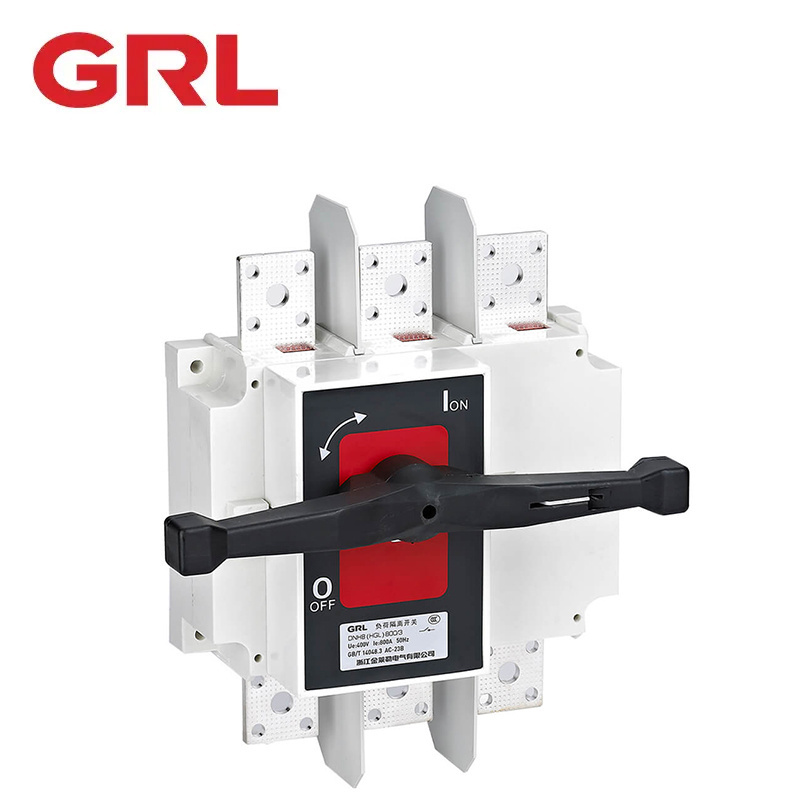

Product Name:
-
load break switch
-
Type:
-
Non-fused type
-
Operation Mode:
-
Inside cabinet or outside cabinet
-
Peculiarity:
-
Fair retardant V0
-
Carton Content:
-
1 x load break isolator
-
Usage:
-
Low voltage
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GRL
-
Model Number:
-
HGL
-
Max. Current:
-
1600A
-
Current Range:
-
1600A
-
Material:
-
DMC or PA66
-
Contact:
-
red copper T3
-
Pole Quantity:
-
3 Poles
-
Product Name:
-
load break switch
-
Type:
-
Non-fused type
-
Operation Mode:
-
Inside cabinet or outside cabinet
-
Peculiarity:
-
Fair retardant V0
-
Carton Content:
-
1 x load break isolator
-
Usage:
-
Low voltage
Overview
HGL series load isolation witch mainly suitable for AC 50Hz,rated voltage t0 660y DC rated voltage up t0 440y rated current up t0 3150A. The switch is
used in the infrequent making and breaking circuit.
* The elastic-accumulating accelerating mechanism for instant release realizes the rapid making and breaking(13.8m/s), having no relation ship with the
speed of the operating handle, and increasing greatly the capability of extinguishing electric arc.
* The shell made of unsaturated polyester resin reinforced by glass fibre possesses excellent perform ance of flame resistant, dielectric performance,
safe operation, resist
* Parallel double gap contact possesses self cleaning functions.
* Allthe contact materials are copper alloy plated with silver, and possess two separation contact surfaces.Large clearance of insulation.
* Be on "0" , the products can lock the handle with three locks at the same time and thus can avoid error operation.
Model list
| No. | Pole | Rated Current | Installation |
| HGL-160/3 | 3-pole | 100A,160A | Fixed Type |
| HGL-250/3 | 3-pole | 200A,250A | |
| HGL-400/3 | 3-pole | 315A,400A | |
| HGL-630/3 | 3-pole | 500A,630A | |
| HGL-1250/3 | 3-pole | 800A,1000A,1250A | |
| HGL-3150/3 | 3-pole | 1600A,2500A,3150A | |
| HGL-160/4 | 4-pole | 100A,160A | |
| HGL-250/4 | 4-pole | 200A,250A | |
| HGL-400/4 | 4-pole | 315A,400A | |
| HGL-630/4 | 4-pole | 500A,630A | |
| HGL-1250/4 | 4-pole | 800A,1000A,1250A | |
| HGL-3150/4 | 4-pole | 1600A,2500A,3150A |
Parameter
| Product | Switch Disconnect |
| NO. | HGL |
| Poles | 3P & 4P |
| Rated Voltage | 400V/660V |
| Rated Current | 63A,100A,160A,250A,315A,400A,500A,630A,800A,1000A,1250A,1600A,2000A,2500A,3150A |
| Installation | Fixed Type |
