Quick Details
-
Dimension(L*W*H):
-
L1300*W1300*H780mm
-
Applicable Industries:
-
Metal Coating Machinery
-
Weight (KG):
-
300
-
Voltage:
-
As local standard
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLO
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
L1300*W1300*H780mm
-
Applicable Industries:
-
Metal Coating Machinery
-
Weight (KG):
-
300
-
Voltage:
-
As local standard
Product Details

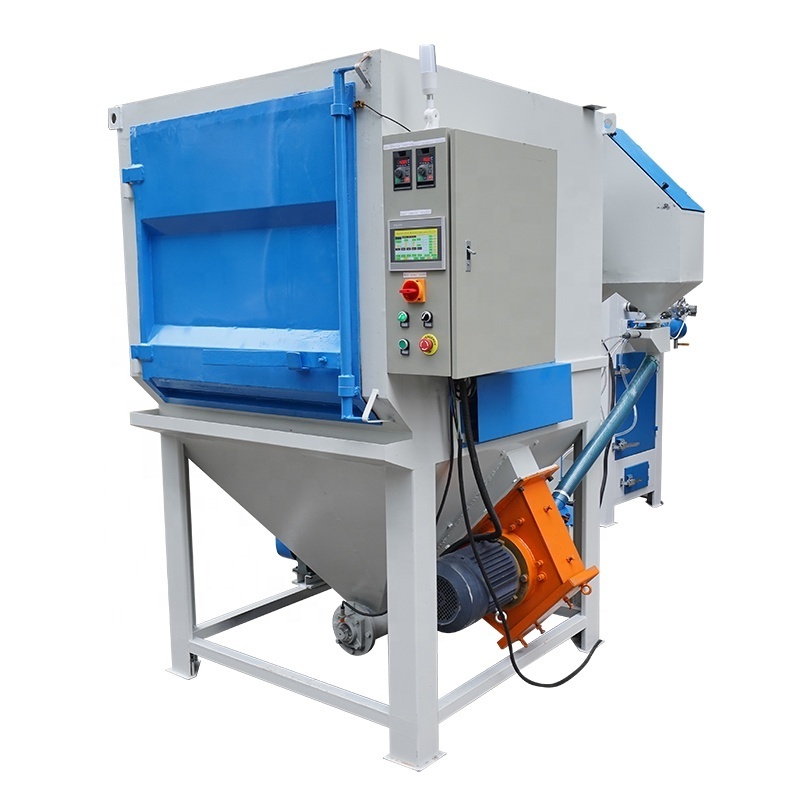

COLO-1313S High Efficiency Automatic Shot Blasting Machine Alloy Wheel Shot Blaster
The automatic shot blaster is specifically designed for wheel and rim processing. It enables the automated blasting of a singlewheel at a time, delivering outstanding efficiency in rust and paint removal. Furthermore, this shot blasting machine enhances the surface roughness of alloy wheel rims, ensuring optimal adhesion for a flawless powder coating application
Product Introduction
Sandblasting chamber
The specially designed shot blasting chamber for securing alloy wheels includes a protective bracket and two rollers to facilitate continuous wheel rotation, ensuring a comprehensive and thorough cleaning process.
Roller Drive Power: 400W"
Filter dust collector
It utilizes filter materials that effectively block dust from permeating the filter's interior. These materials offer
low resistance, easy maintenance, and achieve a filtration precision as fine as 5μm. As a result, the system boasts an impressive
dust removal efficiency of up to 99.5%. Powered by a 2.2KW fan motor, it delivers a robust air flow of 6800m³/h."
low resistance, easy maintenance, and achieve a filtration precision as fine as 5μm. As a result, the system boasts an impressive
dust removal efficiency of up to 99.5%. Powered by a 2.2KW fan motor, it delivers a robust air flow of 6800m³/h."
Elevator: 1set
The elevator operates using a belt system. A hopper is affixed to the conveyor belt, scraping up the used blasting shots from the
bottom and then transporting them to the top, driven by the elevator motor. Subsequently, the shots are released to the separator
through centrifugal force. For easy maintenance and replacement of wearing parts, the elevator cover features an access door.
Elevator Power: 1.5kW
bottom and then transporting them to the top, driven by the elevator motor. Subsequently, the shots are released to the separator
through centrifugal force. For easy maintenance and replacement of wearing parts, the elevator cover features an access door.
Elevator Power: 1.5kW
PLC touch screen electrical controller
Utilizing PLC control with a user-friendly touchscreen interface provides precise control and convenient operation, facilitating
easy debugging.
The operator has the flexibility to initiate each functional component sequentially or jog individual components out of order for
performance testing and operational status checks.
easy debugging.
The operator has the flexibility to initiate each functional component sequentially or jog individual components out of order for
performance testing and operational status checks.
Product Parameters
|
Model
|
KF-1313S
|
|
|
|
|||
|
Cabinet inner worksize
|
L1300*W1300*H780mm
|
|
|
|
|||
|
Impeller head power
|
7.5kw
|
|
|
|
|||
|
Dust collection fan motor
|
2.2KW
|
|
|
|
|||
|
Shot lifting system
|
0.75KW
|
|
|
|
|||
|
Roller belt drive motor
|
400W
|
|
|
|
|||
|
Abrasive flow rate
|
60kg/min
|
|
|
|
|||
|
Lifting system
|
1.5KW
|
|
|
|
|||
|
Rotating speed of rollers
|
adjustable
|
|
|
|
|||
|
Shot blasting speed
|
adjustable
|
|
|
|
|||
Application
Product Packing
Packing:
wooden box or pear cotton
Delivery: shipping by sea
Lead time: 10~30 days according to order qty
Order method: accept order on line- Alibaba trade assurance
Payment: accept 30 advance, 70 before shipping
Delivery: shipping by sea
Lead time: 10~30 days according to order qty
Order method: accept order on line- Alibaba trade assurance
Payment: accept 30 advance, 70 before shipping
