Quick Details
-
Production Capacity:
-
35-45 Bags/min
-
Weight (KG):
-
120
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
KST
-
Dimension(L*W*H):
-
1850 * 950 * 2200mm
-
Product name:
-
PYRAMID TEA BAG PACKING MACHINE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Bag Making
-
Main Function:
-
Weighing Forming Filling Sealing
-
Filling range:
-
1~10 grams
-
Packing speed:
-
35-45 Bags/min
-
Filling method:
-
4 or 6 Heads Electronic Weigher
-
Sealing type:
-
Ultrasonic Sealing for pyramid, heat sealing for outer
-
Bag type:
-
Inner pyramid with outer wrapper
-
Film width:
-
inner 120,140,160mm
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Film, Foil, Belt, Pouch
-
Packaging Material:
-
Plastic, Nylon, PLA, Non woven,PET
-
Production Capacity:
-
35-45 Bags/min
-
Weight (KG):
-
120
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
KST
-
Dimension(L*W*H):
-
1850 * 950 * 2200mm
-
Product name:
-
PYRAMID TEA BAG PACKING MACHINE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Bag Making
-
Main Function:
-
Weighing Forming Filling Sealing
-
Filling range:
-
1~10 grams
-
Packing speed:
-
35-45 Bags/min
-
Filling method:
-
4 or 6 Heads Electronic Weigher
-
Sealing type:
-
Ultrasonic Sealing for pyramid, heat sealing for outer
-
Bag type:
-
Inner pyramid with outer wrapper
-
Film width:
-
inner 120,140,160mm
Products Description

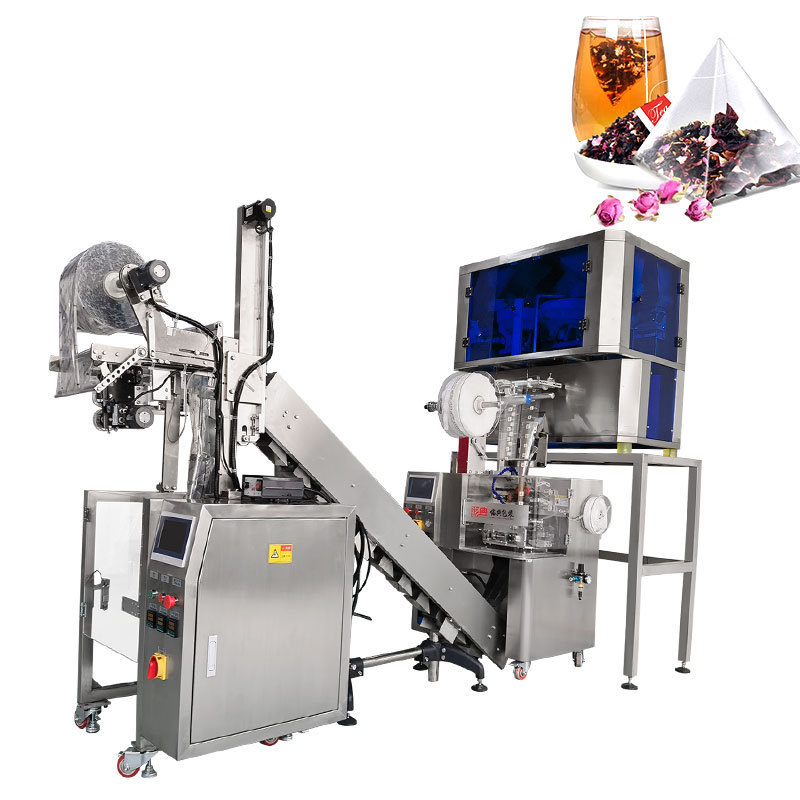

KST Pyramids tea inner bag and outer bag making tea packaging machine price for small business
|
Model
|
KST-160-4S
|
|
|
|
|||
|
Working Speed
|
40-60 bags/min
|
|
|
|
|||
|
Sealing Method (Inner Parts)
|
Ultrasonic sealing
|
|
|
|
|||
|
Filling System
|
4 or 6 Vibrator Scales
|
|
|
|
|||
|
Bag Size (Inner Drip Bag)
|
Length: 50-52mm Width: 68-70mm
|
|
|
|
|||
|
Filling range
|
2-10g/bag
|
|
|
|
|||
|
Bag Type
|
Pyramid / Rectangular (Transfer through one button)
|
|
|
|
|||
|
Air Comsumpion
|
≥0.6Mpa 0.4m³/min
|
|
|
|
|||
|
Power
|
220V Single phase 50/60Hz
|
|
|
|
|||
|
Weight
|
600kg
|
|
|
|
|||
|
Overall Denmensions
|
4000 * 1200 * 2250mm
|
|
|
|
|||
KST-160 pyramid bag tea packing packaging machine, specially designed for
PYRAMID/RECTANGULAR
tea bag packing.
It is widely applied to different kinds of
HERBAL TEA,
LOOSE TEA LEAVES
, FLOWER TEA, FRUIT TEA and BLENDING TEA.
Such as
Green tea, Black tea, Dendranthema morifolium, Rose, Oolong tea
, etc.
Rectangular and pyramid bag with easy shift on
touch screen
.
The machine can automatically complete
feeding
,
measuring
,
bag-making
,
sealing
,
cutting off counting
,
finished product transportation
and other functions.
Precise control system is adopted to adjust the movement of the whole machine, with compact structure,
human-machine interface
design and
convenient operation
.
Easy to adjust and maintain.
The bag length is driven by
servo motor
, the bag length is stable, the positioning is accurate, the
adjustment is convenient.
Automatic tension control device
for packaging materials.
Automatic alarm and shutdown
function in case of failure.
Six precise load cells can meet your industries sever standards and keep you away from losing your material.
01丨Control System
02丨Coding System
03丨Sealing System
