Quick Details
-
Brand Name:
-
Xindun
-
Model Number:
-
XD-wonder2 solar charge controller
-
Work Time (h):
-
1-24H
-
Max PV Power:
-
140W~5600W
-
Max PV Voltage:
-
120v~180v
-
Certificate:
-
CE RoHS
-
Warranty:
-
12 months
-

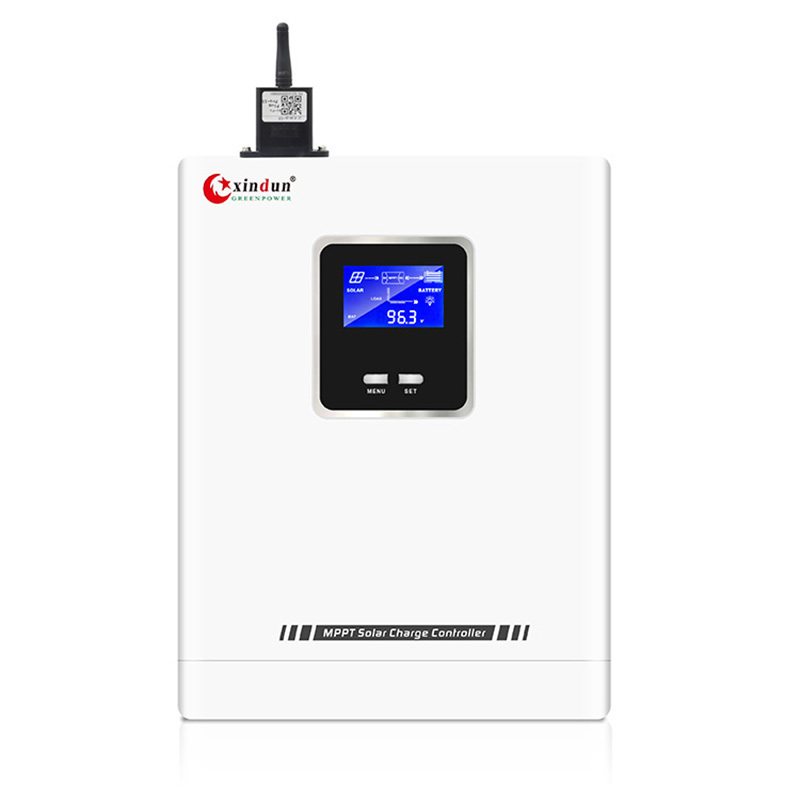

Product name:
-
Mppt solar charge inverter controller
-
Display:
-
LCD display battery charge controller
-
Charge mode:
-
mppt solar charge controller
-
Rated Current:
-
10A~100A
-
Protection:
-
overload/over temperature/Over charge
-
Color:
-
mppt solar charge controller
-
OEM:
-
Accept OEM
-
Battery type:
-
Lead-acid/gel battery/deep cycle battery
-
Charge way:
-
current/constant voltage/floating charge
-
Keywords:
-
mppt solar charge controller 5kw
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
XD-wonder2 solar charge controller
-
Work Time (h):
-
1-24H
-
Max PV Power:
-
140W~5600W
-
Max PV Voltage:
-
120v~180v
-
Certificate:
-
CE RoHS
-
Warranty:
-
12 months
-
Product name:
-
Mppt solar charge inverter controller
-
Display:
-
LCD display battery charge controller
-
Charge mode:
-
mppt solar charge controller
-
Rated Current:
-
10A~100A
-
Protection:
-
overload/over temperature/Over charge
-
Color:
-
mppt solar charge controller
-
OEM:
-
Accept OEM
-
Battery type:
-
Lead-acid/gel battery/deep cycle battery
-
Charge way:
-
current/constant voltage/floating charge
-
Keywords:
-
mppt solar charge controller 5kw
1 Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%;
2 LCD graphic display of photovoltaic power generation data and simulation of power generation process;
3 Multiple load working modes can be set to adapt to different working occasions;
4 Ultra wide photovoltaic input voltage range, more convenient system configuration;
5 It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters; Users are more flexible and convenient to use;
6 Lithium battery activation function;
7 Full range of electronic protection functions: battery anti reverse connection, PV anti reverse connection, charging over-current, DC output over-current, over temperature, over-voltage and undervoltage protection;
8 Intelligent battery management function, extending battery life;
9 RS485 communication interface (Mod Bus protocol) and mobile phone APP are convenient for users to integrate and manage.
| Product Parameters | ||||||
| Model: Wonder2 | 10124, 20124, 30124 | 1048, 2048, 3048 | 40124, 50124, 60124 | 4048, 5048, 6048 | 80124, 100124 | 8048, 10048 |
| Rated Current | 10A/20A/30A | 40A/50A/60A | 80A/100A | |||
| Rated System Voltage | 12V/24V | 48V | 12V/24V | 48V | 12V/24V | 48V |
|
Max PV Input Voltage(Voc)
(At the lowest ambient temperature) |
120V | 180V | 120V | 180V | 120V | 180V |
| MPPT Tracking Voltage Range | 12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V | |||||
| Recommended operating voltage range | 12V system: 15V-30V; 24V system: 30V-60V; 48V system: 60V-90V | |||||
| PV array Max power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A) |
|||||
| Battery Type | Lead acid battery/Lithium battery(Users can customize charging parameters for other types of batteries) | |||||
| Floating Voltage | 13.8V/Single battery | |||||
| Charge Voltage | 14.2V/Single battery | |||||
| Charging Protection Voltage | 15V/Single battery | |||||
| Promote recovery voltage | 13.8V/Single battery | |||||
| Recovery voltage after low voltage disconnect | 12.5V/Single battery | |||||
| Discharge Limited voltage | 10.5V/Single battery | |||||
| Temperature Compensation Coefficient | -3mV / ℃ / 2V (25℃ is base line) (Optional) | |||||
| Charging Mode | MPPT maximum power point tracking | |||||
| Charging Method | Three stages: constant current(MPPT); constant voltage; floating charge | |||||
| Protection | Over-voltage/under-voltage/over-temperature/Anti-reverse connection protection | |||||
| Conversion Efficiency | >98% | |||||
| MPPT Tracking Efficiency | >99% | |||||
| Machine Size(L*W*Hmm) | 214*155*72.8 | 238*143180*82 | 315*210*106.5 | |||
| Package Size(L*W*Hmm) |
243*184*115(1pc)
497*379*247 (8pcs) |
267*209*124(1pc)
639*278*265 (6pcs) |
344*239*149(1pc)
489*355*315 (4pcs) |
|||
| N.W(kg) | 1.6(1pc) | 2.4(1pc) | 4.2(1pc) | |||
| G.W.(kg) | 1.8(1pc) | 2.7(1pc) | 4.6(1pc) | |||
| parameter | ||||||
| Display | LCD | |||||
| Thermal Method | Cooling fan in intelligent control | |||||
| Type Of Mechanical Protection | IP20 | |||||
| Operating Temperature | -15℃~+50℃ | |||||
| Storage Temperature | -20℃~+60℃ | |||||
| Elevation | 5000m(Dreating above 2000m) | |||||
| Humidity | 5%~95%(No condensation) | |||||
| Communication | RS485/APP(WIFI monitoring or GPRS monitoring) | |||||
|
We never use poor-quality products in the market. The Most Reliable Solar Controller Factory in China . 15 Years of Production and Sales Experience. Suitable for personal use or for agents to select suppliers.
|
Q1: What is the purpose of solar controller?
A:Solar controller is used to have solar charge for the battery. When solar panel generate solar power, solar controller will store the solar power to the batteries.
Q2: MPPT or PWM, which one should I choose?
A: PWM can get about 80% solar power from the solar panel, mppt can get about 99% solar power from it. Small solar system (1kw or under 1kw) recommend to use pwm, price is cheaper than mppt. If need high efficiency to store solar power, recommend mppt.
Q3: Can we use lithium batteries for this MPPT solar charge controller?
A3: Yes,the battery charge voltage of the MPPT can be adjustable, suitable for most of the battery types.
Q4: What is the charging method of the MPPT?
A4: The MPPT use three stages charge way: constant current, constant voltage and floating charge. Prolong the battery working life.
Q5: Does MPPT has anti-reverse connection function?
A5: Yes,the MPPT is with PV anti-reverse protection.
Q6: Can MPPT auto recognition 12V,24V and 48V system?
A6: YES.
