Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Copper foil
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YPT
-
Model Number:
-
YP-U04
-
Color:
-
Copper
-
Thickness (mm):
-
0.06/0.05
-
Length:
-
20M
-
Width:
-
5mm/10mm/20mm etc
-
Application:
-
for industrial
-
Product name:
-
Copper Foil Tape
-
Conductive:
-
Double size conductive tape
-
Package:
-
standard
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Hot Melt
-
Design Printing:
-
No printing
-
Material:
-
Copper foil
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YPT
-
Model Number:
-
YP-U04
-
Color:
-
Copper
-
Thickness (mm):
-
0.06/0.05
-
Length:
-
20M
-
Width:
-
5mm/10mm/20mm etc
-
Application:
-
for industrial
-
Product name:
-
Copper Foil Tape
-
Conductive:
-
Double size conductive tape
-
Package:
-
standard
high temperature resistance Copper Foil Adhesive Tape/Electronics Stained Glass Metal Tape/15mm*20m Copper foil tape
Introduction of Copper conductive tape
Copper conductive tape is using conductive copper foil as backing material and coated with acrylic conductive adhesive. Copper conductive tape is mainly used for electrical use, both of the copper film and adhesive are conductive.
- Adhesive : acrylic conductive adhesive
- Carrier : conductive copper foil
- Color : Copper
- Release liner : white paper liner
- Size: 10mm*20m(Log roll size)
Copper Conductive Tape Applications:
- Electrical connection between surfaces (sheets / foils)
- Mounting transparent foils, windows for EMI/RFI shielding
- Shielding in housings and Faraday cages
- Cable shielding (Wrap arround the cable)
- Temporary shielding during emission and immunity tests
- Antistatic floor (ESD floor)
- EMI/RFI shielding (EMI/RFI shielding tape/gasket)
Copper Conductive Tape Specifications:
|
Part No. |
Adhesive |
Backing |
Film thickness |
Total Thickness |
|
YPT |
Conductive acrylic |
Conductive copper foil |
36mic |
60mic |
Technical Data of Copper conductive tape
- Color: Copper
- Carrier: Copper Foil
- Adhesive: Conductive Acrylic Adhesive
- Carrier Thickness (mm): 0.025
- Total Thickness (mm): 0.06 ± 0.005
- Appearance: Excellent, no oxidation
- Initial Tack(Steel Ball) (#): 11
- Resistance(ohm/in2): <0.05
- Holding Power(1kg/inch): ≥1140
- 180°Peeling Strength: >8 N/25.4mm
- Application Temperature: -20~120°C
- Storage Condition: 20°C, 65% RH
Copper Conductive Tape Features;
- - Heat preservation, heat insulation
- - Waterproof, cold and heat resistance
- - Strong adhesion and easily peeled off
- - EMI shielding
- - UV resistance, flame retardant
- - Moisture resistance, chemical and corrosion resistance
- - Ideal for outdoor application and durable

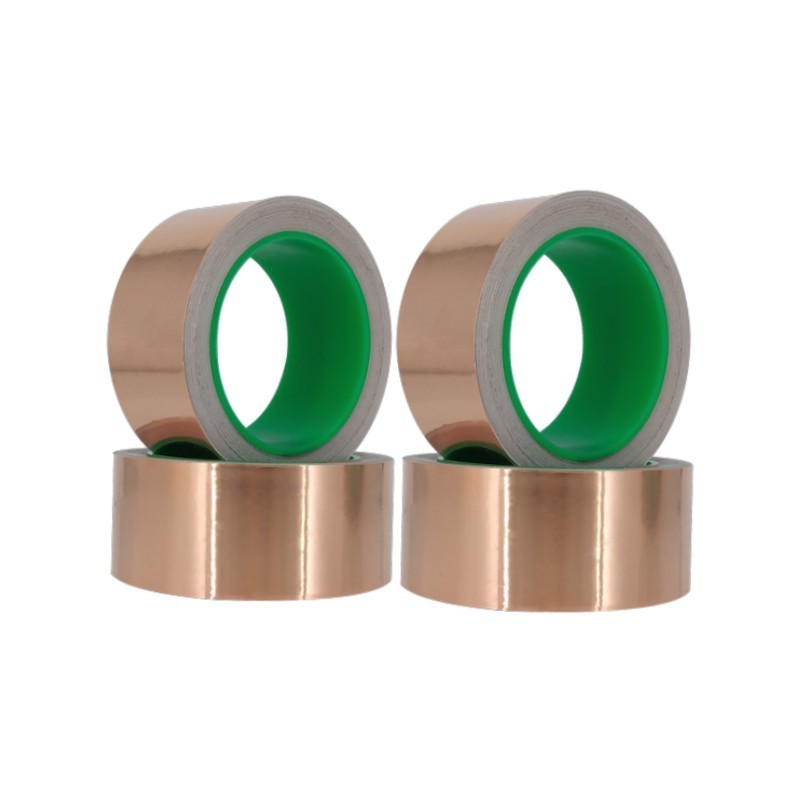

Copper Conductive Tape Pictures;
