- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XBD
-
Model Number:
-
1219
-
Torque:
-
13.2mNm
-
Product Name:
-
Model train coreless 1219 dc motor
-
Color:
-
Silver or customized
-
Application:
-
robot and elcetrical tools etc.
-
size:
-
Dia12*15mm or customized
-
Motor type:
-
DC Brushed Motor
-
Rated Voltage:
-
6-24V/DC
-
Typical Applications:
-
Industrial equipment
-
Advantage:
-
low noise and long service time
-
ODM/OEM:
-
acceptable
Quick Details
-
Speed(RPM):
-
6500RPM
-
Continuous Current(A):
-
0.29A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XBD
-
Model Number:
-
1219
-
Torque:
-
13.2mNm
-
Product Name:
-
Model train coreless 1219 dc motor
-
Color:
-
Silver or customized
-
Application:
-
robot and elcetrical tools etc.
-
size:
-
Dia12*15mm or customized
-
Motor type:
-
DC Brushed Motor
-
Rated Voltage:
-
6-24V/DC
-
Typical Applications:
-
Industrial equipment
-
Advantage:
-
low noise and long service time
-
ODM/OEM:
-
acceptable

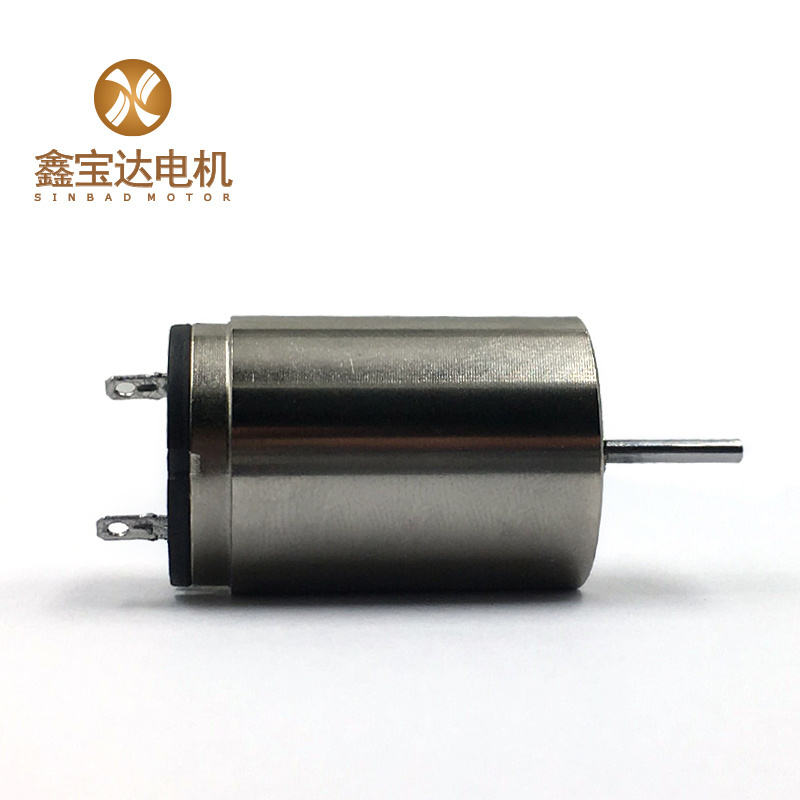

Model train coreless 1219 dc motor, diameter and length could be customized
| 1219 Series | ||||||
| 4.5 | 6 | 12 | 15 | |||
| Rated Voltage | 4.5 | 6 | 12 | 15 | V | |
| Armature Resistance | 10.7 | 17.6 | 69 | 131 | Ω | |
| Max Output | 0.46 | 0.49 | 0.5 | 0.41 | W | |
| Max Effect | 70 | 69 | 68 | 67 | % | |
| No-load Speed | 15300 | 16000 | 16000 | 16200 | RPM | |
| No-load Current | 0.058 | 0.057 | 0.054 | 0.053 | A | |
| Locked-rotor Torque | 1.14 | 1.17 | 1.19 | 0.96 | mNm | |
| Friction Torque | 0.02 | 0.02 | 0.03 | 0.03 | mNm | |
| Speed Constant | 3460 | 2721 | 1364 | 1109 | rpm/V | |
| Back Electromotive Force Constant | 0.289 | 0.368 | 0.733 | 0.902 | mV/rpm | |
| Torque Constant | 2.76 | 3.51 | 7 | 8.61 | mNm/A | |
| Current Constant | 0.362 | 0.285 | 0.143 | 0.116 | A/mNm | |
| Speed/Torque Slope | 13413 | 13642 | 13447 | 16875 | rpm/mNm | |
| Rotor Inductance | 150 | 300 | 1200 | 1600 | μH | |
| Mechanical Time Constant | 20 | 20 | 18 | 19 | ms | |
| Rotor Moment Of Inertia | 0.14 | 0.14 | 0.13 | 0.11 | gcm 2 | |
| Angular Acceleration | 81 | 84 | 92 | 87 | .10 3 rad/s 2 |
We are specializing in
DC Coreless Motor
.Our products are exported to the world!
Provide high quality, Bring honorable value. 98% of clients come back to us for repeat orders.
1.Sample Available
2.Alibaba Trade Assurance
3.OEM & ODM Available
4.Small MOQ
Trading Info
1.Trade Terms:
FOB,CIF,EXW
2.Payment terms: T/T,Western Union,PayPal,MoneyGram.
3.Payment Condition:30% deposit advance,70% balance after deliver at best
4.Delivery Time: 7-15 working days after deposit;3-4 working days for inventory
5.Packing: Standard Export Carton
6.Shipping: By air,by express and by sea delivery
After-sales Services
1.No MOQ limited
2.Short Lead-Time
3.Quickly response in time
3.Good Pre/After Sales Service
