- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Singflo
-
Model Number:
-
FLO-2202 with tap
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
42W
-
Cable Length:
-
1CM
-
Outlet Size:
-
3/8''
-
Power:
-
42W
-
motor:
-
Electric 12v
-
Theory:
-
Reciprocating Pump
-
certificate:
-
CE,Rohs,ISO9001:2000,TUV
-
duty cycle:
-
working intermittent
-
housing:
-
PA66
-
check valve made:
-
EPDM
-
check valve spring:
-
stainless steel
-
liquid temperature:
-
60 centigrade degree
-
port size:
-
9.5mm(3/8")hose barb
-
flow:
-
2--4.3L/Min.
-
Certification:
-
ce
Quick Details
-
Application:
-
Marine
-
Pressure:
-
35psi
-
Voltage:
-
12V
-
Warranty:
-
1year
-
Brand Name:
-
Singflo
-
Model Number:
-
FLO-2202 with tap
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
42W
-
Cable Length:
-
1CM
-
Outlet Size:
-
3/8''
-
Power:
-
42W
-
motor:
-
Electric 12v
-
Theory:
-
Reciprocating Pump
-
certificate:
-
CE,Rohs,ISO9001:2000,TUV
-
duty cycle:
-
working intermittent
-
housing:
-
PA66
-
check valve made:
-
EPDM
-
check valve spring:
-
stainless steel
-
liquid temperature:
-
60 centigrade degree
-
port size:
-
9.5mm(3/8")hose barb
-
flow:
-
2--4.3L/Min.
-
Certification:
-
ce

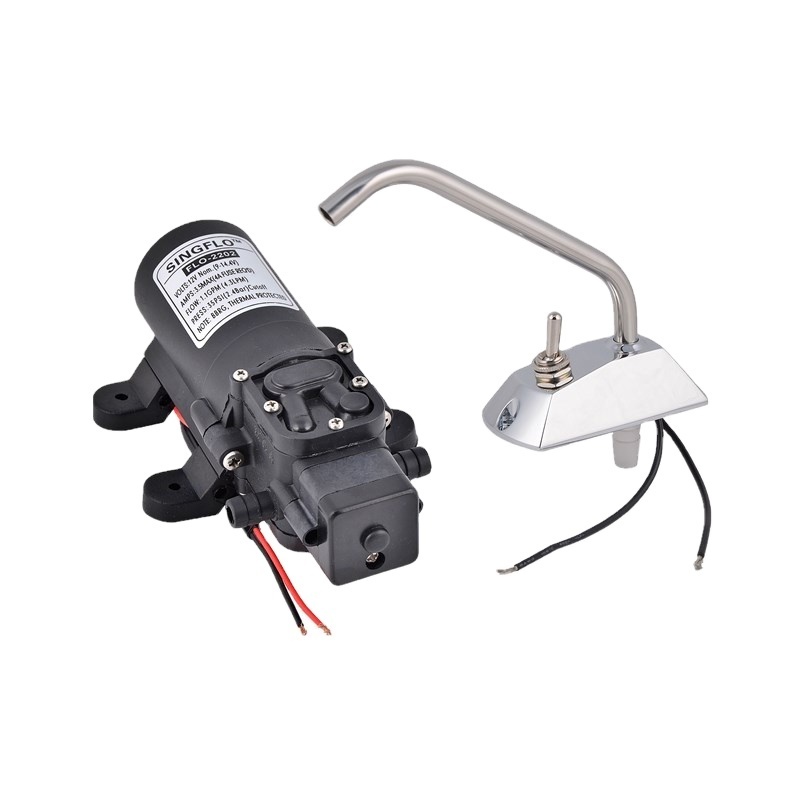

Buy cheap faucet 12v dc water booster pump from China manufacture
Economical 12 volt galley pump system supplied complete with chrome plated 12 volt electric faucet & pump - so pump can be automatically activated by the toggle switch on the faucet. The pump is 'SELF-PRIMING' so it can be mounted virtually anywhere in your Boat/Caravan/RV etc... up to 1.5m above the water supply. Delivers up to 4.3 litres per minute at 5 metre head. Suits 10mm hose.
Application:
Good for Boating/ Caravan/Motorhome/RV/Marine applications where a single
handle tap is required for space saving
Product Description:
*Galley pump set,complete with mounting screws & faucet.
*Compact 12v electric pump operates quietly and easy to install
*Zinc-alloy metal faucet base and stainless steel swing spout
*Built-in 12v toggle switch in on the faucet base-To automatically activate pump.
*Full 360 degree rotation.
*Pump is self-priming, so it can be located above supply tank.
*Delivers up to 4.3liters per minute at 1 meter head.
*Suits 10mm ID hose.
*Durable rubber feet for reduced vibration
*Waterproof rubber boot on tap switch
| Description for pump | Description of Tap/Faucet |
| Self priming :Vertical within 1.2m | Chrome mirror finish |
| 2 Chamber Diaphragm | Waterproof rubber boot |
| Port:3/8''(10mm)hose barb | Full 360 degree rotation |
| Liquid: 60°C Max | Built in 15Amp max.on/off switch |
| Built-in Check valve | Size:12x15x90cm |
| Pressure: 35PSI | |
| Run dry without damage | |
| Protection:On-demand/Automatic turn on/off | |
| Motor:12V Permanent Magnet,Intermittent duty |
W
iring diagram
