Quick Details
-
Interface Standard:
-
Type 2/Tyep 1/GBT
-
Output Current:
-
AC 8-32A
-
Input Voltage:
-
AC 100-240V
-
Input/Output Voltage:
-
100V-240V
-
Input frequency:
-
50/60Hz
-
Output power:
-
7kW
-
Output current:
-
16A 32A
-
RCD:
-
Type A
-
Product name:
-

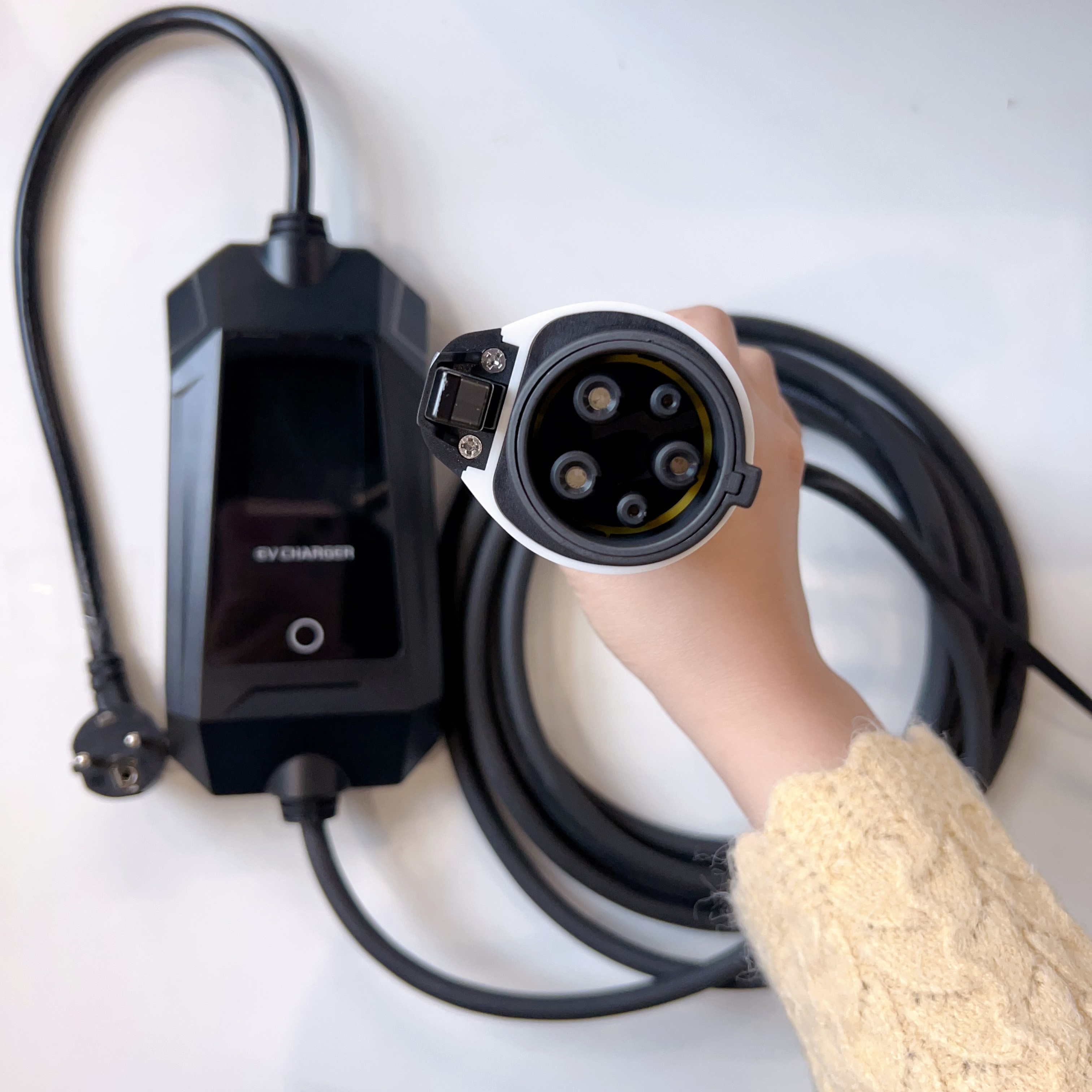

Portable Car ev charger station
-
Standard:
-
IEC 62196 Type2
-
Total Length:
-
5 Meters/ Customized
-
Cable Material:
-
TPU Soft Cable
-
Application:
-
Electric Vehicle Charging
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Model Number:
-
YQ-EV16P-2S
-
Brand Name:
-
YQ
-
Interface Standard:
-
Type 2/Tyep 1/GBT
-
Output Current:
-
AC 8-32A
-
Input Voltage:
-
AC 100-240V
-
Input/Output Voltage:
-
100V-240V
-
Input frequency:
-
50/60Hz
-
Output power:
-
7kW
-
Output current:
-
16A 32A
-
RCD:
-
Type A
-
Product name:
-
Portable Car ev charger station
-
Standard:
-
IEC 62196 Type2
-
Total Length:
-
5 Meters/ Customized
-
Cable Material:
-
TPU Soft Cable
-
Application:
-
Electric Vehicle Charging
Products Description
The price includes the charger only. Other accessories, bags and customizations are charged additionally.
Product Paramenters
|
Specifications
|
Product Name
|
Portable EV Charger
|
|
|
Plug for EV
|
IEC 62196 Type 2
|
|
|
Plug for Wall Socket
|
Blue CEE plug, red CEE plug, Schuko plug,etc.
|
|
Electric Parameters |
Rated Voltage
|
100～250V AC
|
|
|
Rated Current
|
8-16A AC,8-32A AC，1 phase
|
|
|
Frequency
|
50/60Hz
|
|
|
Insulation Resistance
|
＞1000MΩ
|
|
|
Terminal Temperature Rise
|
＜50K
|
|
|
Withstand Voltage
|
2000V
|
|
|
Contact Resistance
|
0.5mΩ
|
|
Mechanical Performance |
Mechanical Life
|
＞10000 times no-load plug in/out.
|
|
|
Coupled Insertion Force
|
45N～100N
|
|
|
Withstandable Impact
|
Dropping from a 1m-height and running-over by a 2T vehicle.
|
|
Material |
Enclosure
|
Thermoplastic, flame retardant grade UL94 V-0
|
|
|
Cable Material
|
TPE / TPU
|
|
|
Terminals/Pins
|
Copper alloy, silver plating
|
|
Safety and Warranty |
Ingress Protection
|
IP54
|
|
|
Certification
|
CE/ TUV/ UL
|
|
|
Certification Standard
|
IEC 62196-1-2016/ IEC 62196-2-2016
|
|
|
Charging Protection
|
Over current, residual current, short circuit, surge, over/under
voltage, over/under frequency, and over/under temperature protection; |
|
|
Warranty
|
1 years
|
|
Environment |
Work Temperature
|
-30℃~+50℃
|
|
|
Work Humidity
|
5%~95%
|
|
|
Work Altitude
|
<2000m
|
