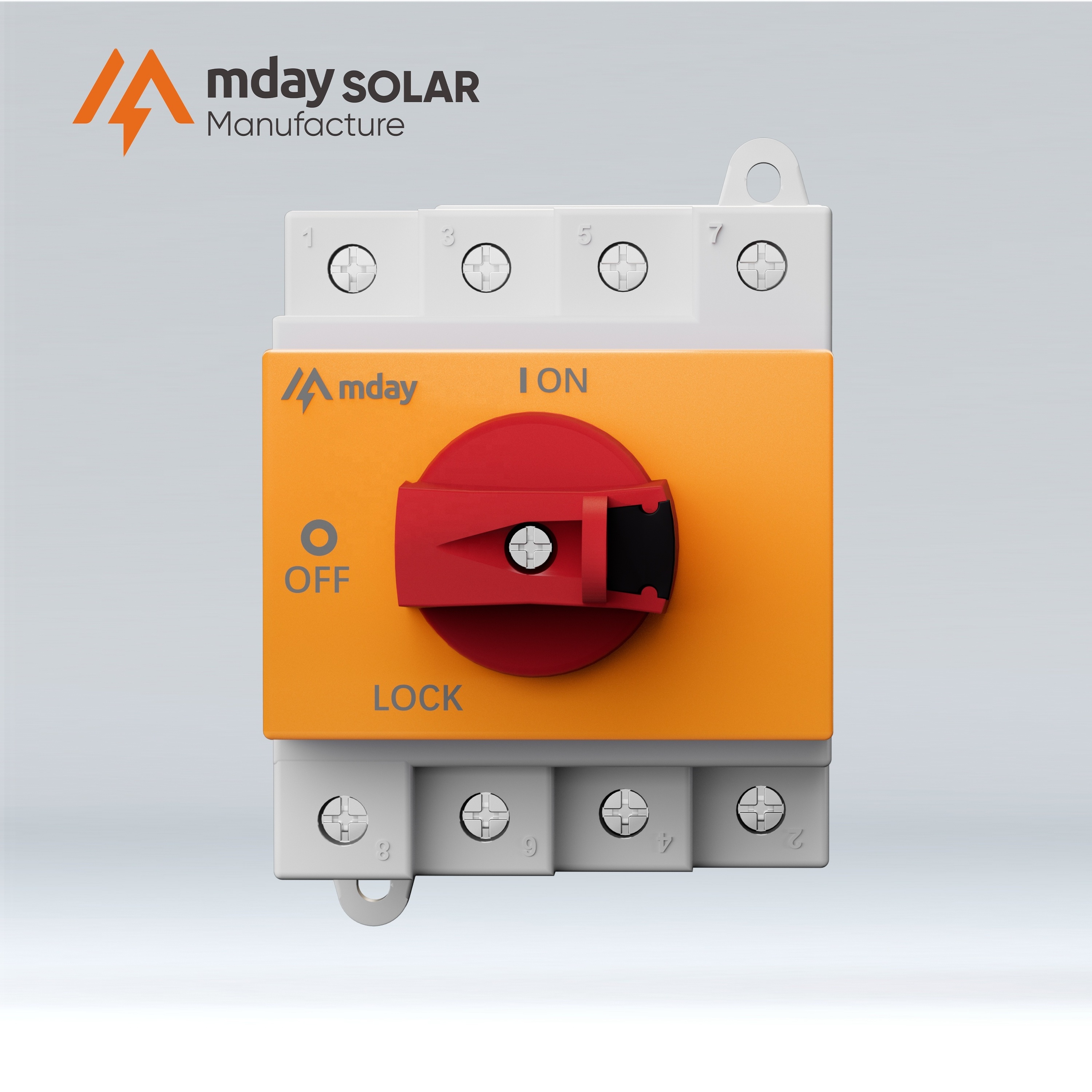

Mday Electric 1200VDC 1000V 32A dc isolating switch rotary pv disconnect switch

Mday Electric 1200VDC 1000V 32A dc isolating switch rotary pv disconnect switch

FOB Reference Price: Get Latest Price

≥5 Pieces

US $7

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: mday

Model Number:: MYPV32-L2

Rated Voltage:: 1000V

Rated thermal current:: 32A

Rated insulation voltage:: 1500V

Number of poles:: 4 pole

Rated impulse withstand voltage:: 8000V

Rated short- circuit making capacity:: 1KA,1S

Electrical Life:: 300 Cycles

Mechanical Life:: 10000 Cycles

Operation temperature:: -40 to +85

Pollution degree:: 3

IP degree:: IP66

Quick Details

Number of Pole:: 4

Rated Current:: 32

Place of Origin:: Zhejiang, China

Brand Name:: mday

Model Number:: MYPV32-L2

Rated Voltage:: 1000V

Rated thermal current:: 32A

Rated insulation voltage:: 1500V

Number of poles:: 4 pole

Rated impulse withstand voltage:: 8000V

Rated short- circuit making capacity:: 1KA,1S

Electrical Life:: 300 Cycles

Mechanical Life:: 10000 Cycles

Operation temperature:: -40 to +85

Pollution degree:: 3

IP degree:: IP66

Product Description

DC Isolator Switch L2 Series

disconnector switch

Features/Benefits

* Professional fuse manufacturer for 11 years
* Direct Factory Price
* ODM / OEM Available
* IP20 Protection Level
* 2 Pole, 4 Poles are viable (Single I Double String)

* Standard: IEC60947-3, AS60947.3DC-PV2, DC-PV1, DC-21B

* 16A, 25A, 32A, 1200V DC

Product Model			MYPV32-L2
Function			Isolator , Control
Standard			IEC60947-3, AS60947.3
Utilization category			DC-PV2/DC-PV1/DC-21B
Pole			4P
Rated Frequency			50/60Hz
Rated operational voltage (Ue)			300V, 600V, 800V, 1000V, 1200V
Rated insulation voltage (Ui)			1200V
Rated short-time withstand current( Icw)			1kA,1S
Rated impulsed withstand voltage( Uimp)			8. OkV
Overvoltage category			II
Suitability for isolation			Yes
Polarity			No polarity, "+"and"-"polarities could be interchanged.
Installation environment			the place of no abvious vibrate & impact
Service life/cycle operation
Mechanical			18000
Electrical			2000
Installation Environment
Ingress Protection	Switch Body	IP20
Storge temperature			-40℃~+85℃
Mounting Type			Vertically or horizontally
Pollution degree			3

Recommend Products

PV DC disconnector Photovoltaic product

It is mainly used in photovoltaic power station system to cut off the arc generated by
direct current and avoid the occurrence of dangerous accidents

DC L7 BREAKER

DC Fuse

DC SPD

Certifications

We are factory

SENTE New Energy(Mday solar)

is a trusted manufacturer of protective components for photovoltaic systems across the globe. Our experience of working in the electrical industry for more than 11 years allows us to create solar DC components that comply with the latest DC standards. Through our focus on solar DC protection design, production, and marketing, we can bring brand-building PV protection solutions.

Independent production of accessories

All accessories of SENTE are independently produced, including shell, copper parts and varistor chips.Therefore, the quality and production cycle of each order can be fully guaranteed.

Injection Molding Workshop install Automatic Production Power Coating

Own test laboratory

we have testing equipment such as 10/350μs 40KA and 8/20μs 120KA Simulated lightning test equipment, High voltage TOV and low voltage TOV.If necessary, we can provide the parameters of each test for customers' reference.
