Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DX85
-
Voltage:
-
customized
-
Power (kW):
-
30
-
Weight:
-
8500KGS
-
Certification:
-
CE/ISO, ISO 9001
-
Machine Type:
-
Automatic
-
Product name:
-
Hard pvc extruder
-
Power:
-
customized
-
Screw material:
-
38CrMoALA
-
Screw diameter:
-
65mm
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
25:1
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DX85
-
Voltage:
-
customized
-
Power (kW):
-
30
-
Weight:
-
8500KGS
-
Certification:
-
CE/ISO, ISO 9001
-
Machine Type:
-
Automatic
-
Product name:
-
Hard pvc extruder
-
Power:
-
customized
-
Screw material:
-
38CrMoALA
-
Screw diameter:
-
65mm

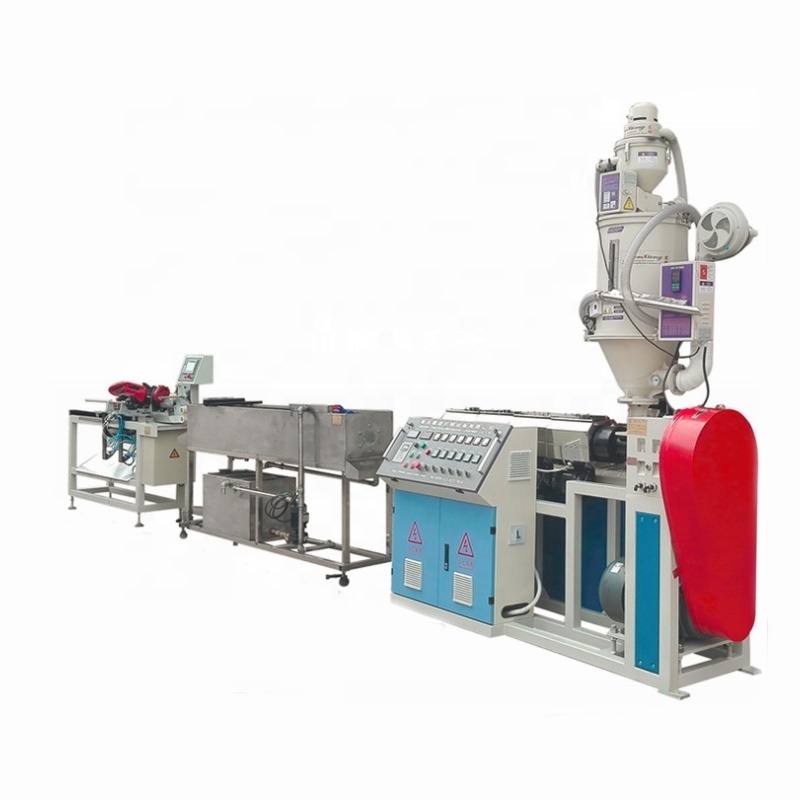

This Hard PVC profile extrusion line is composed of:
(1) DX-85 single screw extruder……………................................………...1set
(2) Die and mould………………………………………….................…...
(3) Cooling tank………………………...................………….............…...1 set
(4) Cutting machine…………………..………………....……...……..…...1 set
(1) DX85 single screw extruder
Screw diameter: 65mm
Screw valid length :1620mm
L/D: 25:1
Screw rotation speed: 1-34.7rpm
Screw material: 38CrMoALA
Main electric components of DX-85 extruder:
|
Items |
Brand |
Number |
Origin |
|
Frequency converter |
Danfoss |
1 |
Hangzhou |
|
Contactor |
SIEMENS |
8 |
Suzhou |
|
Temperature controller |
HUIBANG |
5 |
Changzhou |
|
Current meter |
CHINT |
6 |
Zhejiang China |
|
Volt meter |
CHINT |
1 |
Zhejiang China |
|
Overload circuit breaker |
CHINT |
1 |
Zhejiang China |
(2) Die and mould
The moulds are designed as drawing of the buyer.
(3) Cooling tank 1 set
-Valid length: 2000 mm
-Water tank material: stainless steel
-center height: 890-1000mm
(4) Cutting machine 1 set
|
Motor power |
1.85KW |
|
Clamping form |
Pneumatic |
|
alloy saw |
250mm |
|
Rotary encoder |
Our advantages
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer and have our own factory.
2. Q: Can you customize the product according to my requirements?
A: Yes, we have professional technical team and rich experience in this field, which allow us to provide special service to meet the requirements of different customers.
