Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Dimension(L*W*H):
-
109*62*105mm
-
Weight:
-
98 KG
-
Working Temperature Range:
-
-40 - 40 ℃
-
Core Components:
-
Fan Motor
-
Product name:
-
Waste Oil Heater/ hot air generator
-
Model:
-
KVH600
-
Oil Consumption:
-
2-3 Liter per hour
-
Output Power:
-
14-40Kw
-
Output Heat:
-
120 000Btu/h
-
Output Air:
-
2700cbm/h
-
Reference Heating Area:
-
200sq.m
-
Working Pressure:
-
0.02-0.05bar
-
Color:
-
grey or green
-
Max temperature:
-
100C
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Waste Oil, Diesel Oil
-
Voltage:
-
220v or 110v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Dimension(L*W*H):
-
109*62*105mm
-
Weight:
-
98 KG
-
Working Temperature Range:
-
-40 - 40 ℃
-
Core Components:
-
Fan Motor
-
Product name:
-
Waste Oil Heater/ hot air generator
-
Model:
-
KVH600
-
Oil Consumption:
-
2-3 Liter per hour
-
Output Power:
-
14-40Kw
-
Output Heat:
-
120 000Btu/h
-
Output Air:
-
2700cbm/h
-
Reference Heating Area:
-
200sq.m
-
Working Pressure:
-
0.02-0.05bar
-
Color:
-
grey or green
-
Max temperature:
-
100C
Picture & Parameter
Grey Color Option
Product Feature

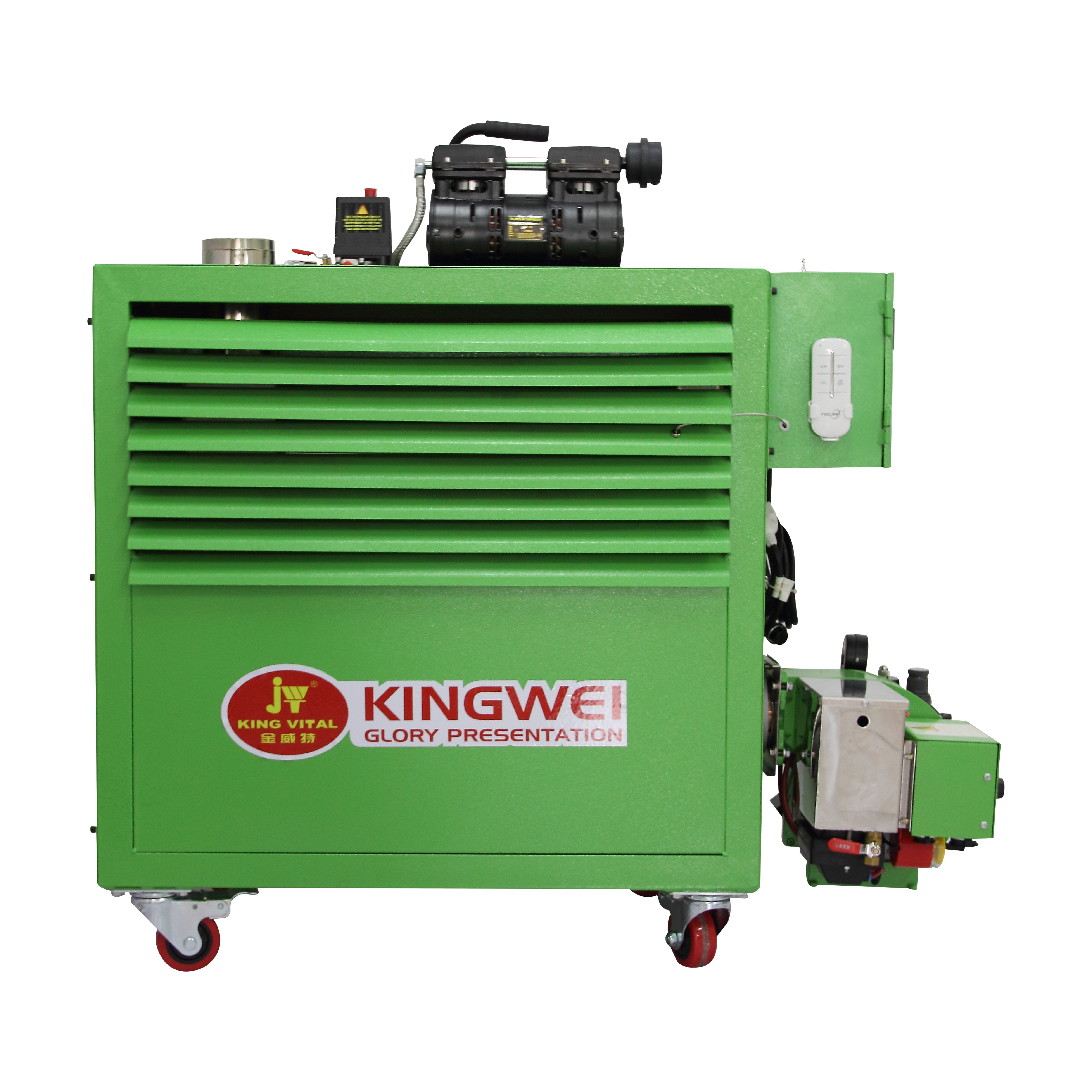

Model KVH600 is our new market product. It is 120 000Btu, portable, very popular for a private garage, personal space.
KVH600 is Integrated, high heat efficiency, with low maintenance cost.
Assembly-
1. KVH600's burner can run on all kinds of waste oil
with or without Impurities,
as well as diesel.
2. KVH600's combustion chamber is made of 304 stainless steel.
3. KVH600 has been installed with a oil-free air compressor, the whole oil pump & filter system, you only need to connect with a socket, the heater will start to work.
Working-
1. Set the room temperature, t
he heater works fully automatically.
2. The working stage is readable.
3. If the heater is malfunction, there will come an alarm sound.
Fan Protection-
The fan not only blows out hot air to the environment, but it can also detect the combustion chamber's temperature- blows cold air inside to cool it down.
No Smoke-
1.The chimney connector is 100% sealed to guarantee no smoke leaks indoors.
2. With the right set, the outside smoke is
Invisible.
Low Smoke Temperature-
Unique flue construction allows smoke has a slower pass speed, which leads to less heat loss. The heater's current heat efficiency is around 90%.
Maintenance-
1. The combustion chamber is openable, easy to clean ash inside.
2. Quality warranty is for one year. We provide spare parts for a long time.
Work Stage
Application
You can put the waste oil heater indoors and outdoors, such as the garage, workshop, factory, poultry house, greenhouse, drying kiln, tunnel, stadium, mining, and snowmelt, warm airplane engine, etc.
Waste Oil Heater Catalog
|
Model
|
|
|
Size
|
109*62*90mm
|
|
Output Heat
|
120 000Btu/h
|
|
Output Power
|
40Kw
|
|
Oil Consumption
|
2-3 Liter/h
|
|
Hot Air Volume
|
2700cbm/h
|
|
Reference Heating Area
|
200sq.m
|
|
Classification
(Small/ medium/ large)
|
Small
|
|
Model
|
|
|
Heat Size
|
80*50*50cm
|
|
Output Heat
|
120 000Btu/h
|
|
Output Power
|
40Kw
|
|
Oil Consumption
|
2-3Liter/h
|
|
Hot Air Volume
|
2660cbm/h
|
|
Reference Heating Area
|
200sq.m
|
|
Classification
(Small/ medium/ large)
|
Small
|
|
Model
|
|
|
Size
|
120*71*(170~195)cm
|
|
Output Heat
|
120 000Btu/h
|
|
Output Power
|
40Kw
|
|
Oil Consumption
|
2-3 Liter/h
|
|
Hot Air Volume
|
2660cbm/h
|
|
Reference Heating Area
|
200sq.m
|
|
Classification(Small/ medium/ large)
|
Small
|
|
Model
|
|
|
Heater Size
|
110*55*55cm
|
|
Output Heat
|
200 000Btu/h
|
|
Output Power
|
60Kw
|
|
Oil Consumption
|
3 Liter/h
|
|
Hot Air Volume
|
12 000cbm/h
|
|
Reference Heating Area
|
200-600sq.m
|
|
Classification
(Small/ medium/ large)
|
medium
|
|
Model
|
|
|
Heater Size
|
95*56*174cm
|
|
Output Heat
|
400 000Btu/h
|
|
Output Power
|
120Kw
|
|
Oil Consumption
|
6-8Liter/h
|
|
Hot Air Volume
|
12 000cbm/h
|
|
Reference Heating Area
|
600-800sq.m
|
|
Classification
(small/ medium/ large)
|
Medium
|
|
Model
|
|
|
Heater Size
|
185*90*127cm
|
|
Output Heat
|
400 000Btu/h
|
|
Output Power
|
120Kw
|
|
Oil Consumption
|
6-8Liter/h
|
|
Hot Air Volume
|
12 000cbm/h
|
|
Reference Heating Area
|
600-800sq.m
|
|
Classification
(Small/ Medium/ Large)
|
Medium
|
|
Model
|
|
|
Heater Size
|
195x80x180cm
|
|
Output Heat
|
400 000Btu/h
|
|
Output Power
|
120Kw
|
|
Oil Consumption
|
6-8Liter/h
|
|
Hot Air Volume
|
120 000cbm/h
|
|
Reference Heating Area
|
800-1000sq.m
|
|
Classification
(Small/ medium/ large)
|
Medium
|
|
Model
|
|
|
Heater Size
|
226*94*160cm
|
|
Output Heat
|
800 000Btu
|
|
Output Power
|
230Kw
|
|
Oil Consumption
|
12-15Liter/h
|
|
Hot Air Volume
|
15 000cbm/h
|
|
Reference Heating Area
|
1000-1600sq.m
|
|
Classification
(Small/ medium/ large)
|
Large
|
