* This Fan Can Be Used As Smoke Fan
* Working In High Temperature Environment
* Full Mold, Aluminum Alloy Structure
* Most Advanced Motor Cooling Of Blower In Its Class
* Direct Drive And Belt Drive Are Available
* Anti-explored Type Is Available
* UL705 Test Grant
* ISO9001: 2018 Controllable Standard
* The Highest Working Environment Temperature Is 320F Improve The Configuration, The Maximum Working Environment Temperature Can
Reach To 572F.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CKS FAN
-
Model Number:
-
RCU-A/B-18HBS-C-K-AL
-
Voltage:
-
115/208-230v,50-60Hz
-
Product Name:
-
Upblast Roof Fan
-
Motor:
-
AC single phase
-
Impeller Dia:
-
20inch
-
Application:
-
Kitchen; Restaurant; Commercial Ventilation
-
Impeller:
-
Aluminum Alloy
-
Driven Type:
-
Belt Drive
Quick Details
-
Applicable Industries:
-
Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CKS FAN
-
Model Number:
-
RCU-A/B-18HBS-C-K-AL
-
Voltage:
-
115/208-230v,50-60Hz
-
Product Name:
-
Upblast Roof Fan
-
Motor:
-
AC single phase
-
Impeller Dia:
-
20inch
-
Application:
-
Kitchen; Restaurant; Commercial Ventilation
-
Impeller:
-
Aluminum Alloy
-
Driven Type:
-
Belt Drive
Product Description

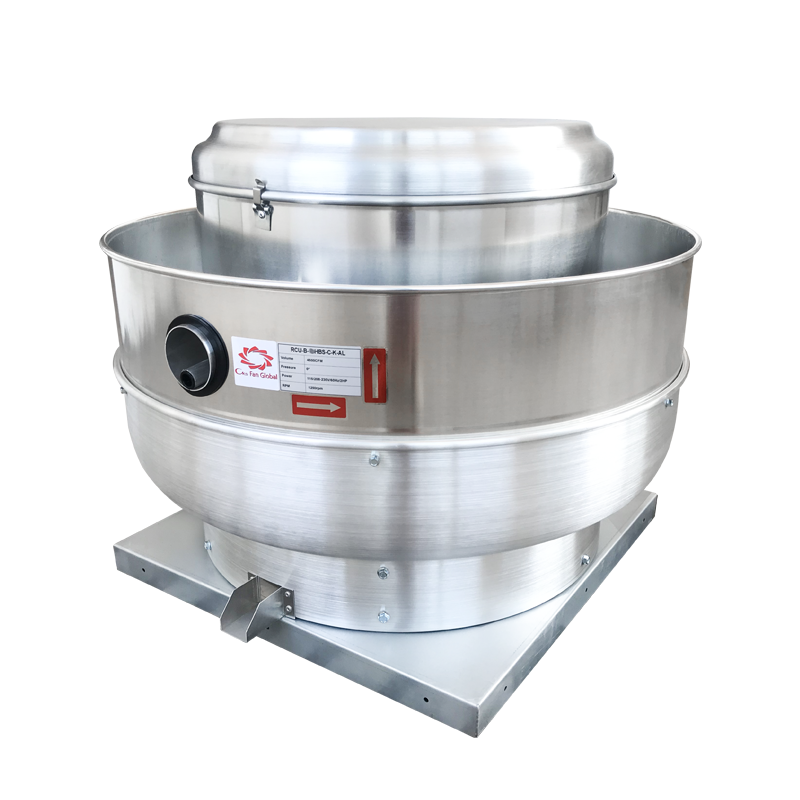

Upblast exhaust fans, also called Upblast roof ventilators, are designed for commercial cooking ventilation systems that exhaust smoke and grease.
Wide range of application
* Factory Exhaust
* Restaurant Grease Exhaust
* Restaurant Grease Exhaust
* Smoke Fan
* Agricultural Area
* Warehouse Ventilation .
* Warehouse Ventilation .
Main Features with Upblast Roof Fan
Structure Feature
with Upblast Roof Fan
* Made In Aluminum Alloy, Cut By Laser To Ensure High-precision Mold Line.
* The Base Is Aluminum Alloy For One-time Stretch.
* Driven Cavity Cover Adopt Galvanized Material, Can Open With Hands, Convenient To Daily Cleaning Maintenance.
* Different Ways Of Motor With Different Transmission Need To Select Different Motor Bracket.
* Impeller Material：Carbon Steel, Stainless Steel And Aluminum Alloy （A Different Work Environment Needs To Adopt Different Materials）.
* The Surface Of The Impeller Adopts Industrial Spraying.
* Impeller Balance Test Grades Are In Strict Accordance With The G4.0 ISO1940, And Meet Its Requirements.
* The Base Is Aluminum Alloy For One-time Stretch.
* Driven Cavity Cover Adopt Galvanized Material, Can Open With Hands, Convenient To Daily Cleaning Maintenance.
* Different Ways Of Motor With Different Transmission Need To Select Different Motor Bracket.
* Impeller Material：Carbon Steel, Stainless Steel And Aluminum Alloy （A Different Work Environment Needs To Adopt Different Materials）.
* The Surface Of The Impeller Adopts Industrial Spraying.
* Impeller Balance Test Grades Are In Strict Accordance With The G4.0 ISO1940, And Meet Its Requirements.
Specification
|
Product Name
|
Upblast Roof Fan
|
|
Model
|
RCU-A/B-18HBS-C-K-AL
|
|
Applicable Industries
|
Restaurant, Manufacturing Plant, Hotel, Warehouse
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
CKS Fan
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Online support
|
|
Driven Type
|
Belt drive
|
|
AC Motor 1∅
|
115/208V-230V,60Hz
|
|
Power & Fan Speed
|
2.0HP 1250RPM
|
|
Maximum Flow Value
|
7400CFM
|
|
Impeller Dia
|
20inch
|
Detail Display
