Quick Details
-
Model Number:
-
AM-RS-04F
-
Warranty:
-
2-Year
-
Type:
-
smart Motion sensor
-
Power:
-
35W Load
-
Sensing Range:
-
6-8m
-
Name:
-
microwave motion sensor switch
-
Rated Load Power:
-
5-35W
-
Sensor Mode:
-
on/off
-
Sensor Distance:
-
6-8m
-
Material:
-
Plastic
-
Input/Output Voltage:
-
185-265Vac
-
light sensor:
-
10-20lux
-
Load Types:
-
LED Lamps/fluorescent/Incandescent lamps
-
Features:
-
Auto on off lighting control
-
Application:
-
Corridor, Staircase, Hallway,
-
Certification:
-
No certificate
Quick Details
-
Voltage:
-
185-265V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
AM-RS-04F
-
Warranty:
-
2-Year
-
Type:
-
smart Motion sensor
-
Power:
-
35W Load
-
Sensing Range:
-
6-8m
-
Name:
-
microwave motion sensor switch
-
Rated Load Power:
-
5-35W
-
Sensor Mode:
-
on/off
-
Sensor Distance:
-
6-8m
-
Material:
-
Plastic
-
Input/Output Voltage:
-
185-265Vac
-
light sensor:
-
10-20lux
-
Load Types:
-
LED Lamps/fluorescent/Incandescent lamps
-
Features:
-
Auto on off lighting control
-
Application:
-
Corridor, Staircase, Hallway,
-
Certification:
-
No certificate

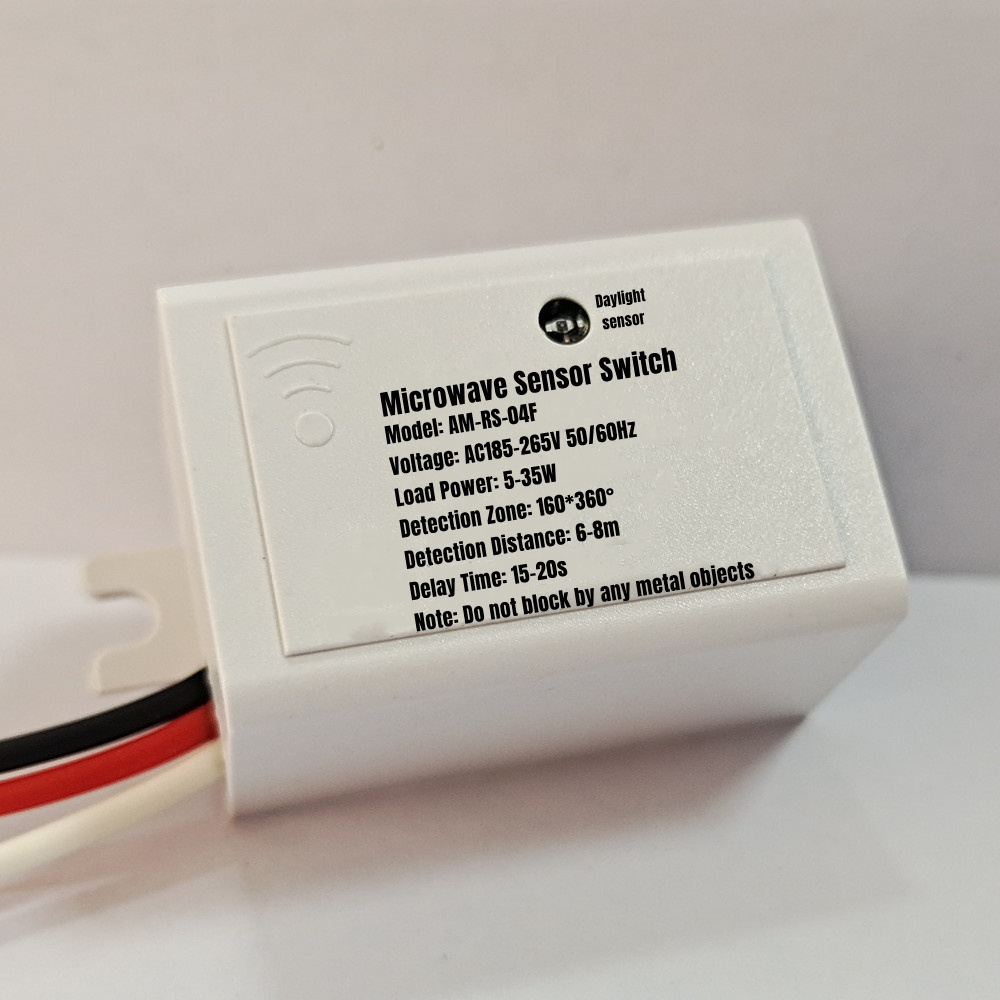

35W Smart Microwave Motion Sensor Light Switch with Built in microwave motion sensor and daylight sensor
Microwave Motion Sensor Switch Feature
- This Microwave Sensor Switch can be used with energy saving lamp, incandescent lamp, fluorescent lamp and LED lamp.
- The motion sensor light switch will operate through glass, plastic and wood, and should be adjusted at installation to achieve the required sensitivity.
- Indoor use, ceiling and wall mounted, Easy to install.
- It can retrofit 2-3 normal lamps to sensor lighting.
- Suitable for halls, corridors, stairwells, and similar locations.
- The sensor is more sensitive to motion across the front of the sensor than to motion toward the sensor
For more information, pls contact us for samples
| Input Characteristics | |
| Model No. | AM-RS-04F |
| Mains voltage | 185-265V |
| Stand-by power | <0.5W |
| Load Rating | 35W |
| Sensor Data | |
| Sensor principle | HF Microwave |
| Operation Frequency | 5.8GHz |
| Transmission power | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m |
| Detection angle | 16° ~360° |
| Hold time | 15+/-5s (can be customized) |
| Environment | |
| Operation Temperature(Ta) | -20~40°c |
| IP Rating | IP20 |
