Quick Details
-
Power (kW):
-
12kw
-
Product name:
-
wood block pallet machine
-
Application:
-
Wood Process
-
Raw material:
-
wood shavings, sawdust,wood chips
-
Capacity:
-
3-5m3/24h
-
Size:
-
4.8*0.58*1.42m
-
Quality guarantee:
-
one year
-
Usage:
-
wood pallet machine for sawdust
-
Function:
-
compressed wood pallet machine
-
Block size:
-
for your needs
-
Name:
-
wood block machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VOS wood block making machine
-
Weight (KG):
-
1100 KG
-
Power (kW):
-
12kw
-
Product name:
-
wood block pallet machine
-
Application:
-
Wood Process
-
Raw material:
-
wood shavings, sawdust,wood chips
-
Capacity:
-
3-5m3/24h
-
Size:
-
4.8*0.58*1.42m
-
Quality guarantee:
-
one year
-
Usage:
-
wood pallet machine for sawdust
-
Function:
-
compressed wood pallet machine
-
Block size:
-
for your needs
-
Name:
-
wood block machine

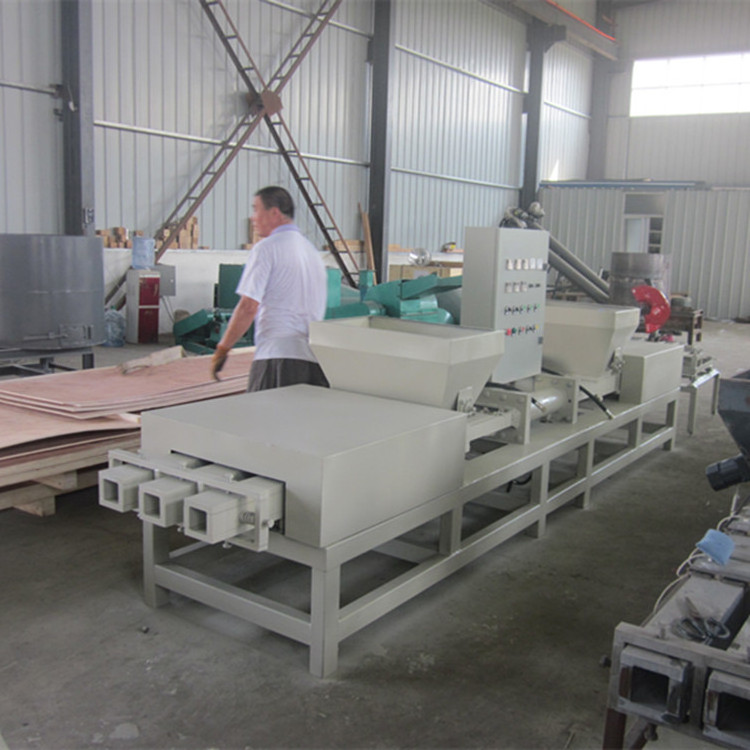

Automatic wood sawdust pallet block compressed making machine/wood feet briquette hot press nailing machine
Wood pallet block making machine used for making the wood pallet used for the package case wood feet or the wood board use. materials can wood sawdust and wood shavings also wood chips, with glue to mix them together,
hot press machine is one of the key part of the production line, including the dryer, the gluing machine, grinder and conveyor, manual or automatic cutting machine or saw. The wood block can be with or without hole in center.
Our wood pallet feet block making machine, mainly use shavings, wood sawdust and other waste materials as raw material, mixing with the glue, through the processes of dying, sizing and hot press heating, the final wood feet blocks has the smooth surface and good water resistance.the block will not crack even in water for 48 hours,and contact nail very well.
For this wood sawdust block making machine, final block size can be customized according to customers needs, almost within 145*145mm is ok, and for the heads, we have two heads, four heads model and 6 heads model for different customers needs.
|
Model |
Power |
Capacity |
Size |
Weight |
|
75*75 |
12kw |
2-4m3/24h |
4.8*0.58*1.42m |
1050kg |
|
80*80 |
12kw |
3-4m3/24h |
4.8*0.58*1.42m |
1100kg |
|
80*90 |
15kw |
3-5m3/24h |
4.8*0.58*1.42m |
1150kg |
|
90*90 |
15kw |
3-5m3/24h |
4.8*0.58*1.42m |
1200kg |
|
100*100 |
16kw |
3-5m3/24h |
4.8*0.58*1.42m |
1300kg |
|
100*120 |
18kw |
3-5m3/24h |
4.8*0.58*1.42m |
1350kg |
|
120*120 |
18kw |
3-5m3/24h |
4.8*0.58*1.42m |
1400kg |
|
120*140 |
19kw |
3-5m3/24h |
4.8*0.58*1.42m |
1450kg |
|
140*145 |
19kw |
3-5m3/24h |
4.8*0.58*1.42m |
1500kg |
two heads model
four heads model
six heads model
for machine final products is the block, block length is for customers need to cut themselves
The processing line:
and for customers needs, we also make the wood pallet making machine production line to deal with the wood sawdust materials into the wood block.
Crushing the raw material-----Drying-----Mix them with glue-----press wood pallet block machine----- cut the long block according to your needs---- construct the block and the wood board into wood pallet.
Our service for the wood sawdust block making machine
1.for the wood pallet machine, the moulds size can be customized according to need;
2.can send the operate introduction book to customers;
3.can help deal with any of your question during use the machine.
Packaging: we will use standard export wooden case package or as client's requirement.
Shipping: we will make the delivery of the goods within 7-15 working days after the payment.
Compant information
Zhengzhou VOS Machinery Equipment Co., Ltd. is a professional manufacturer of various models wood sawdust block making machine, we have high technical workers and responsible workers to promise all machines send to customers with high quality.
FAQ for our wood sawdust block making machine
1.Q: what kind of the wood block pallet machine do you have?
A: we have the wood block pallet machine with 2 heads, 4 heads, 6 heads for different customers need, and also for the block size square model or other shape with hole or without, all can customized for your needs.
2.Q:doed the machine has saw work together to but the pallet?
A:yes. of course. there are a saw at the machine outlet to cut the block for customers needs, and also if customers need automatic working saw, we also have machines choose for you.
