- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MEIDE
-
Model Number:
-
ASTM F136 TC6 A-4 BT18GR1 Gr2 GR3
-
Grade:
-
Titanium
-
weight:
-
D*D*3.542*L/1000000
-
Product name:
-
Titanium Alloy Rod/Bar
-
Keyword:
-
Titanium Round Bar/Rod
-
MOQ:
-
10 KG
-
Standard:
-
ASTM B348 ASTM F136
-
Material:
-
Titanium Gr1 Gr2 Gr5 Gr9 Gr10 Gr12
-
Processing:
-
hot rolled,cold rolled,forge,cold drawn
-
Surface:
-
Polished
-
diameter Tolerance1:
-
h6~h13
-
shape:
-
Round, flat, square, hexagonal
-
Advantage:
-
Corrosion Resistance
Quick Details
-
Application:
-
Industry, construction industry, medical industry, etc
-
Length:
-
MAX:6000mm
-
Technique:
-
Rolled
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MEIDE
-
Model Number:
-
ASTM F136 TC6 A-4 BT18GR1 Gr2 GR3
-
Grade:
-
Titanium
-
weight:
-
D*D*3.542*L/1000000
-
Product name:
-
Titanium Alloy Rod/Bar
-
Keyword:
-
Titanium Round Bar/Rod
-
MOQ:
-
10 KG
-
Standard:
-
ASTM B348 ASTM F136
-
Material:
-
Titanium Gr1 Gr2 Gr5 Gr9 Gr10 Gr12
-
Processing:
-
hot rolled,cold rolled,forge,cold drawn
-
Surface:
-
Polished
-
diameter Tolerance1:
-
h6~h13
-
shape:
-
Round, flat, square, hexagonal
-
Advantage:
-
Corrosion Resistance

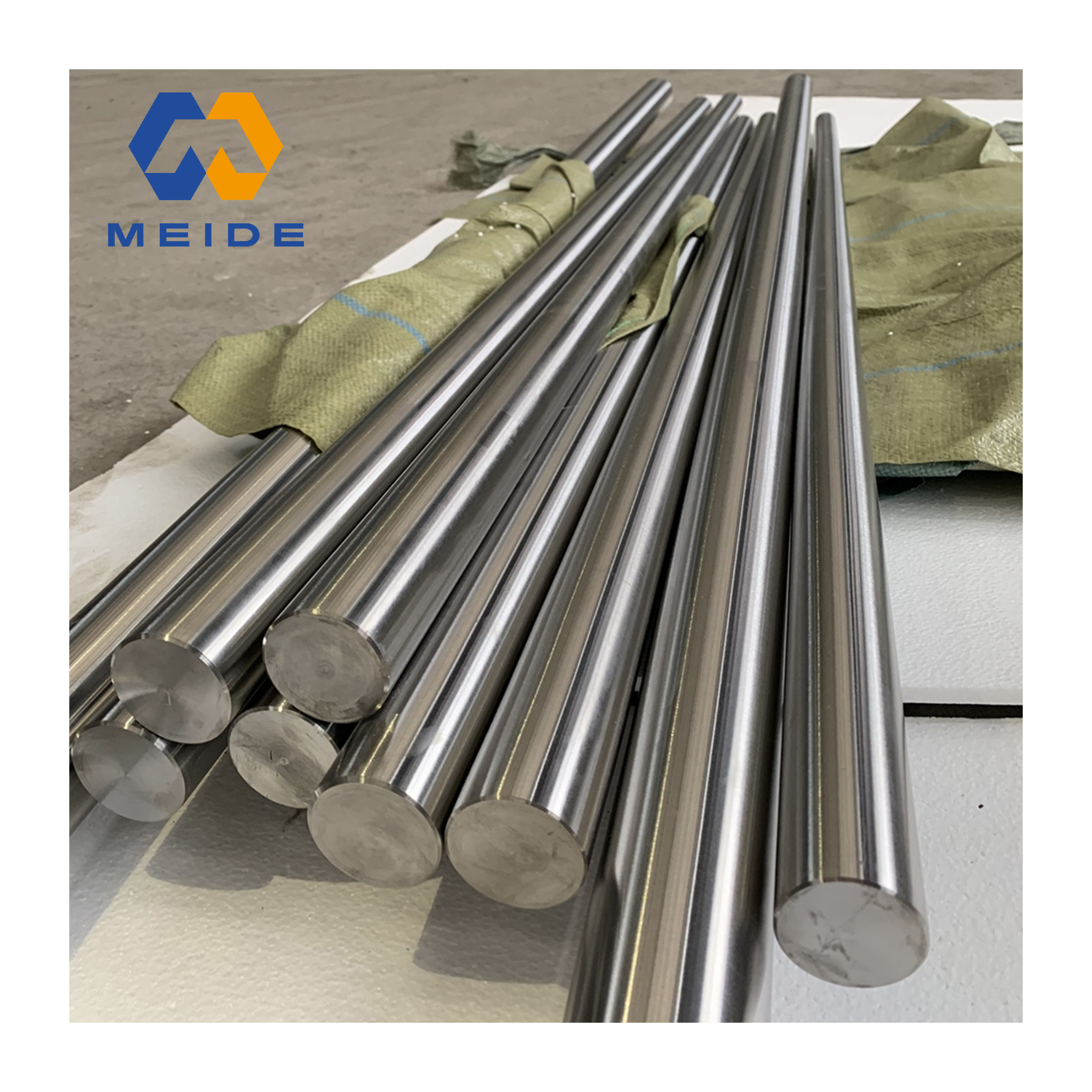

Product Introduction
Titanium rod manufacturing process: hot forging-hot rolling - Grinding machine tool.
Surface : Black surface, Rolled surface , Polished surface .
Orders of certain requirement with drawing available.
|
Product name
|
Pure Titanium bar/Pure Titanium rod/Titanium alloy bar/Tianium alloy rod
|
|
Standard
|
ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc
|
|
Titanium Type
|
Commercially Pure(CP) / Titanium alloy
|
|
Grade
|
Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333
BT1-00 BT1-0 BT1-2 |
|
Diameter
|
3-350mm
|
|
Length
|
Max6000mm
|
|
Technique
|
Forging ,Machining
|
|
Surface
|
Acid surface or polishing, sand blasted surface
|
|
Shape
|
Round, flat, square, hexagonal
|
|
Application
|
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.
|
Grade and Chemical Composition (%) :
|
Grade
|
N(≤)
|
C(≤)
|
H(≤)
|
Fe(≤)
|
O(≤)
|
Al(≤)
|
V(≤)
|
Ni(≤)
|
Ti
|
|
GR1
|
0.03
|
0.08
|
0.015
|
0.2
|
0.18
|
/
|
/
|
/
|
bal
|
|
GR2
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
bal
|
|
GR3
|
0.05
|
0.08
|
0.015
|
0.3
|
0.35
|
/
|
/
|
/
|
bal
|
|
GR4
|
0.05
|
0.08
|
0.015
|
0.2
|
0.4
|
/
|
/
|
/
|
bal
|
|
GR5
|
0.05
|
0.08
|
0.015
|
0.4
|
0.2
|
5.5~6.75
|
3.5~4.5
|
/
|
bal
|
|
GR7
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
/
|
bal
|
|
GR9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
bal
|
|
GR12
|
0.03
|
0.08
|
0.015
|
0.3
|
0.25
|
/
|
/
|
0.6~0.9
|
bal
|
|
GR23
|
0.05
|
0.08
|
0.012
|
0.25
|
0.13
|
5.5~6.5
|
3.5~4.5
|
|
bal
|
Mechanical property
|
Grade
|
Tensil strength(≥)
|
|
Yeild strength(≥))
|
|
Elongation(≥)%)
|
||
|
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|
||
|
GR1
|
35
|
240
|
20
|
138
|
24
|
||
|
GR2
|
50
|
345
|
40
|
275
|
20
|
||
|
GR3
|
65
|
450
|
55
|
380
|
18
|
||
|
GR4
|
80
|
550
|
70
|
483
|
15
|
||
|
GR5
|
130
|
895
|
120
|
828
|
10
|
||
|
GR7
|
50
|
345
|
40
|
275
|
20
|
||
|
GR9
|
90
|
620
|
70
|
483
|
15
|
||
|
GR12
|
70
|
483
|
20
|
345
|
18
|
||
|
GR23
|
120
|
828
|
110
|
760
|
10
|
||
Product Catalog
|
1.Round bar/rod
|
|
1)Hot rolled black bar: (5-400)x6000mm or according to your requirement.
|
|
2)Acid round bar: (5-400)x6000mm or according to your requirement.
|
|
3)Cold drawn bright bar: (1-20)x6000mm or according to your requirement.
|
|
4)Polishing round bar: (5-400)x6000mm or according to your requests.
|
|
2.Angle bar/rod
|
|
1)Hot rolled angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests
|
|
2)Acid angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests.
|
|
3)Cold drawn angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests.
|
|
3. Flat bar/rod
|
|
1)Hot rolled flat bar: (3-30)*(10-200mm)*6000mm or according to your requests.
|
|
2)Cold drawn flat bar: (3-30)*(10-200mm)*6000mm or according to your requests.
|
|
4. Channel bar/rod
|
|
1)Hot rolled channel bar: (5-100)x6000mm or according to your requests.
|
|
2)Acid channel bar: (5-100)x6000mm or according to your requests.
|
|
3)Cold drawn channel bar: (1-20)x6000mm or according to your requests
|
|
5.Hexagon bar/rod
|
|
1)Hot rolled hexagon bar: (5-100)x6000mm or according to your requests.
|
|
2) Acid hexagon bar: (5-100)x6000mm or according to your requests.
|
|
3)Cold drawn hexagon bar: (1-20)x6000mm or according to your requests t.
|
|
4)Polishing hexagon bar: (5-100)x6000mm or according to your requests.
|
|
6. H Steel bar/rod
|
|
1)Hot rolled H bar: (5-100)x6000mm or according to your requests.
|
|
2)Acid H bar: (5-100)x6000mm or according to your requests.
|
|
3)Cold drawn H bar: (1-20)x6000mm or according to your requests.
|
|
7. Square bar/rod
|
|
1)Hot rolled black bar: (5*5-400*400)x6000mm or according to your requests.
|
|
2)Acid square bar: (5*5-400*400)x6000mm or according to your requests.
|
|
3)Cold drawn square bar: (1*1-20*20)x6000mm or according to your requests.
|
|
4)Polishing square bar: (5*5-400*400)x6000mm or according to your requests
|
Product application
A
erospace Applications
Due to their high tensile strength to density ratio, high corrosion resistance, and ability to withstand moderately high
temperatures without creeping, titanium alloys are used in aircraft, armor plating, naval ships, spacecraft, and missiles.
Industrial Applications
Titanium is used in engine applications such as rotors, compressor blades, hydraulic system components and nacelles. Titanium 6AL-4V alloy accounts for almost 50% of all alloys used in aircraft applications.
Consumer and Architectural Applications
Titanium metal is used in automotive applications, particularly in automobile or motorcycle racing, where weight reduction is critical while maintaining high strength and rigidity.
Medical Applications
Due to their high tensile strength to density ratio, high corrosion resistance, and ability to withstand moderately high
temperatures without creeping, titanium alloys are used in aircraft, armor plating, naval ships, spacecraft, and missiles.
Industrial Applications
Titanium is used in engine applications such as rotors, compressor blades, hydraulic system components and nacelles. Titanium 6AL-4V alloy accounts for almost 50% of all alloys used in aircraft applications.
Consumer and Architectural Applications
Titanium metal is used in automotive applications, particularly in automobile or motorcycle racing, where weight reduction is critical while maintaining high strength and rigidity.
Medical Applications
Titanium has the inherent property to osseointegrate, enabling use in dental implants that can remain in place for over 30 years.
FAQ
1.Are you a manufacturer or a trader?
We're a manufacturer with more than years of professional production experience.
2.Can you accept OEM?
Yes, OEM is acceptable. Just pls provide us with the drawing or sample, we will production totally according to your requirements.
3.Can you provide us with the design drawing?
Yeah, of course, we will provide you with the drawing after you paid or prepaid.
4.Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
5.What kind of your packaging?
Neutral plywood or wooden box packaging or according to customer's requirements.
6.How long is your delivery time?
Normally 30days after payment, and we promise we will deliver as soon as we can.
7.How can we get your price ?
1. We need below information to quote for you:
1). Product Name
2). Standard
3). Material Grade (Chemical Composition)
4). Dimension
5). Quantity
6). The Drawing for Special Parts
We're a manufacturer with more than years of professional production experience.
2.Can you accept OEM?
Yes, OEM is acceptable. Just pls provide us with the drawing or sample, we will production totally according to your requirements.
3.Can you provide us with the design drawing?
Yeah, of course, we will provide you with the drawing after you paid or prepaid.
4.Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
5.What kind of your packaging?
Neutral plywood or wooden box packaging or according to customer's requirements.
6.How long is your delivery time?
Normally 30days after payment, and we promise we will deliver as soon as we can.
7.How can we get your price ?
1. We need below information to quote for you:
1). Product Name
2). Standard
3). Material Grade (Chemical Composition)
4). Dimension
5). Quantity
6). The Drawing for Special Parts
