Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Grentsun
-
Weight (KG):
-
45 KG
-
Core Components:
-
Laser source, Galvanometer, Lens, Mother board
-
Product name:
-
30 watt fiber laser marking machine fiber laser printer for bearing
-
marking speed:
-
≤7000mm/s
-
laser power:
-
20w
-
Applicable Material:
-
Metal Plastic
-
frequency:
-
20KHZ-80KHZ
-
marking area:
-
110mmx110mm
-
cooling system:
-
air cooling
-
Laser wavelength:
-
1064nm
-
Certification:
-
CE ISO
Quick Details
-
Working Accuracy:
-
0.005mm
-
Graphic Format Supported:
-
AI, BMP, DXF, DXP, PLT, Dst, Dwg, LAS
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Grentsun
-
Weight (KG):
-
45 KG
-
Core Components:
-
Laser source, Galvanometer, Lens, Mother board
-
Product name:
-
30 watt fiber laser marking machine fiber laser printer for bearing
-
marking speed:
-
≤7000mm/s
-
laser power:
-
20w
-
Applicable Material:
-
Metal Plastic
-
frequency:
-
20KHZ-80KHZ
-
marking area:
-
110mmx110mm
-
cooling system:
-
air cooling
-
Laser wavelength:
-
1064nm
-
Certification:
-
CE ISO

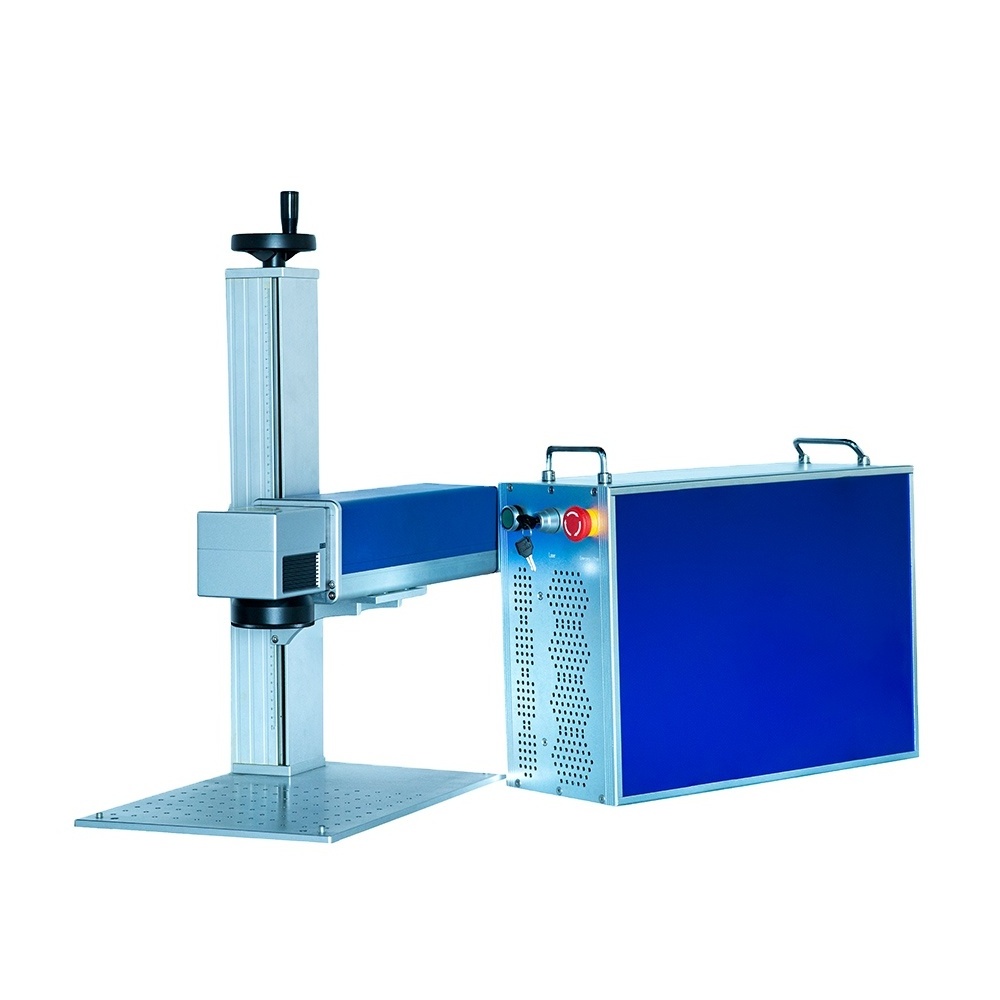

Product Picture
Product Paramenters
|
Name of Series
|
GSL-F series
|
|
|
|
|||
|
Product Name
|
hand held pet laser printer 30 watt fiber laser marking machine fiber laser printer for bearing knife metal tools
|
|
|
|
|||
|
Laser Power
|
20W/30W/50W
|
|
|
|
|||
|
Laser Wavelength
|
1064nm
|
|
|
|
|||
|
Laser Beam Quality
|
M2:1.8
|
|
|
|
|||
|
Repeat Frequency
|
20KHz-80KHz
|
|
|
|
|||
|
Repeat Positioning Accuracy
|
0.005mm
|
|
|
|
|||
|
Min.Linear Width
|
0.01mm
|
|
|
|
|||
|
Marking Depth
|
0.01-5mm(varies with material)
|
|
|
|
|||
|
Max.Marking Speed
|
7000mm/s
|
|
|
|
|||
|
Standard Marking Area
|
175*175mm
|
|
|
|
|||
|
Optional Marking Area
|
110*110mm/200*200mm/300*300mm/400*400mm
|
|
|
|
|||
|
Ranted Power
|
<500W
|
|
|
|
|||
|
Rated Voltage
|
220V/50Hz/15A & 110V/50Hz/15A
|
|
|
|
|||
|
Cooling
|
Air Cooling
|
|
|
|
|||
|
Lifetime of source
|
100,000hrs
|
|
|
|
|||
|
Warranty
|
1 year for complete machine,2 year for core parts
|
|
|
|
|||
|
Gross Weight
|
45kg
|
|
|
|
|||
|
Dimension of Package
|
700*470*470mm
|
|
|
|
|||
|
Space Needed
|
600*400*400mm
|
|
|
|
|||
