Quick Details
-
Brand Name:
-
TMG
-
Model Number:
-
TMG-DT3040-PRO
-
Model:
-
TMG-DT3040-PRO
-
Product Name:
-
Dual truss shelter
-
Overall assembled size:
-
W9.15 x L12 x H6 (m)
-
Fabric Cover:
-
PVC and PE for choosing
-
Usage:
-
Storage goods
-
Feature:
-
Durable
-
Size:
-
Customized Size
-
Truss tubes:
-
48mm
-
Purlin tubes:
-
48mm
Quick Details
-
Pressure Treated Wood Type:
-
Heat Treated
-
Sail Finishing:
-
Pvc Coated
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
TMG
-
Model Number:
-
TMG-DT3040-PRO
-
Model:
-
TMG-DT3040-PRO
-
Product Name:
-
Dual truss shelter
-
Overall assembled size:
-
W9.15 x L12 x H6 (m)
-
Fabric Cover:
-
PVC and PE for choosing
-
Usage:
-
Storage goods
-
Feature:
-
Durable
-
Size:
-
Customized Size
-
Truss tubes:
-
48mm
-
Purlin tubes:
-
48mm
Product Information

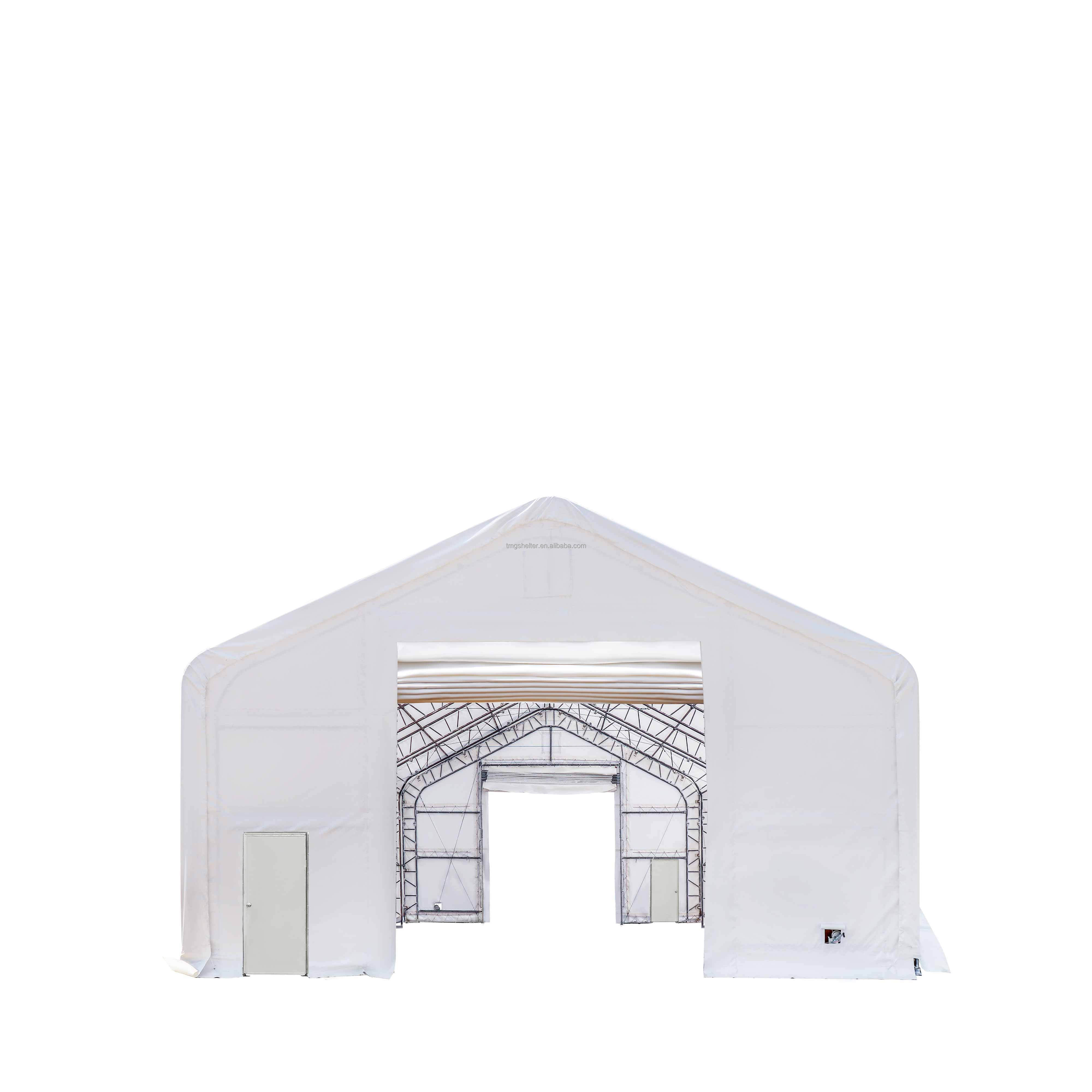

30' x 40' Pro Dual Truss Storage Shelter
Main Specifications：
Overall assembled size: W9.15 x L12 x H6 (m) / 30 x 40 x 20 (ft)
Width: 9.15 m / 30ft
Length: 12 m / 40 ft
Ridge Peak Height: 6 m /20 ft
Width: 9.15 m / 30ft
Length: 12 m / 40 ft
Ridge Peak Height: 6 m /20 ft
Peak clearance: 5.4m / 18 ft
Front and back door : W14 x H13 ft / 4.27 x 3.96 m
Steel sandwich man door: W36" x H78"
Shoulder height : 12 ft / 3.6 m
Arch space : 8'
Side wall: 3.6m
Snow load: 30PSF
Wind load: 75MPH
Product Function:
The TMG Industrial Pro Series 30ft x 40ft Pro Dual Truss 17oz PVC Storage Shelter provides shelter on construction sites, farms, equipment dealerships, auto shops, and more.Being relatively quick to build, and costing less than comparably sized buildings, this shelter is often used at construction sites as a sawing shed or for storing construction materials. Another common use is in the agricultural industry as a storage area for tractors and other machinery. Heavy-duty PVC fabric and a sturdy dual truss frame mean this shelter is built to stand up to the weather.
Product Feature:
1.Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment, and more
2.Solid bolted connection on all trusses for stability
3.Heavy-duty galvanized steel tubes on all trusses and purlins
4.Wide-open winch roll-up door on both ends
5.Steel sandwich side man door for entry convenience
6.Air vents on both ends
7.A combination of steel tube and cable quad tension system to reinforce stability
8.Heavy-duty base plates with pre-drilled holes
9.Solution to anchor the shelter: sleeve anchor bolts (included)
10.Commercial grade PVC fabric stands strong against tearing, leaking, and chemical corrosion
11.Fire retardant, UV protection, and water-proof
Advantages:
Low Cost compared with steel structure warehouse and prefabricated house. All weather suitable, year round applicable.100% waterproof, fire resistance,flame retardant and UV inhibitor.
Life Span:
more than 10 years.
This product can be easily installed and removed and can be used anywhere, anytime...
|
Product Name
|
30' x 40' Pro dual truss shelter
|
|
|
|
|||
|
Iten No.
|
DT3040 Pro
|
|
|
|
|||
|
Width
|
9.15m(30')
|
|
|
|
|||
|
Length
|
12.0m(40')
|
|
|
|
|||
|
Ridge Height
|
6.0m(20')
|
|
|
|
|||
|
Frame Material
|
Hot dip galvanized steel tube
|
|
|
|
|||
|
Fabric Material
|
Durable PVC and PE for choosing
|
|
|
|
|||
|
Fabric Feature
|
Waterproof , UV resistant, with self-cleaning property
|
|
|
|
|||
|
Roof style
|
Peak
|
|
|
|
|||
|
Loading in Container
|
8 units for 40ft container, 4 units for 20GP container
|
|
|
|
|||
|
Application
|
Equipment storage, sand storage, salt storage, warehousing and manufacturing wast and decontamination , industrial buildings, marine and storage buildings.
|
|
|
|
|||
|
Remark
|
Different lengths for your choice, 12m(40'), 18m(60'), 21m(70'), 24m(80')
|
|
|
|
|||
Installation Notes:
(1) Keep work area clean. Cluttered areas invite injuries.
(2)Keep children away. Be aware of personal safety.
(3) It is easy assembling if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4)Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during
hurricane.
(5)Clean off snow in time and do not allow snow to sit for extended periods of time.
(6)Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(2)Keep children away. Be aware of personal safety.
(3) It is easy assembling if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4)Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during
hurricane.
(5)Clean off snow in time and do not allow snow to sit for extended periods of time.
(6)Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
Our Service
Pre-Sales Service
*Inquiry and consulting support .
*Sample testing support.
*View our Factory.
*Sample testing support.
*View our Factory.
After-Sales Service
*The PE fabric could be used for 3 years. We supply for a 1 years' warranty.
*The PVC fabric could be used for 6 years. We supply for a 3 years' warranty.
*The Hot Dip Galvanized Frame could be used for 10 years. We supply for a 5 years' warranty.
*OEM Service, we supply for the Engineer's drawing and manuals and the part replacement.
*The PVC fabric could be used for 6 years. We supply for a 3 years' warranty.
*The Hot Dip Galvanized Frame could be used for 10 years. We supply for a 5 years' warranty.
*OEM Service, we supply for the Engineer's drawing and manuals and the part replacement.
Packing & Delivery
|
Packaging
|
|
|
|
|
|
|
|
Size
|
L2980 x W1140 x H910mm
|
|
|
Weight
|
1651KG
|
|
|
Detail
|
The normal package is metal box or pack it according to customers special request.
|
|
TMG INDUSTRIAL
FAQ
1. who are we?
We are based in Guangxi, China, start from 2019,sell to North America(30.00%),Northern Europe(20.00%),Western Europe(15.00%),Oceania(10.00%),Southern Europe(5.00%),Eastern Europe(4.00%),South America(3.00%),South Asia(3.00%),Southeast Asia(2.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
A: We have strictly quality control management in material purchasing, production, testing and final inspection. We will check the quality of each product to ensure that all the parts can be used normally when they reach your hands.
3. Can I add my logo on the product? Does there have MOQ limited when add the logo?
A: We could offer the OEM and ODM service, and put your logo on the product, and have no MOQ limited, but you should send us the Trademark authorization letter before producing.
4. why should you buy from us not from other suppliers?
The main focus at TMG has grown to be on outdoor storage structures including commercial fabric buildings, livestock sheds, and car shelters. Currently, Beiliu T M G has 143 employees, annual production capacity has reached 500 containers.
We are based in Guangxi, China, start from 2019,sell to North America(30.00%),Northern Europe(20.00%),Western Europe(15.00%),Oceania(10.00%),Southern Europe(5.00%),Eastern Europe(4.00%),South America(3.00%),South Asia(3.00%),Southeast Asia(2.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
A: We have strictly quality control management in material purchasing, production, testing and final inspection. We will check the quality of each product to ensure that all the parts can be used normally when they reach your hands.
3. Can I add my logo on the product? Does there have MOQ limited when add the logo?
A: We could offer the OEM and ODM service, and put your logo on the product, and have no MOQ limited, but you should send us the Trademark authorization letter before producing.
4. why should you buy from us not from other suppliers?
The main focus at TMG has grown to be on outdoor storage structures including commercial fabric buildings, livestock sheds, and car shelters. Currently, Beiliu T M G has 143 employees, annual production capacity has reached 500 containers.
5.
How to order?
A: 1) Please inform us the model with quantities and other requirements that you need. 2) We issue the Proforma Invoice to you
after confirming the price and other details.
3) We arrange the order production upon the receipt of confirmed PI and your deposit.
4) After the goods are ready to ship, we will inform you the shipment date and other information by email in time.
5) We will help to track your goods until you receive them safely.
after confirming the price and other details.
3) We arrange the order production upon the receipt of confirmed PI and your deposit.
4) After the goods are ready to ship, we will inform you the shipment date and other information by email in time.
5) We will help to track your goods until you receive them safely.
