Quick Details
-
Main structure:
-
Galvanized Light Steel Framing
-
Roof:
-
Asphalt Shingle or Metal Tile
-
Window:
-
PVC or Aluminum Windows
-
Life Span:
-
50 Years Plus
-
Style:
-

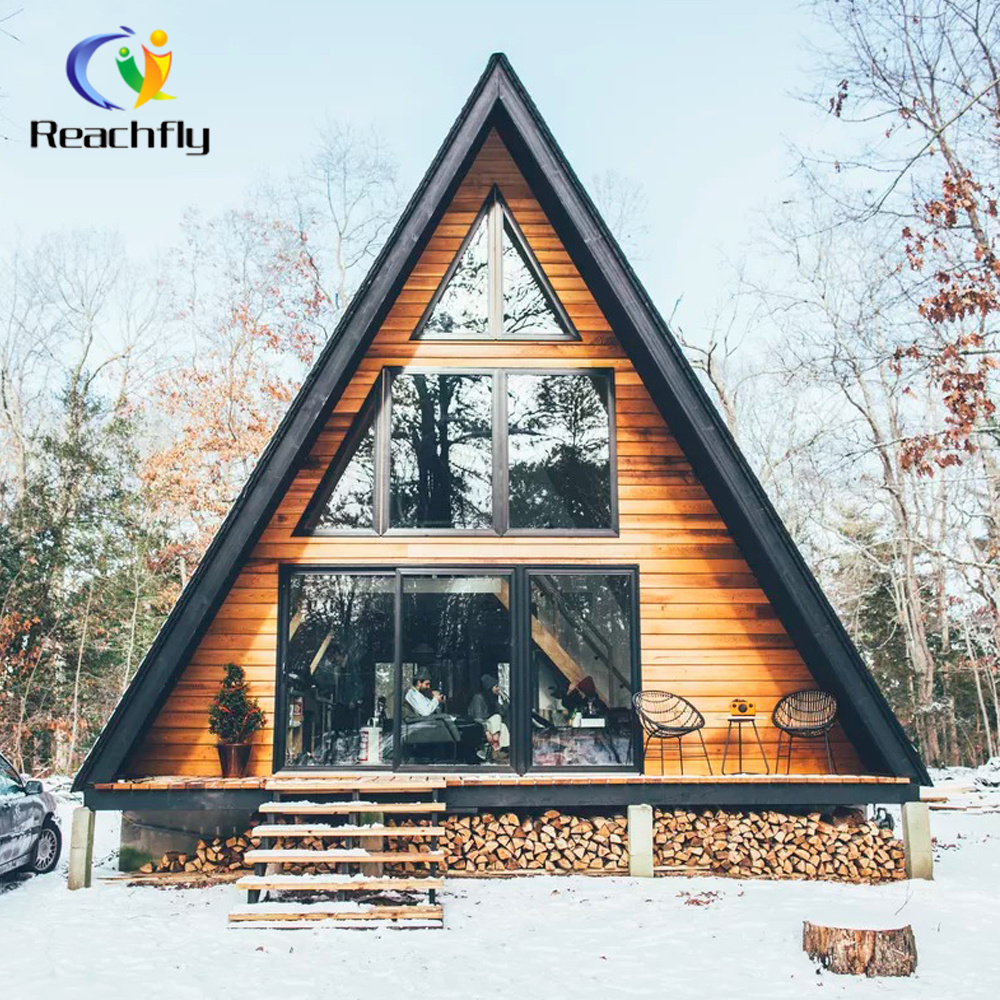

A Frame House
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Reachfly
-
Model Number:
-
RF-H
-
Main structure:
-
Galvanized Light Steel Framing
-
Roof:
-
Asphalt Shingle or Metal Tile
-
Window:
-
PVC or Aluminum Windows
-
Life Span:
-
50 Years Plus
-
Style:
-
A Frame House
|
Construction materials
*Steel framing members and accessories
*Subfloor framing members and accessories
*Floor joist framing members and accessories *Vapor barrier *Wall boards *Exterior wall siding *Roofing materials *Ceiling materials *Insulation materials *Floor materials *Windows *Electrical wiring (according to destination) *Plumbing pipes & fittings (according to destination) |
Finish materials
*Flooring tiles*Ceiling tiles
*Interior doors
*Decking materials *Shower kits *Toilet equipment *Beds *Lighting (according to destination) *Kitchen cabinets, sink, and etc. |
|
Service
*Pre-engineered PDF plans
*Plan modification
*Site Plan Guide
*Engineering Guide
|
Items not included
*Foundation materials
|
Please contact us or send us an inquiry if you have different requirements. More insulation layers can be added as clients requested.
|
Items
|
Specifications
|
|
|
||
|
Framing
|
G550 Light Gauge Steel, Thickness of 0.8-1.2mm, Zinc Coating 150g/m
2
|
|
|
||
|
Wall System
|
Exterior - OSB Boards + Breathing Paper + Exterior Wall Panels
Middle - Light Steel Frame with Mineral Wool Inside Interior - OSB Boards + Gypsum Boards |
|
|
||
|
Roofing
|
Asphalt Shingles / Metal Roof
|
|
|
||
|
Floor
|
Concrete + Customized Finishing
|
|
|
||
|
Windows
|
Aluminum Sliding Windows, Single or Double Glass
|
|
|
||
|
Door
|
Wooden door, Security Door, Aluminum Door
|
|
|
||
|
Bathroom
|
Shower, Seated Toilet, Wash Basin, Towel Rack
|
|
|
||
|
Plumbing
|
PPR and PVC water supply and drainage pipe with fittings
|
|
|
||
|
Electrical System
|
Wires, fittings and lights can be provided as per customer's request
|
|
|
||
|
Technical Data of Reachfly Light Steel Prefab Houses
|
|
|
|
|||
|
Roof load
|
≧50kilograms/m
2
|
|
|
|||
|
Flooring load
|
≧150kilograms/m
2
|
|
|
|||
|
Fire proof
|
Can up to A grade or B grade
|
|
|
|||
|
Seismic grade
|
9-magnitude
|
|
|
|||
|
Wind loading
|
11 level of wind loading
|
|
|
|||
1. Why build with steel frame?
Materials of metal frames are economical, lightweight and easy to handle. Galvanized Steel will not crack, shrink, splinter, creep, split, warp, swell or rot. Steel is impervious to termites and wood destroying insects.
2. How is a steel house insulated?
In order to combat the conductivity of the steel, the recommended procedure is to install a polyurethane foam board on the exterior of your frame. This will make sure that there is no heat transferred directly to the steel. We offer Reachfly wall panels and extra insulation boards to cover the temperature of most areas.
3. How well does steel framing stand up to earthquakes or hurricanes?
Light gauge steel framed house can be engineered to meet the highest seismic and wind loads required in most of the areas. Steel has the highest strength to weight ratio of any framing materials and a lighter structure with stronger connections results in lower damage from earthquakes. Steel framed houses in hurricanes suffered only superficial but no structural damage. Stronger connections by screws can withstand greater winds including cyclones or hurricanes.
4. Do steel framed homes have to be built on piles or concrete slabs?
Either. Steel frames can be fixed to a concrete slab or fixed to a lightweight steel floor system on concrete or steel piles. Lightweight steel flooring systems are ideal for elevated or sloping sites as they can minimize foundation requirements.
5. What external claddings can you offer?
We offer exterior wall panels designed and manufactured in-house. It is insulated and decorating at the same time. The external face is colored steel sheet which is weatherproof and requires minimum maintenance. Contact our sales person to get an exterior wall catalog or pictures of house cases.
6. What will be interior finishing?
The standard material used for the interior wall is gypsum boards. You can complete the final finishing after the house erected.
7. I've got my own design. Can you frame it?
Absolutely. We're happy to help turn your dream into a reality. For custom work, we ask for a refundable custom design fee that goes towards design and drafting time.
8. I do not have a design. Can you do it for me?
Absolutely. We have existing models for you to choose from. And take custom work as well.
11. How easy will be the house be built?
All parts are pre-manufactured in the factory. The detailed guide will be provided. Home DIY for everyone.
