Quick Details
-
Brand Name:
-
HENGKO
-
Product name:
-
Stainless Steel Filter
-
Application:
-
Gas Liquid Solid Filtration
-
Material:
-
Stainless Steel
-
Usage:
-
Gas Air Oil Liquid Water Filter
-
Size:
-
Standard Or Customized
-
Feature:
-
Long Life, High Permeability
-
Shape:
-
disc, plate, cup, tube cartridge, irregular Or Customized
-
Our Service:
-
OEM ODM
-
Type:
-
Sintered Filter Filtration
-
MOQ:
-
10pcs
Quick Details
-
Weight (KG):
-
0.05
-
Core Components:
-
Sintered Stainless Filter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENGKO
-
Product name:
-
Stainless Steel Filter
-
Application:
-
Gas Liquid Solid Filtration
-
Material:
-
Stainless Steel
-
Usage:
-
Gas Air Oil Liquid Water Filter
-
Size:
-
Standard Or Customized
-
Feature:
-
Long Life, High Permeability
-
Shape:
-
disc, plate, cup, tube cartridge, irregular Or Customized
-
Our Service:
-
OEM ODM
-
Type:
-
Sintered Filter Filtration
-
MOQ:
-
10pcs
HENGKO manufactures filter in a broad range of materials, sizes, and fittings so they can be easily specified with the characteristics and configurations customers require. We can incorporate custom features or create completely original filter designs for specialized needs. Our filter also come a variety of different alloys, each with their own special benefits and application purposes. They are a popular choice for many industrial filtration applications due to their heat, corrosion, and physical wear resistance.

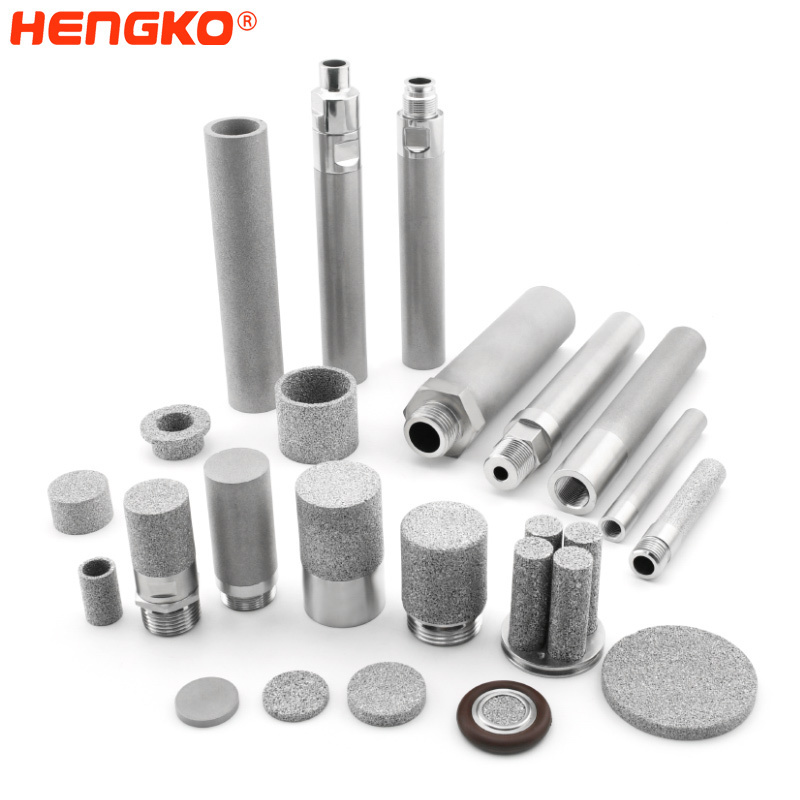

Factory 0.1 0.3 0.5 5 22 50 100 300 Micron Filter Tubes Disc Plate Mesh Micro 316L Sintered Stainless Steel Filter Cartridges
Porous Sintered Metal Filters
consist of highly uniform, interconnected networks of pores with tortuous paths that trap solid particles in gas or liquid flow streams. Excellent depth filters with superior mechanical strength. Stainless Steel Type 316L withstands temperatures up to 750°F (399°C) in oxidizing and 900°F (482°C) in reducing environments. These steam autoclavable filters can be cleaned by other methods, such as ultrasonic baths or reverse flow flushing. If your application requires even greater resistance to corrosion, temperature, wear, and vibration, other nickel-based alloys are available.
|
Application
|
|
|
|
A. Solid gas separation
|
J. Cooling
|
|
|
B. Muffler, silencer
|
K. Uniform gas,well-distributed, diffuse gas or oil or heat
|
|
|
C. Air purification
|
L. Breathable protection
|
|
|
D. Filtering oil
|
M. Pharmaceutical, medicine
|
|
|
E. Dedusting, Isolation dust, dustproof
|
N. Chemical
|
|
|
F. Gas-oil dissociation
|
O. Chemical fiber
|
|
|
G. Gas liquid separation
|
P. Filtration for high temperature environment
|
|
|
H. Moistureproof
|
Q. High pressure reverse wash filtering
|
|
|
I. Heat insulation
|
R. Acid and alkali corrosion environment filtering
|
|
Detailed Images
|
Material
|
SS316L, 304
|
|
Specifications
|
Alloy, Bronze
|
|
Types
|
disc, plate, cup, tube cartridge, irregular or custom
|
|
Pore Size
|
stainless steel (0.1-120um)
|
WHY POROUS METAL?
Filtration systems using sintered metal media for gaseous, solid and liquid separation have proven to be an effective and efficient alternative to other separation methods that can be vulnerable to pressure peaks, high temperatures and/or corrosive environments. Sintered metal is highly efficient in removing particulates, delivers a reliable performance, is easy to clean and has a long life in comparison with leaf filters, filter bags and plate and frame filters.
Filter cartridge:
candle filters and porous tubes are long, cylindrical filters with thin walls, i.e. they have a high length-to-diameter ratio. The cylinders can be hollow or blind, and have a minimum wall thickness of 1 mm. The material used for these filters is AISI 316L stainless steel. They are made by isostatic compaction of powder in a flexible mould with the negative shape of the part, and then sintered. The pore size is adjusted by changing the compaction pressure andor the particle size of the powder.
These filters are commonly used as filter cartridges or aerators for high flow rates. They can be used directly as tubes, or connections of various geometries can be added at the ends (standard or to customer specifi cations.
HENGKO sintered stainless steel filter, also called metal porous filters, adopt stainless steel 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.
HENGKO nano micron pore sized grade mini stainless steel sintered filter plate have excellent performances of smooth and flat
internal and external tube wall, uniform pores and high strength. The dimensional tolerance of most models is controled within 0.05 mm.
-
High filtration efficiency.
-
High mechanical strength.
-
High permeability and porosity.
-
Anti-corrosion and anti-pressure.
-
Even distribution of pores catalysis recycling accurate filtering.
-
Can be used at high and low temperature.
-
Easy to clean and can be used for many times.
-
Long service life.
High technology special process molding
The
316L
material used to produce these filters. They are made by uniaxial compaction of powder in a rigid tool with the negative shape of the part, and then sintered. The pore size is adjusted by changing the compaction pressure and/or the particle size of the powder.
Powder metallurgy technology is able to create other shapes, such as blind cylinders and other special geometries. In these cases it is necessary to build a specific tool according to the required design.
Shiping & Payment
Certificate
Certificatate by CE, ISO9001, FCC, ROSH etc. Patents 30+
Company Introduction
HENGKO
has extensive experience in providing innovative filtration and separations solutions to the global food and beverage industry. We committed to partnering with our customers to improve process control, increase production efficiency and reduce
costs, whilst protecting final product quality.
Our dedicated test, development and laboratory services underpin our design and
development activity, from filtration media and material characterisation, product verification testing to customer scale-up trials and in-service performance evaluation.
Our advantange:
1. Excellent design 2. Senior service team 3. Export certification 4. High stability and precision
*
20 YEARS OEM EXPERIENCE,
Focus on sintered stainless steel filter industry, s
upport customized service
*
Our company has experienced product development teams, high quality services and solutions
*
Accurate, stable, professional and high challenge products.
*
Our products are delivered to customers after passing the quality inspection
*
Provide 100% high-quality pre-sales and after-sales service until the customer is satisfied
Exhibition
FAQ
Q1. Are you manufacturer or trading company?
--We are direct manufacturer specializing in porous sintered metal filters.
Q2. What’s the delivery time ?
--Normal model 7-10 work days because we have ability to do the stock. For big order, it takes about 10-15 work days.
Q3. What is your MOQ?
-- Usually, it is 100PCS, but if we have other orders together, can help you with small QTY also.
Q4. What payment ways available?
-- Western Union, Paypal , T/T , Credit Card , online bank transfer, RMB , etc.
Q5. If sample first possible?
-- Sure, usually we have certain QTY of free samples, if not, we'll charge accordingly.
Q6. We have design, can you produce?
--Yes, welcome!
Q7. Which market do you already sell?
--We already ship to Europe, Middle East, Asia, South America , Afria, North America etc.
