Quick Details
-
Model Number:
-
ATMS1601
-
Operating Temperature:
-
-10℃... +60℃
-
Voltage Rating:
-
100-240VAC 50/60Hz
-
Voltage Limit:
-
90-260VAC
-
Control:
-
by Mobile App and Push button
-
Power Consumption:
-
5VA(MAX)
-
Time Basis:
-
WiFi time
-
Switching Power:
-
16A 250VAC/10A 250VAC
-
Programs::
-
100 ON/OFF programs
-
Incandescent Lamp Load:
-
2300W
-
Count Down time::
-
23h59m to 1m
-
Product Name:
-
Wifi Smart Switch
Quick Details
-
Max. Current:
-
16A
-
Max. Voltage:
-
100-240VAC
-
Brand Name:
-
AULTOP
-
Model Number:
-
ATMS1601
-
Operating Temperature:
-
-10℃... +60℃
-
Voltage Rating:
-
100-240VAC 50/60Hz
-
Voltage Limit:
-
90-260VAC
-
Control:
-
by Mobile App and Push button
-
Power Consumption:
-
5VA(MAX)
-
Time Basis:
-
WiFi time
-
Switching Power:
-
16A 250VAC/10A 250VAC
-
Programs::
-
100 ON/OFF programs
-
Incandescent Lamp Load:
-
2300W
-
Count Down time::
-
23h59m to 1m
-
Product Name:
-
Wifi Smart Switch
You are here: Home >> Digital Programmable Time Switch

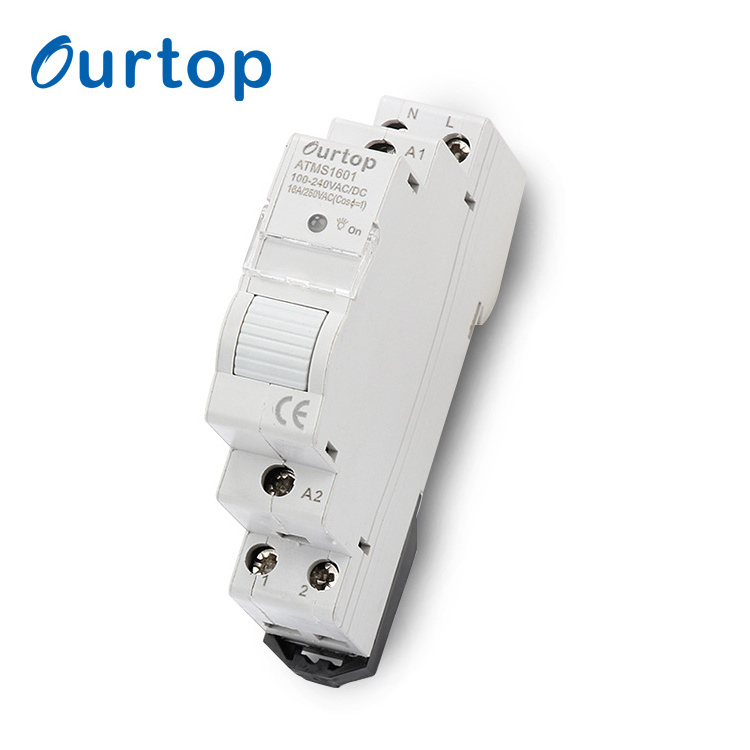

ATMS1601 IOS Android APP Control Wifi Smart Switch
| Type | ATMS1601 |
| Voltage Rating | 100-240VAC 50/60Hz |
| Voltage Limit | 90-260VAC |
| ON/OFF Operation | 100 ON/OFF programs |
| Count Down time | 23h59h to 1m |
| Incandescent Lamp Load | 2300W |
| Control | by mobile App |
| Switching Power | 16A 250VAC(Cosφ= 1), 10A 250VAC(Cosφ=0.6) |
| Switching Contact | 1 NO |
| Minimum Interval | 1 Minute |
|
LED
|
RED and GREEN |
| Power Consumption |
5VA (Max) |
| Time Basis | internet time |
| Share | can share 50 person to control |
| Ambient Humidity | 35-85%RH |
| Current | 30% Deposit,70% Balance Before Shipment,L/C And Other Payment Term |
| Shipping Methods: | By Air Or By Sea(FOB Port:Shanghai/Ningbo),By Express (EMS,DHL,UPS,ARAMEX) |
Function:
* Program timer ,can set 100 On/Off programs one day or per week.
* Count down time ,from 1 Min to 23 hours 59 Mins.
* If the product is disconnected from the network ,the timer retains all programs set up by Mobile APP and works according to the set programs.
* With memory function ,When the product contact is in the close state ,after the power failure,and then call ,the product contacts still keep the close state.
* Also can controlled by buttons from terminal A1 and A2.
* Can be share with 100 peoples by Mobile APP.
Click " SEND "G et The Latest Quotation Now!!! You Can Get The FREE SAMPLES S oon
