Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support, Engineers available to service machinery overseas
-
Biggest injection rate:
-
180~210cc/s
-
Injection Pressure(kfg/cm2):
-
750
-
Injection volume(cc):
-
300~500
-
Screw diameter(mm):
-
45,50,55
-
Motor capacity(kw):
-
11~20
-
Gross Weight(Ton):
-
6.3~11
-
Model:
-
JC-LV
-
Opening Stroke:
-
300~350mm
-
Clamping Force (kN):
-
200
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support, Online support, Engineers available to service machinery overseas
-
Biggest injection rate:
-
180~210cc/s
-
Injection Pressure(kfg/cm2):
-
750
-
Injection volume(cc):
-
300~500
-
Screw diameter(mm):
-
45,50,55
-
Motor capacity(kw):
-
11~20
-
Gross Weight(Ton):
-
6.3~11
-
Model:
-
JC-LV
-
Opening Stroke:
-
300~350mm
-
Clamping Force (kN):
-
200
-
Certification:
-
CE ISO9001

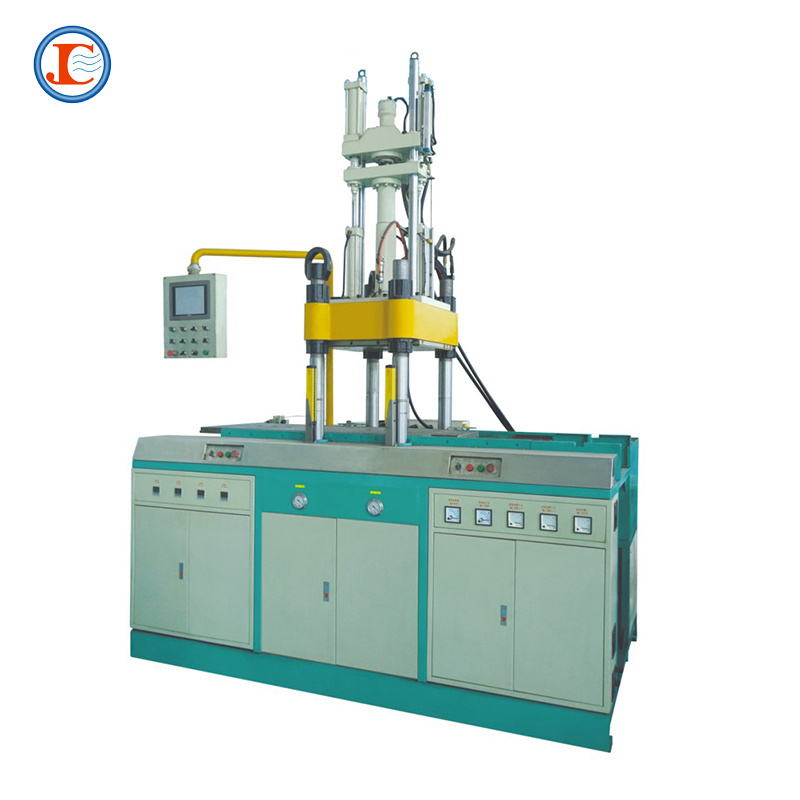

100-1000T High Precision Liquid Silicone Injection Molding Machine For Watch Strap
LV Series Liquid Silicone Injection Molding Machine
F
eatures
1
. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism .
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5 . Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO | 300VI-IO |
| Clamping Force | Ton | 100 | 200 | 300 |
| Injection Capacity | cc | 180 | 180 | 210 |
| Injection pressure | kgf/cm² | 750 | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 | 500 |
| Operate table size | mm | 600*550 | 600*650 | 700*700 |
| Min. Mold Thickness | mm | 120-220 | 130 | 160 |
| Distance of Thermo-plate | mm | 400~500 | 470~600 | 500~600 |
| Die sinking type | mm | 300 | 350 | 350 |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw speed | r/p | 0-120 | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 20(15kw) |
| Gross weight | Ton | 6.3 | 7.6 | 11 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 | L1900*W2800*H3800 |
