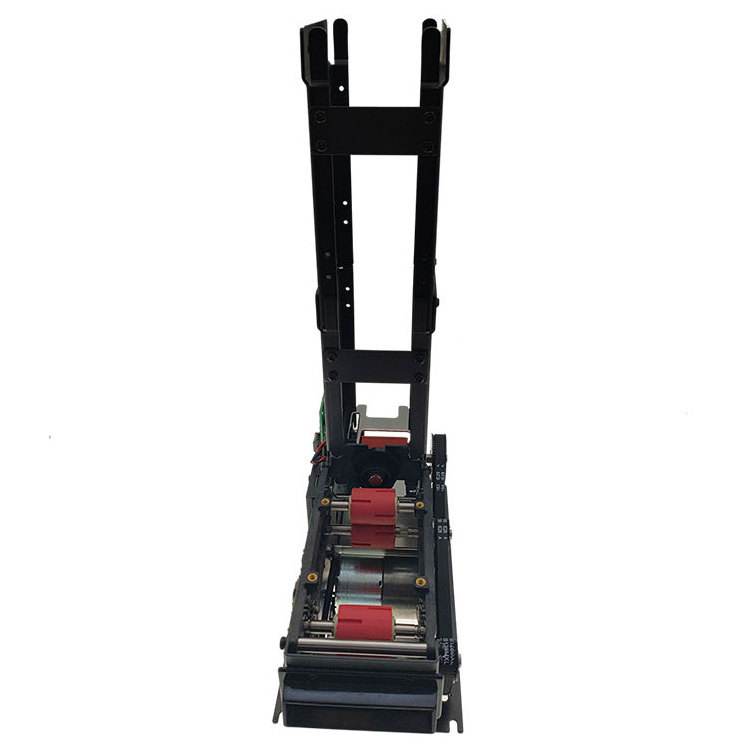

PT-F1-1xxx series of card issuing machine is a high-performance card dispensing/collecting device, which can automatically dispense/collect cards and tickets and to/from customers according to device instructions. Mainly applicable to parking lot management systems, highway gates, self-service toll collection systems, self-service card vending terminals, bank cards management system, etc.
- Product Details
- {{item.text}}
Quick Details
-
Communication method:
-
RS232 / TTL optional
-
Card capacity:
-
500 pcs with extension stacker
-
Extension stacker:
-
yes
-
Card size:
-
width: 55 mm, length: 86 mm
-
Thickness:
-
0.2mm--1.2mm
-
Working voltage:
-
DC24V±5%
-
Net Weight:
-
Approx. 1.6KG
-
Single packaging box:
-
495 x 275 x 290mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PROVA
-
Model Number:
-
PT-F1-1100
-
Communication method:
-
RS232 / TTL optional
-
Card capacity:
-
500 pcs with extension stacker
-
Extension stacker:
-
yes
-
Card size:
-
width: 55 mm, length: 86 mm
-
Thickness:
-
0.2mm--1.2mm
-
Working voltage:
-
DC24V±5%
-
Net Weight:
-
Approx. 1.6KG
-
Single packaging box:
-
495 x 275 x 290mm
Product Description
-
Product performance description:
Features:
* The unique rubbing wheel design can accurately issue various embossed cards.
* Convenient, simple, stable and accurate adjustment and issuance of cards of various thicknesses.
* The card issuance and card recycling functions are realized with the shortest size, effectively saving cabinet space.
* The back-end recycling card box is designed to facilitate card management.
* The simple recycling channel design can meet the needs of users with large recycling volumes.
* It has multiple sensor detections such as recycle box full, card box pre-empty, card box empty, card location, etc., which can accurately determine the location and status of the card Prompt function.
* The scientific card transfer wheel design can automatically avoid slipping caused by dust accumulation.
* The use of high-strength wear-resistant plastic channels reduces the risk of metal shielding and improves the read and write success rate of the RF card.
* Multi-level sensor circuit protection to prevent light interference to the sensor
* The unique rubbing wheel design can accurately issue various embossed cards.
* Convenient, simple, stable and accurate adjustment and issuance of cards of various thicknesses.
* The card issuance and card recycling functions are realized with the shortest size, effectively saving cabinet space.
* The back-end recycling card box is designed to facilitate card management.
* The simple recycling channel design can meet the needs of users with large recycling volumes.
* It has multiple sensor detections such as recycle box full, card box pre-empty, card box empty, card location, etc., which can accurately determine the location and status of the card Prompt function.
* The scientific card transfer wheel design can automatically avoid slipping caused by dust accumulation.
* The use of high-strength wear-resistant plastic channels reduces the risk of metal shielding and improves the read and write success rate of the RF card.
* Multi-level sensor circuit protection to prevent light interference to the sensor
|
Power supply
|
DC24V ± 5%,< 1.5A
|
|
Quiescent Current
|
200mA
|
|
Communication Method
|
RS232 Interface, with capture box (multiple communications supported, with default address 00)
|
|
Service Life
|
≥ 1,000,000 passes
|
|
Card Stacker Capacity
|
155 pcs (0.76mm standard card)
|
|
|
120 pcs (0.76mm embossing card)
|
|
|
300 pcs (0.4mm thickness)
|
|
Capture Box Capacity
|
25 pcs (0.76mm standard card)
|
|
Net Weight
|
Approx.1.6KG (excluding accessories and package)
|
|
C/D Dimension
|
236L x 100W x 200H mm
|
|
Operation Temperature/ Humidity
|
-10°C to 70°C, 0 to 90% RH without condensation
|
|
Storage Temperature/ Humidity
|
-25°C to 80°C, 0 to 90% RH without condensation
|
|
Cards Supported
|
86L x 55W mm(0.2~1.2mm thickness; factory standard: 0.8mm)
|
