（1） Water packing solutions to reduce your total cost of ownership
（2）Higher speeds with gentler handling
（3） Hygienic production for top quality water
（4）Reduced consumption with more efficient resources use
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
100%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
3000X2150X2200MM
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Tap water manufacture filling machine for pure and mineral water
-
Product name:
-
water filling machine
-
Function:
-
Bottle Washing Filling Capping
-
Processing Types:
-
Mineral
-
Material:
-
Stainless Steel 304/316
-
Usage:
-
Beverage Packaging
-
Capacity:
-
2000-30000bph
-
Bottle type:
-
PET Plastic Bottle
-
Filling material:
-
Flowing Liquid
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water, Juice
-
Filling Accuracy:
-
100%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
3000X2150X2200MM
-
Weight:
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Tap water manufacture filling machine for pure and mineral water
-
Product name:
-
water filling machine
-
Function:
-
Bottle Washing Filling Capping
-
Processing Types:
-
Mineral
-
Material:
-
Stainless Steel 304/316
-
Usage:
-
Beverage Packaging
-
Capacity:
-
2000-30000bph
-
Bottle type:
-
PET Plastic Bottle
-
Filling material:
-
Flowing Liquid
Product Description
Increasing production and convenience, Datong Machine Water lines provide:
Welcome to contact us
Let's make machine better.
Product Details

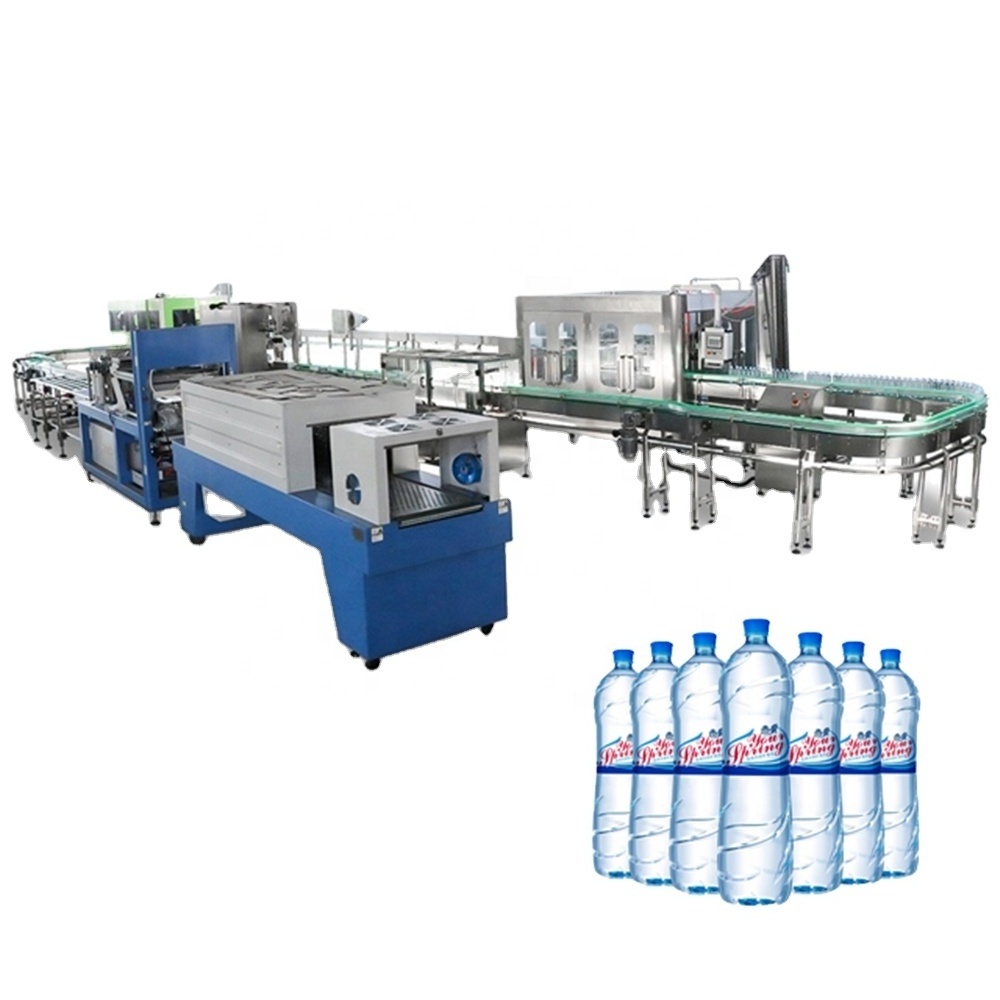

We supply complete solution for the pure drinking mineral water PET bottle filling plant . Including : Water Filtration treatment
system / PET Bottle Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine /
Automatic Palletizer system / Automatic film wrapping machine and so on.
system / PET Bottle Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine /
Automatic Palletizer system / Automatic film wrapping machine and so on.
Rinsing gripper dial, separating water dial, water trough .
This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
The rinse is driven by driving system positioned inside machine frame via gear transmission.
Liquid tank, filling valves, controlling rings, upgrading cylinder.
Rotary wheel are fully made of stainless steel.
Filling valves are designed and manufactured with German technology, made of stainless steel. featuring high filling accuracy and high filling speed.
Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
Hydraulic pump is float-ball controlled.
The filler is driven by driving system positioned inside machine frame via gear transmission.
Capping system
Have scale mark in cap.it's convenient to adjust.
The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
Highly effective acentric way for cap sorting to reduce the abrasion.
Technical Characteristic
By 3-in-1 monoblock,the bottle goes through washing，filling，capping with little abrasion，and the transferring isstable，bottle changing is easier.
Application
Pure water，mineral water，spring water and other bottled water etc.
Product Paramenters
|
Model
|
CGF14-12-5
|
CGF16-16-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
CGF60-60-15
|
|||||||
|
Production capacity
|
2000-3500
|
3500-5000
|
5000-7000
|
7000-12000
|
12000-15000
|
15000-20000
|
20000-24000
|
24000-30000
|
|||||||
|
Suitable bottle shape
|
circular or square
|
|
|
|
|
|
|
|
|||||||
|
Bottle diameter（mm）
|
Φ50-Φ95
|
|
|
|
|
|
|
|
|||||||
|
Bottle height (mm)
|
150-310
|
|
|
|
|
|
|
|
|||||||
|
Washing medium
|
aseptic water
|
|
|
|
|
|
|
|
|||||||
|
Total power(kw)
|
3
|
3.5
|
4
|
5.5
|
7.5
|
11
|
15
|
20
|
|||||||
|
Weight(kg)
|
2200
|
2800
|
3000
|
4500
|
6000
|
9000
|
15000
|
18000
|
|||||||
Specification
|
item
|
value
|
|
Type
|
Filling Machine
|
|
Applicable Industries
|
Foof＆Beverage Factory
|
|
Condition
|
New
|
|
Application
|
Beverage
|
|
Packing Type
|
Cans，Bottles
|
|
Packaging Material
|
Plastic，Glass
|
Packing & Delivery
We use wooden packing to protect machines are not damaged during the transit for Mineral Water Bottling Plant
