Quick Details
-
package:
-
carton box
-
Application:
-
Optical shop
-
Operating system:
-
Windows XP Professional
-
Hard disk:
-
500G touch screen perimeter
-
power:
-
110V-240V, 50HZ/60HZ
-
Payment terms:
-
Trade Assurance
-
Product name:
-
touch screen perimeter
-
brand name:
-
zhiwan touch screen perimeter
-
factory:
-
china touch screen perimeter
-
CPU:
-
Intel Dual Core Processor
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
zhiwan touch screen perimeter
-
Model Number:
-
APS-1000 touch screen perimeter
-
package:
-
carton box
-
Application:
-
Optical shop
-
Operating system:
-
Windows XP Professional
-
Hard disk:
-
500G touch screen perimeter
-
power:
-
110V-240V, 50HZ/60HZ
-
Payment terms:
-
Trade Assurance
-
Product name:
-
touch screen perimeter
-
brand name:
-
zhiwan touch screen perimeter
-
factory:
-
china touch screen perimeter
-
CPU:
-
Intel Dual Core Processor

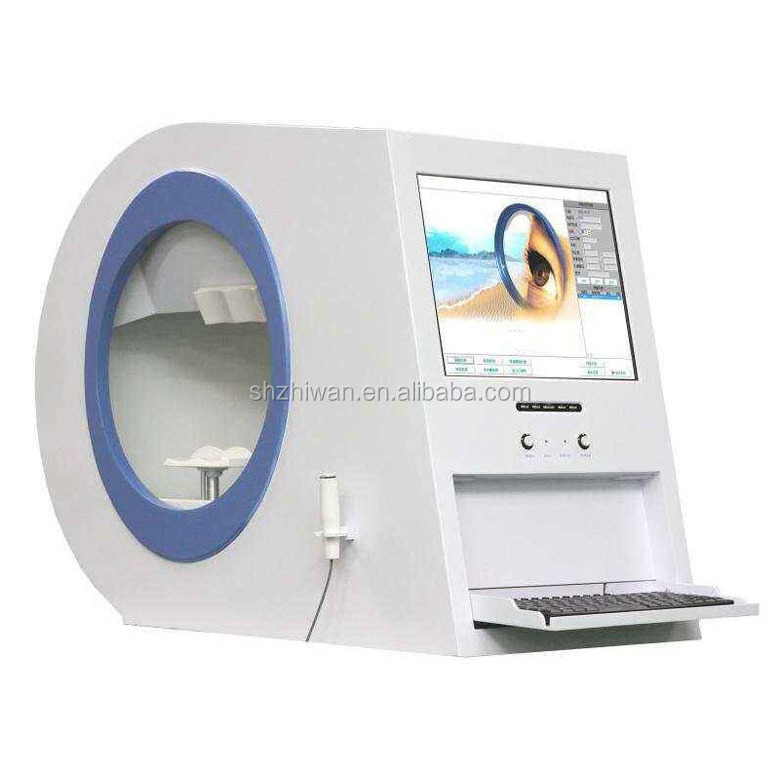

Computer Analyzer Eye Visual Field machine APS-1000 with touch screen perimeter
| Feature: |
| Set the operating system and analysis system in one automated computer perimeter system.A comprehensive inspection programs and analysis report.For glaucoma, fundus diseases, nervous system field of vision inspection to provide professional and reliable data analysis. |
|
A highly integrated computer, optical, mechanical and electrical integration of the formation of the vision inspection system |
| With glaucoma detection, macular function, diabetes vision inspection, neurology vision detection, low vision, ptosis vision test etc more than 22 check project. |
| A comprehensive software analysis, including 11 report analysis of international standard. |
|
Specification: |
|
|
Clinical application |
Vision field inspection and auxiliary diagnosis for glaucoma, neuropathy and retina diseases |
|
Stimulus generation |
Mirror projection system |
|
Maximum temporal range |
90° |
|
Testing distance |
30cm |
|
Background illumination |
4asb |
|
Stimulus light source |
388 points with SLD LED |
|
Stimulus light color |
Red ( 172 points ) Yellow ( 216 points ) |
|
Stimulus Spot size |
Diameter : 2mm |
|
Stimulus intensity |
2.5-1000asb , 31- grade adjustable ( Interval:1dB ) |
|
Stimulus duration |
200-500ms , 4- grade adjustable ( Interval:100ms ) |
|
Stimulus interval time |
500-1500ms , 10- grade adjustable ( Interval:100ms ) |
|
Fixation |
Green LED light |
|
Fixation control
|
Infrared camera pupil monitoring system |
|
Test strategies & patterns |
22 items : 1. Threshold test: Macular test , Central Field 30° test , quadrant visual field test, Glaucoma test , Diabetes test, Blind spot test , Customized threshold test, etc; 2. Screening test : Peripheral field test , 0-75° screening test, Customized screening test, glaucoma qualitative test 3. Special test: Neurology test , Nasal step test , Central Low vision test , Ptosis test , Temporal side zone test , Blind spot test 4. Fast Threshold test: Central field fast threshold test , Peripheral field fast threshold test |
|
Print report |
11 kinds: Digital graph, Grayscale graph(black and color), Profiles graph(0~180° freeform section), Three-dimensional stereogram graph , Threshold graph, Differential graph, Total probability graph, Mode deviation probability graph, Cumulative defective graph, etc. |
|
Computer system/accessories |
|
|
Operating system |
Windows XP Professional |
|
Hard disk |
500G |
|
Memory |
2G |
|
CPU |
Intel Dual Core Processor |
|
Voice prompt system « |
Prompt check the matters needing attention in both Chinese and English, etc |
|
Accessories |
color inkjet printer , mouse , responsor |
|
Other |
|
|
Dimension |
73cm ( length ) ×38cm ( width ) ×62cm ( height ) |
|
Weight |
20kg |
|
Power |
AC220V/50Hz |
