- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
3000*1520*2200mm
-
Weight:
-
2400kg
-
Air capacity:
-
15m3/min
-
Marketing Type:
-
Hot Product 2023
-
Warranty of core components:
-
1 year
-
Key words:
-
towable air compressors
-
Application:
-
Energy/Mining
-
Pressure:
-
13bar
-
Capacity:
-
15m3/min
-
Air end:
-
SKK
-
Bearing:
-
Sweden SKF
-
Drive method:
-
Belt Driven/direct
-
Diesel engine:
-
Cummins&Yuchai
-
After Warranty Service:
-
Online support
-
Certification:
-
CE&ISO:900
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Model Number:
-
KSCY-550/13
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
3000*1520*2200mm
-
Weight:
-
2400kg
-
Air capacity:
-
15m3/min
-
Marketing Type:
-
Hot Product 2023
-
Warranty of core components:
-
1 year
-
Key words:
-
towable air compressors
-
Application:
-
Energy/Mining
-
Pressure:
-
13bar
-
Capacity:
-
15m3/min
-
Air end:
-
SKK
-
Bearing:
-
Sweden SKF
-
Drive method:
-
Belt Driven/direct
-
Diesel engine:
-
Cummins&Yuchai
-
After Warranty Service:
-
Online support
-
Certification:
-
CE&ISO:900

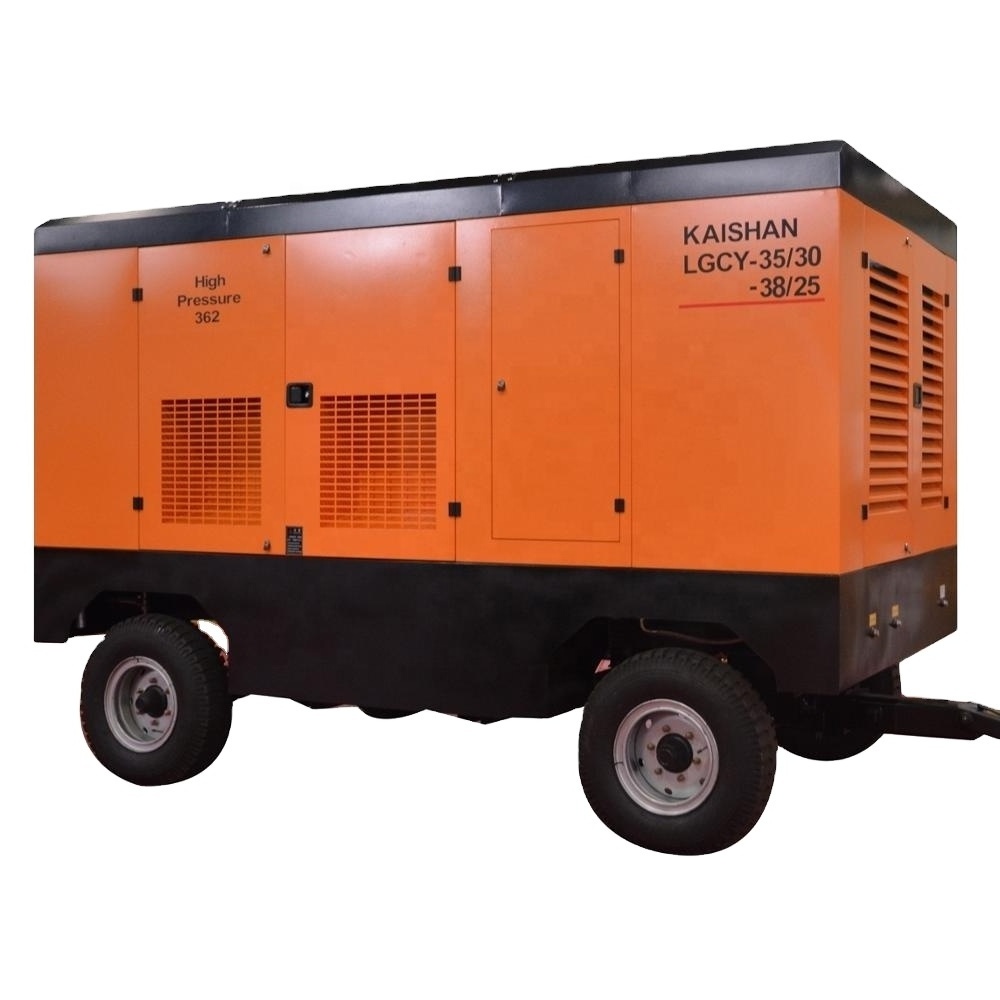

Mine used belt drive two wheels towable diesel engine air compressor for sand blasting
|
Mining companies depend on high-quality equipment to provide longevity in performance and in reliability. Through the use of industrial air compressor systems, electric and pneumatic tools are used in drilling, material handling, transportation, mineral extraction and complex ventilation systems. Selecting a compressor that is built to withstand the wear and tear of mining, as well as stand up to the demands of continued use in the long term is important for your bottom line. At Kaishan Compressor, we offer reliability and some of the industry’s strongest warranties. Our products are engineered to last for decades and are built with durability in mind. For the heavy-duty use and harsh environments of the mining industry, Kaishan compressors can deliver the compressed air demands needed to power tools, equipment and ventilation systems critical to your operation. |
Technical parameters of KSCY series screw air compressor
| model |
working pressure
(bar) |
capacity
(m3/min) |
motor power
(kw) |
diesel engine model |
dimension
(mm) |
weight
(kg) |
||
| l | w | h | ||||||
| KSCY360-13 | 13 | 10 | 110 | 6BT5.9-C150 | 4100 | 1850 | 1800 | 2000 |
| KSCY430-10 | 10 | 12 | 110 | 6BT5.9-C150 | 4100 | 1850 | 1800 | 2000 |
| KSCY430-12 | 12 | 12 | 110 | 6BT5.9-C150 | 4100 | 1850 | 1800 | 2000 |
| KSCY550-13 | 13 | 15 | 132 | 6BTA5.9-C180 | 3400 | 1600 | 2000 | 2800 |
| KSCY-650A/18T | 18 | 18 | 191 | YC6A260L-20 | 3980 | 1800 | 2230 | 3700 |
| KSCY-650/18T | 18 | 18 | 194 | 6CTA8.3-C260 | 3980 | 1800 | 2230 | 3700 |
| KSCY550-14T | 14 | 15 | 132 | 6BTA5.9-C180 | 3600 | 1600 | 2220 | 2900 |
| click here for more models | ||||||||
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
