Ningbo Master Soken Electrical Co., Ltd. established in 1999, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SOKEN
-
Model Number:
-
RT233-2A
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000 cycles
-
Name:
-

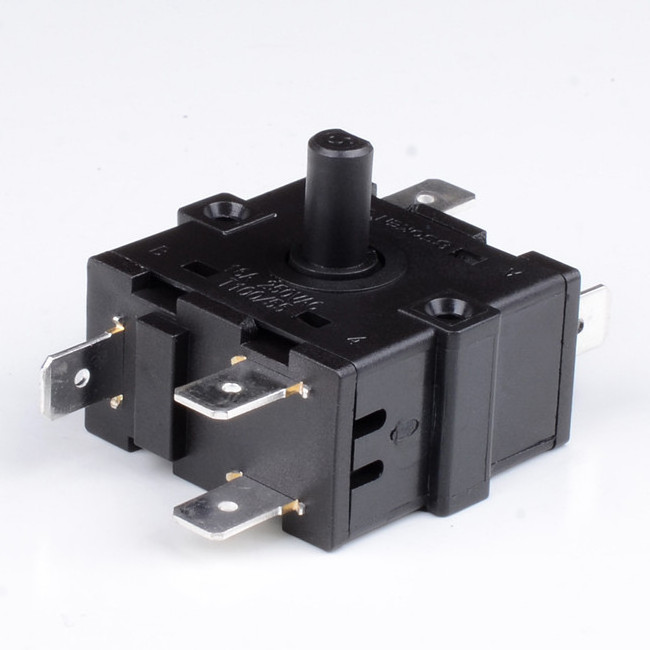

SOKEN small 4 speed position oven rotary switch 16a 250v t100 RT233-2A
-
Main material:
-
PA66
-
Shaft:
-
11.4/15/18/23/26mm
-
Function:
-
4 position
-
Color:
-
Black or Customized
-
Operation temp:
-
-25~85℃
-
Certificate:
-
TUV/VDE/KTL/CQC
-
Certification:
-
TUV
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250 VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
RT233-2A
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000 cycles
-
Name:
-
SOKEN small 4 speed position oven rotary switch 16a 250v t100 RT233-2A
-
Main material:
-
PA66
-
Shaft:
-
11.4/15/18/23/26mm
-
Function:
-
4 position
-
Color:
-
Black or Customized
-
Operation temp:
-
-25~85℃
-
Certificate:
-
TUV/VDE/KTL/CQC
-
Certification:
-
TUV
|
Rating
|
16A 250VAC T100(TUV/VDE/KTL/CQC)
|
|
Contact Resistance
|
100MΩ Max
|
|
Contact resistance
|
100mΩ Min
|
|
Electrical life
|
10000cycles(16A 250VAC)
|
|
Operating Temperature
|
-25~85℃
|
|
Applicable standard
|
IEC61058-1
|
|
Contact Resistance：
|
100mΩ Max
|
|
Insulation Resistance：
|
500VDC，100MΩ Min
|
|
Dielectric Strength：
|
Terminal and terminal：1500VAC 5s
|
|
|
Terminal and ground：3000VAC 5s
|
|
Operating Temperature：
|
-25～85°C
|
|
Electrical Life：
|
10000 Cycles
|
|
Rating：
|
3(1)A 250VAC T85(CQC TUV)
|
|
Contact leg
|
Brass t0.8rass T=0.8mm
|
|
|
|
|
Contact
|
Silver alloy
|
|
|
|
|
Terminals
|
Brass T=0.8mm
|
|
|
|
|
Case
|
PA66
|
|
|
|
|
Gear
|
PA66
|
|
|
|
