1530 Fiber Optic Equipment / Cnc Laser Cutter / Carbon steel Metal sheet Fiber Laser Cutting Machine With Rotary

1530 Fiber Optic Equipment / Cnc Laser Cutter / Carbon steel Metal sheet Fiber Laser Cutting Machine With Rotary

FOB Reference Price: Get Latest Price

≥1 Sets

US $21500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Cypcut Tubepro

Cutting Area:: 1500*3000mm

Cutting Thickness:: 18 mm

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: XT Laser

Weight (KG):: 3000 KG

Core Components:: Laser source

Product name:: cnc metal laser cutting machine

After-sales Service Provided:: Engineers available to service machinery overseas

Working area:: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm

Max moving speed:: 100m/min

Brand:: XT Laser

Voltage:: 3 phases 380V 50-60 HZ

OEM:: Yes

Position Accuracy:: 0.05mm

Repostion Accuray:: 0.03mm

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: 80-120 mm/s, 50m/min

Cooling Mode:: WATER COOLING

Control System Brand:: Cypcut Tubepro

Cutting Area:: 1500*3000mm

Cutting Thickness:: 18 mm

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: XT Laser

Weight (KG):: 3000 KG

Core Components:: Laser source

Product name:: cnc metal laser cutting machine

After-sales Service Provided:: Engineers available to service machinery overseas

Working area:: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm

Max moving speed:: 100m/min

Brand:: XT Laser

Voltage:: 3 phases 380V 50-60 HZ

OEM:: Yes

Position Accuracy:: 0.05mm

Repostion Accuray:: 0.03mm

Detailed Image

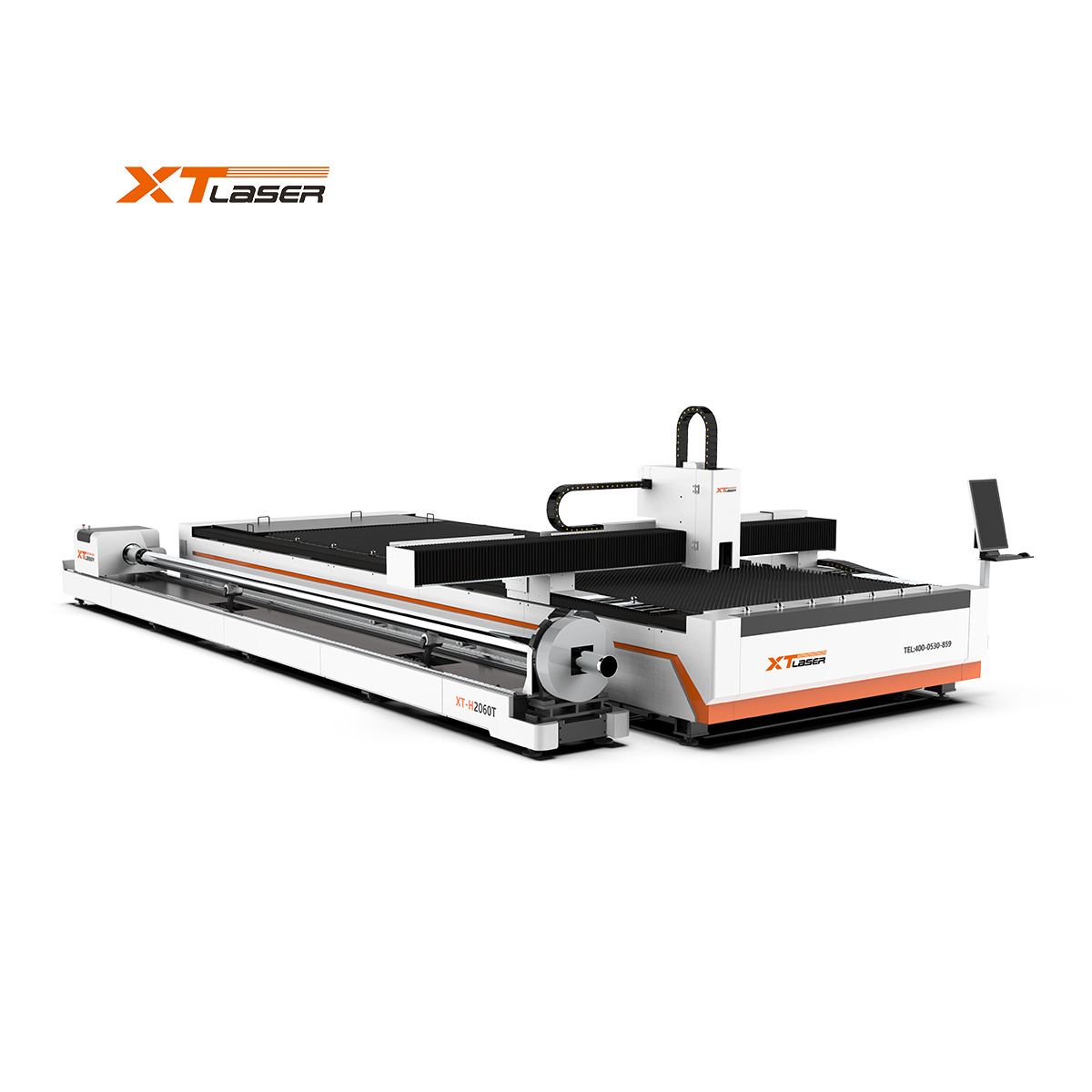

HT SERIES Fiber Laser Cutting Machine

cnc metal laser cutting machine for plate and tube

1. Single Table Tube & Plate Fiber Laser Cutting Machine 1000W-4000W
2. One Machine with Two Functions
3. Intelligent CNC System
4. Double Pneumatic Chucks
5. Open Structure, Convenient Loading & Unloading

Product Paramenters

Model	XT-H1530T	XT-H1545T	XT-H2040T	XT-H2060T
Working Area	1530×3050mm	1530×4550mm	2030×4050mm	2030×6050mm
Max Linkage Speed	140m/min	140m/min	140m/min	140m/min
Max Acceleration	1.5G	1.5G	1.5G	1.5G
Positional Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Re-positional Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Pipe Section Shape	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular
Tube Size Range (Dual Pneumatic)	T160：Round:Φ16-Φ155mm Square：□16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular:Long Side≤220mm	T160：Round:Φ16-Φ155mm Square:□16-□155mm Rectangular：Long Side≤155mm T220: Round：Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm	T160：Round:Φ16-Φ155mm Square:16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm	T160：Round:Φ16-Φ155mm Square:□16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm

Products Description

One Machine with Two Functions

HT series can cut both tube and plate metals,

combining a tube laser cutting machine and plate laser cutting machine.

Save purchasing costs One machine with multi-function Save working space

Double Pneumatic Chucks

2~3 times faster than traditional electric chucks.

2 rows of rollers are adopted for a wide range of clamping and high cutting precision.

Dual support frame for 6m tube.

Φ20-220mm □20-150mm Diagonal: 20-150mm.

Channel & angle steel available.

Open Structure, Convenient Loading & Unloading

Tube cutting and plate cutting combined in one machine. Not only help user save purchasing cost 30%~50%, but also save 50% working space.

Overseas After-sales Services

XTLASER Global Services

Since 2017, XTLASER service activities have been officially launched, creating a " 30 minute quick response, 3 hour service " after-sales service chain to provide customers with a " 24-hour " comprehensive service guarantee for worry free production. At present, XTLASER has established over 40 service outlets worldwide, and the " 0 Worry " global service line activity is underway.

H series and HT series 3000w fiber laser cutting machines can achieve fast delivery in 3 days , and T series professional pipe cutting machines can achieve fast delivery in 5-7 days . We guarantee that every customer receives the machine quickly and with high quality.

Provide you with overseas after-sales service			United States	South Korea	South Africa
Germany	Australia	the United Kingdom	Pakistan	India
Brazil	Saudi Arabia	Spain	Thailand	Vietnam
Russia	Malaysia	Turkey	Mexico	Etc
