Quick Details
-
Dimension(L*W*H):
-
1600*800*1400mm
-
Weight (KG):
-
219 kg
-
Product name:
-
Self loading forklift
-
Load capacity:
-
500kg
-
Color:
-
Green or customized
-
Lifting height:
-
1-1.5m
-
Operator Type:
-
Stand-on/walkie
-
Driving type:
-
Manual driving
-
Lifting type:
-
Electrical driving
-
Operation Type:
-
semi electric
-
Brand:
-
NOELIFT
-
Key words:
-
self loader, innolift stacker
Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NOELIFT
-
Dimension(L*W*H):
-
1600*800*1400mm
-
Weight (KG):
-
219 kg
-
Product name:
-
Self loading forklift
-
Load capacity:
-
500kg
-
Color:
-
Green or customized
-
Lifting height:
-
1-1.5m
-
Operator Type:
-
Stand-on/walkie
-
Driving type:
-
Manual driving
-
Lifting type:
-
Electrical driving
-
Operation Type:
-
semi electric
-
Brand:
-
NOELIFT
-
Key words:
-
self loader, innolift stacker

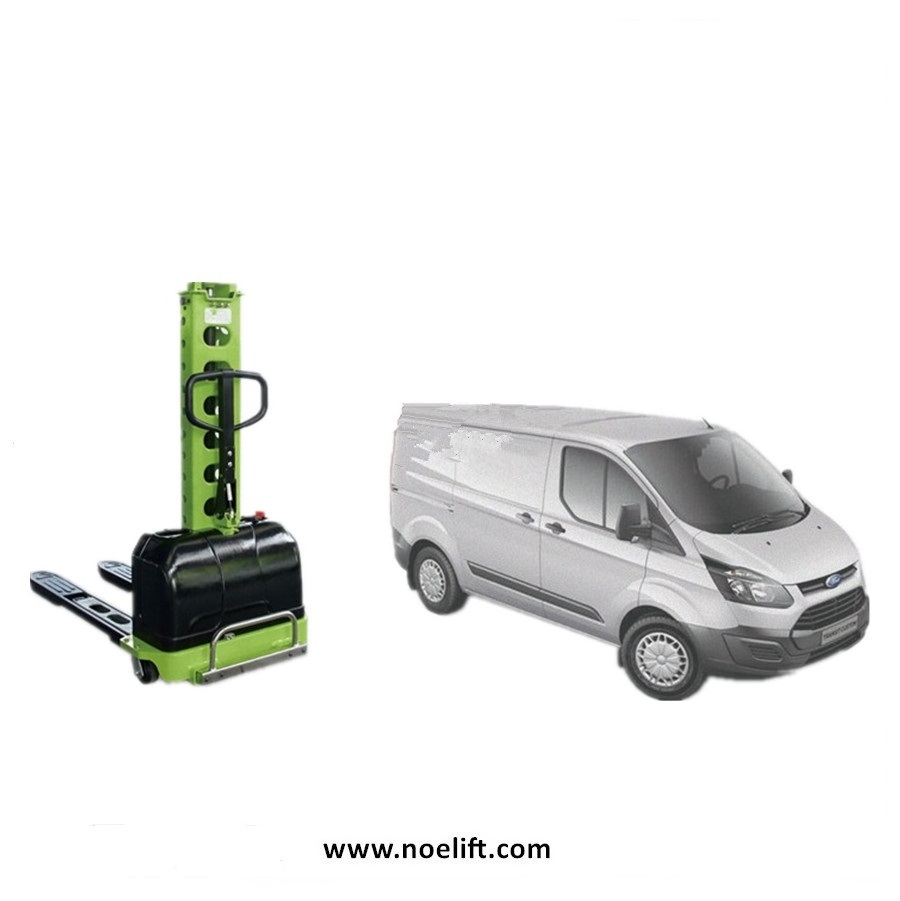

The self loader/self lift stacker/self loading forklift is a Pallet & Freight loader that is designed for vans and other commercial vehicles.
It is the only Manual lift loader that lifts a wide range of goods to a range of heights and then lifts itself in and out of the delivery vehicle.
load capacity: 500kg, lift height, 800mm, 1m, 1.2 & 1.3m optional.
1. Steering Chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance;
safe operation and no pollution;
4. Explosion-proof valve design
down more stable and reliable;
5. Over discharge protection, extending battery life.
Responsible
Workplace managers have a responsibility to eliminate unsafe manual handling practices..
Some of the benefits are reduced insurance premiums and improved employee wellbeing and performance.
With Noelift equipment used by major companies in Europe, the reputation is excellent.
Operation video on Youtube: https://www.youtube.com/watch?v=MLzFcMTpmD4
https://www.youtube.com/watch?v=U-f4_vLXEyk
| 1 | Model | CDD05Z | ||
| 2 | Brand | NOELIFT | ||
| 3 | Operation | Manual Driving, Electrical Lifting | ||
| 4 | Capacity | 500Kg | 500Kg | 500Kg |
| 5 | Weight | 193Kg | 200Kg | 219Kg |
| 6 | Lift Height | 800mm | 1000mm | 1300mm |
| 7 | Height in Lowerd Position | 1200mm | 1400mm | 1600mm |
| 8 | Overall length | 1600mm | 1600mm | 1600mm |
| 9 | Overall width | 786mm | 786mm | 786mm |
| 10 | Fork Length | 1250mm | 1250mm | 1250mm |
| 11 | Fork Width | 540mm | 540mm | 540mm |
| 12 | Material of Wheels | Polyurethane | Polyurethane | Polyurethane |
| 13 | Steering wheel size | 100x45 | 100x45 | 100x45 |
| 14 | Loading wheel size | 70x60 | 70x60 | 70x60 |
| 15 | Motor Power Lifting | 0.7kw | 0.7kw | 0.7kw |
| 16 | Battery | 12/45V/Ah | 12/45V/Ah | 12/45V/Ah |
| 17 | Charger Battery | inclusive | inclusive | inclusive |
| 18 | Brake Type | Mechanical | Mechanical | Mechanical |
| 19 | Lifting speed | 80Mm/s | 80Mm/s | 80Mm/s |
| 20 | Descend speed | 90Mm/s | 90Mm/s | 90Mm/s |
| 21 | Turning radius | 1100Mm | 1200Mm | 1200Mm |
Packaging & Shipping: packed with thick plastic film+cardboard+wood pallet.
Delivery time: 20 days after 30% deposit received.
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warrarnty, spare parts delivery within one week for free.
Contact: kay tel/whatsapp: +86 13221837130 web: www.noelift.com
