Quick Details
-
Production Capacity:
-
100sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
iGOLDENCNC
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
3700mm*2200mm*1800mm
-
Weight:
-
2300 kg
-
keywords:
-
bridge saw cnc stone cutting machine
-
Working area:
-
3000*2000mm
-
Control System:
-
CNC control System
-
Motor power:
-
4kw
-
Transmission:
-
X/Y rack and pinion, Z ball screw
-
Spindle:
-
water cooling spindle and cutters
-
Lathe Structure:
-
T-slot Square Tube
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Applicable material:
-
Granite Tombstone Stone Edge Polishing
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
4.5KW
-
Cutting thickness (max):
-
400mm
-
Production Capacity:
-
100sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
iGOLDENCNC
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
3700mm*2200mm*1800mm
-
Weight:
-
2300 kg
-
keywords:
-
bridge saw cnc stone cutting machine
-
Working area:
-
3000*2000mm
-
Control System:
-
CNC control System
-
Motor power:
-
4kw
-
Transmission:
-
X/Y rack and pinion, Z ball screw
-
Spindle:
-
water cooling spindle and cutters
-
Lathe Structure:
-
T-slot Square Tube
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Applicable material:
-
Granite Tombstone Stone Edge Polishing
Product Description

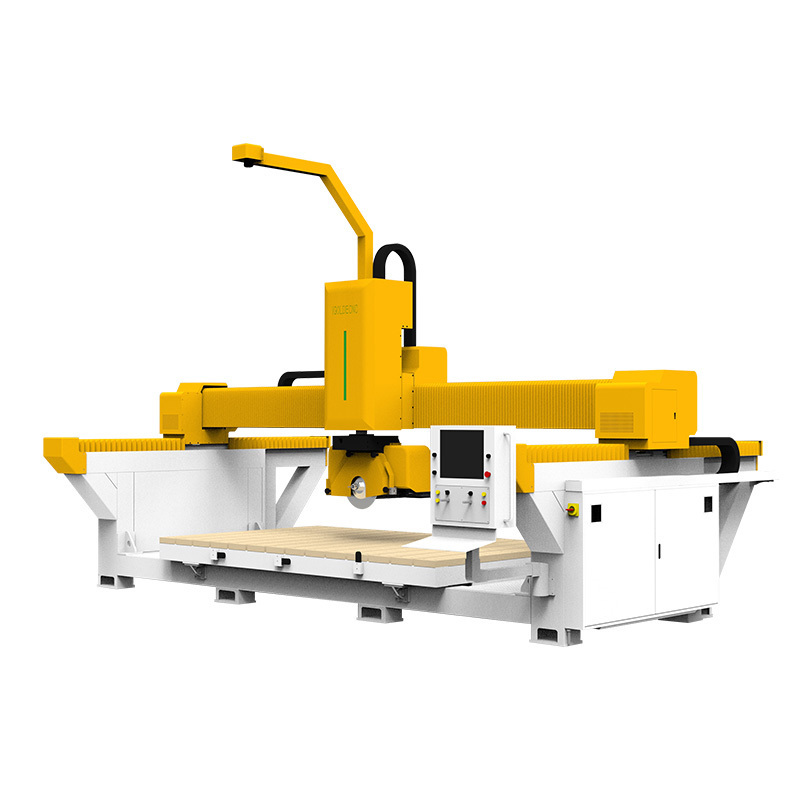

Bridge saw type cnc stone cutting machine for marble granite quartz kitchen countertop
It can be used for cutting, chamfering, polishing, slotting, drilling and arc grinding etc. with easy operation and more practicability.
Specification
|
Description
|
Parameters
|
|
Working area
|
3000*2000*350mm
|
|
Table size
|
3000*2000mm
|
|
Transmission
|
X/Y rack and pinion, Z ball screw
|
|
Table structure
|
T Slot
|
|
Spindle power
|
4.5KW
|
|
Spindle speed
|
24000r/min
|
|
Travelling speed
|
10m/min
|
|
Working speed
|
8m/min
|
|
Working Delicacy
|
0.005mm
|
|
Repositioning Accuracy
|
0.05mm
|
|
Driving Motor
|
Servo brand
|
|
Control System
|
Special cnc control System
|
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
Power(without spindle)
|
1500W
|
|
Voltage
|
AC380/50HZ
|
|
Tilting table and loading wheel
|
With
|
|
Software
|
Artcam/Type3,other CAD/CAM
|
Details Images
Samples
Recommend Products
What is stone machine
Stone cnc machine is used for granite, marble, jade, sapphire, artificial stone, tombstones, milestones and other types of stone processing, the stone cutting machine can achieve various processing functions, 3D relief, and line carving, bevel cutting, drilling 2D processing. Such as lettering (pattern), relief, image carving, cutting, etc. Simple operation, low energy consumption, low noise, high efficiency and high precision. Widely used in inscriptions, stone carving, construction, decoration, kitchen and bathroom, furniture, signs, handicrafts and other industries.
Stone cnc machine including：economical type 3 axis or 4 axis stone engraving machine; 4th axes or 5 axis bridge saw type stone cutting machine; heavy duty 3015 or 3020 kitchen cabinet stone machining center with atc function. All the specifications of machine can customized according customer's needs.
