2. one Relay Output；
3. Editable Product Design；
4. 4 Digital Big Number Display.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Depends
-
Model Number:
-
Depends
-
Supply Voltage:
-
220V
-
Operating Temperature:
-
10~+55
-
Dimensions:
-
80*80/120*120
-
Type:
-
Digital Ammeter
-
Product name:
-
Single Phase Ammeter
-
Warranty:
-
12 Months
-
Certificate:
-
IEC
-
Respond Time:
-
≤4s
-
Packaging:
-
Blister Package
-
Installation:
-
Clamp
-
Application:
-
Measure Current or Voltage
-
Measuring Current Range:
-
0~50A
-
Display color:
-
Depends
Quick Details
-
Measuring Range:
-
0`380V
-
Accuracy Class:
-
1.0~2.5 class
-
Place of Origin:
-
Zhejiang Wenzhou
-
Brand Name:
-
Depends
-
Model Number:
-
Depends
-
Supply Voltage:
-
220V
-
Operating Temperature:
-
10~+55
-
Dimensions:
-
80*80/120*120
-
Type:
-
Digital Ammeter
-
Product name:
-
Single Phase Ammeter
-
Warranty:
-
12 Months
-
Certificate:
-
IEC
-
Respond Time:
-
≤4s
-
Packaging:
-
Blister Package
-
Installation:
-
Clamp
-
Application:
-
Measure Current or Voltage
-
Measuring Current Range:
-
0~50A
-
Display color:
-
Depends
Product Description

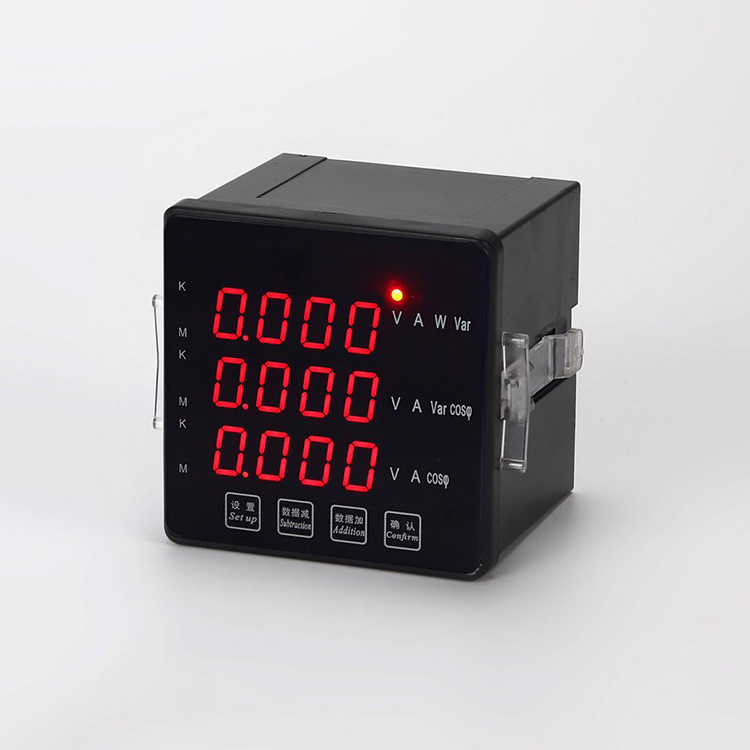

Digital Panel meter(Ammeter and Voltmeter)
It can protect generator from the data out of range such as frequency, current and voltage, and send a signal to control system. In the operation, the meter also can measure and display data.
Function Code:
|
I--AC current
|
U--AC Votlage
|
|
DI--DC current
|
DU--DC voltage
|
|
F--Frequency
|
E--Engery
|
|
H--Power Factor
|
P--Active power
|
|
Q--wattless power
|
IU--IU Combination
|
Detailed Images
Product Function
Technical Parameter
|
Accuracy Class
|
0.5
|
|
Power Supply
|
AC 220, AC 380, DC24, DC48, AC/DC 80 to 265
|
|
Switch Relay
|
DC 30V/3A AC 220V/3A
|
|
Installation Type
|
Embedded
|
|
Starting Current
|
0.3%
|
|
Power Comuption
|
≤5 VA
|
|
Display Light
|
Red/Green
|
Product Dimensions
|
Mode
|
Installation Size
|
Dimension
|
Phase
|
|
120*120 type
|
112*112 mm
|
120*120*80 mm
|
Single/Three
|
|
96*96 type
|
92*92 mm
|
96*96*80 mm
|
Single/Three
|
|
80*80 type
|
77*77 mm
|
80*80*80 mm
|
Single/Three
|
|
72*72 type
|
67*67 mm
|
72*72*80 mm
|
Single/Three
|
|
48*48 type
|
45*45 mm
|
48*48*80 mm
|
Single
|
|
96*48 type
|
92*45 mm
|
96*48*85 mm
|
Single
|
