Quick Details
-
Place of Origin:
-
shandong
-
Dimension(Long * Breadth * High):
-
2950*1500*2150
-
Machine Weight:
-
1330 kg
-
Bucket capacity:
-
0.4
-
Marketing Type:
-
New Product 2023
-
Engine model:
-
Perkins
-
No. of cylinders:
-
3 cylinder
-
Net Power:
-
18.2kw
-
working system pressure:
-
250bar
-
Rated loading capacity:
-
400KG
-
working system Flow rate:
-
62.4L/min
-
Wheelbase:
-
1150mm
-
Weight:
-
1400kg
-
Angle of departure:
-
23°
-
Driving system Flow rate:
-
62.4L/min
Quick Details
-
Engine Brand:
-
Perkins
-
Power:
-
18.2kw
-
Brand Name:
-
yuanxing
-
Place of Origin:
-
shandong
-
Dimension(Long * Breadth * High):
-
2950*1500*2150
-
Machine Weight:
-
1330 kg
-
Bucket capacity:
-
0.4
-
Marketing Type:
-
New Product 2023
-
Engine model:
-
Perkins
-
No. of cylinders:
-
3 cylinder
-
Net Power:
-
18.2kw
-
working system pressure:
-
250bar
-
Rated loading capacity:
-
400KG
-
working system Flow rate:
-
62.4L/min
-
Wheelbase:
-
1150mm
-
Weight:
-
1400kg
-
Angle of departure:
-
23°
-
Driving system Flow rate:
-
62.4L/min
Product Details

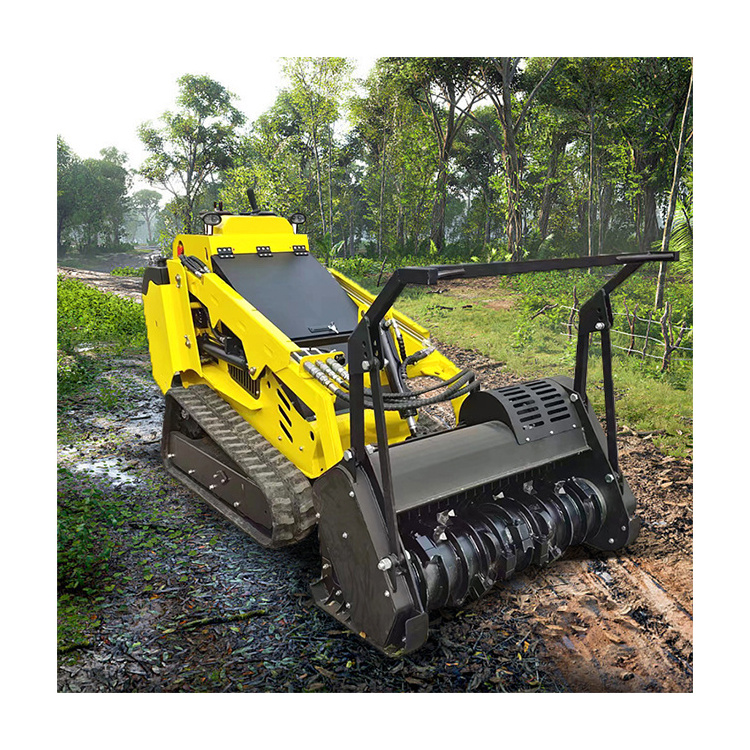

TS25 400kg Mini Skid Steer Loader
Perkins 18.4KW 3-cylinder Diesel Engine (EPA Certification)
PWG Brand Main Hydraulic Pump
HYDROCONTROL Brand Multi-way Hydraulic Valve
WHITE Brand Hydraulic Drive Motor
Loading capacity 4000KG, Machine Weight 1400KG
Specification
|
Engine
|
Engine model
|
Perkins diesel engine
|
|
|
No. of cylinders
|
3 cylinder
|
|
|
Engine Power
|
18.4kw
|
|
Dimensions
|
Operating height
|
2695mm
|
|
|
Height to bucket hinge pin
|
2160mm
|
|
|
Height to top
|
1590mm
|
|
|
Overall length with GP bucket
|
2817mm
|
|
|
Overall length without bucket
|
2165mm
|
|
|
Wheelbase
|
1150mm
|
|
|
Overall width
|
1060mm
|
|
|
Mini ground clearance
|
220mm
|
|
|
Angle of departure
|
23°
|
|
|
Rated loading capacity
|
400kg
|
|
|
Machine weight
|
1330kg
|
|
Hydraulic system
|
Working system pressure
|
250 bar
|
|
|
Working system Flow rate
|
62.4 L/min
|
|
|
Driving System pressure
|
250 bar
|
|
|
Driving system Flow rate
|
62.4 L/min
|
