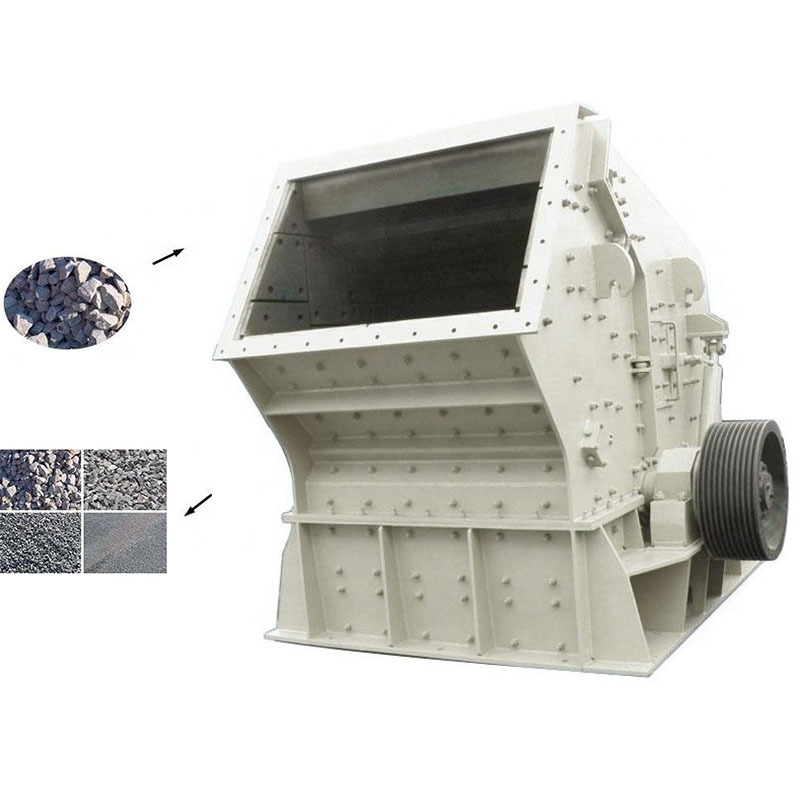

Factory Price Dolomite Crushing Machine Rock Direct Primary Impact Crusher

Factory Price Dolomite Crushing Machine Rock Direct Primary Impact Crusher

FOB Reference Price: Get Latest Price

≥1 Sets

US $2500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ShuGuang

Weight:: 5000 KG

Marketing Type:: Hot Product

Product name:: impact crusher machine

Model:: PF-1010

After-sales Service Provided:: Engineers available to service machinery overseas

Max feed size:: 300 mm

Feed size:: 400*830 mm

Size:: 1000*400 mm

Capacity:: 50-80 t/h

Power:: 55-75 KW

Payment term:: T/T,L/C

MOQ:: 1 piece

Quick Details

Application:: water,electricity,high way

Capacity(t/h):: 50-80

Place of Origin:: Henan, China

Brand Name:: ShuGuang

Weight:: 5000 KG

Marketing Type:: Hot Product

Product name:: impact crusher machine

Model:: PF-1010

After-sales Service Provided:: Engineers available to service machinery overseas

Max feed size:: 300 mm

Feed size:: 400*830 mm

Size:: 1000*400 mm

Capacity:: 50-80 t/h

Power:: 55-75 KW

Payment term:: T/T,L/C

MOQ:: 1 piece

Product Description

Impact Crusher is widely applied in mining, transportation, energy, construction and chemical industry. The ending material can be used directly for its wonderful cubic shape and excellent performance.

Suitable material that can be crushing : Limestone, granite, marble, basalt, quartzite, river pebble, iron ore, copper ore,bluestone,sandstone,shale,construction waste, coal gangue, coal, ore tailings, artificial sand debris, etc.

Main Features
1.Simple structure, small volume, light weight, large capacity, low production cost. adapt to crusher the high hardness material;
2.Counterattack plate and plate hammer gap can convenient adjustment, so can effective control of the material particle size and the particle shape is well;
3.High Crushing function and productivity, all parts low abrasion, high comprehensive benefit;
4.Keyless connection, maintenance is convenient, economic and reliable.

Working Principle

When impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers with hightech raw material.
When the crushed materials get into the impact crusher inner space where the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously.

And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact crusher chamber repeatedly.
The process won't stop till the materials in the impact crusher are crushed to the required size and then discharged from outlet.

Main Parameters

Model	Feed opening(mm)	Max. feeding size length(mm)	Capacity(t/h)	Motor power(kw）
PF-0607	320*770	100	10-20	30
PF-0807	400*730	300	15-30	30-45
PF-1008	400*830	300	30-50	37-55
PF-1010	400*1080	350	50-80	55-75
PF-1210	400*1080	350	70-120	110-132
PF-1212	400*1300	350	100-150	132-160
PF-1214	400*1430	400	130-180	160-200
PF-1315	860*1520	500	160-250	180-260
PF-1320	860*2030	500	300-350	300-375

Our Company

Introduction

Zhengzhou Shuguang Heavy Machinery Co., Ltd. was founded in 1993, the company headquarters is located in the beautiful city of Zhengzhou shangjie mechanical processing zone, is a company dedicated to all kinds of milling machine,crushers,shredder,dryers and mixers. Our company has sophisticated technical equipment, all kinds of machine tools dozens of Taiwan. There are dozens of outstanding technical staff, specifically responsible for the company's products for design and research and development. Over the past 20 years, the company uphold the scientific management of modern enterprises, Seiko manufacturing, forge ahead, pioneering and innovative, rapid rise of domestic machinery manufacturing industry as a well-deserved leader.
