6.Control system:
remote management, intelligent control, equipment with alarm correction, operation monitoring, and other
functions.
functions.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
22KW
-
Dimension(L*W*H):
-
3000*3000*5000mm
-
Weight:
-
1000 kg
Quick Details
-
Machine Type:
-
Batching machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SWANTECH
-
Power:
-
22KW
-
Dimension(L*W*H):
-
3000*3000*5000mm
-
Weight:
-
1000 kg

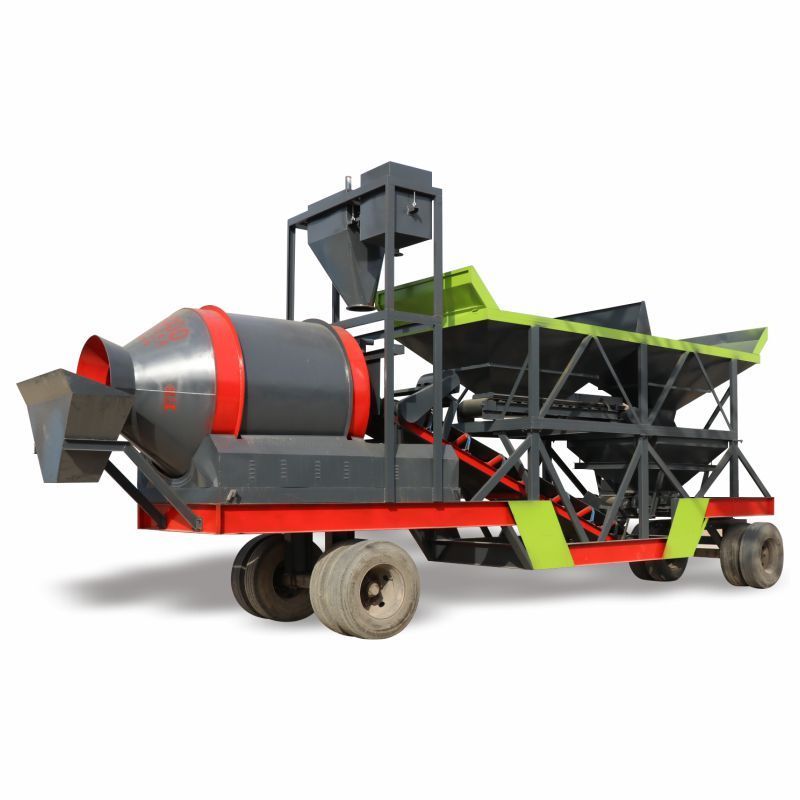

50m3/H Mobile Asphalt Concrete Mixing Plant Stabilized Soil Mixing Plant Portable
Mobile concrete mixing plant is a mobile concrete production equipment integrating batching, weighing, conveying, mixing, discharging and automatic control system. Its production process and operation method are the same as that of stationary concrete mixing plant, but it has the advantages of flexible movement and easy disassembly. When moving the construction site, except for screw conveyor and cement silo, other parts need not be disassembled.
Specification
The components of JZM concrete mixing plant are:
1. JZM series mixer
2. Aggregate, powder storage, weighing and conveying system
3. Water supply, weighing and drainage system
4. Additive storage, supply and weighing system
5. Mixed dust collecting system
6. Main tower structure
7. Pneumatic system
8. Automatic control system
|
Model
|
50
|
Productivity
|
50m³/h
|
|
Mixer model
|
JZM1000
|
Discharge height
|
1.5m
|
|
Mixing power
|
2X11KW
|
Max.aggregate size
|
60-80mm
|
|
Batching model
|
steelwork
|
Aggregate type
|
2
|
|
Max. cement weigh
|
500kg
|
Max. water weighing
|
250kg
|
|
MaX. additive weigh
|
20kg
|
Max. Aggregate weighing
|
3000kg
|
|
JZM1000
|
Drum Mixer
|
JZM1000
|
||
|
|
Drive motor
|
2*11kw
|
||
|
|
Mixing drum size
|
1.8MX1.8M
|
||
|
|
Reducer
|
XWD-7
|
||
|
|
Mixing layer platform
|
2.1MX2.5M
|
||
|
|
Tire
|
12R22.5
|
||
|
AGGREGATE CONVEYING SYSTEM
|
Aggregate conveying systems
|
|
||
|
TWO-COMPARTMENT
PLD1200B
|
Storage silo
|
4000KG
|
||
|
|
Metering hoppers
|
3000KG
|
||
|
|
Sensors
|
|
||
|
|
Drive systems
|
5.5KW
|
||
|
|
Conveyor belts
|
B650X10600
|
||
|
|
Racks
|
|
||
|
|
Screw tensioner
|
|
||
|
|
Roller
|
|
||
|
|
Drive systems
|
5.5KW
|
||
|
|
Conveyor belts
|
B650X9000
|
||
|
INCLINED BELT CONVEYOR
|
Racks
|
|
||
|
|
Screw tensioner
|
|
||
|
|
Roller
|
|
||
|
MEASUREMENT SYSTEM
|
|
|
||
|
CEMENT WEIGHING
|
Measuring hoppers
|
600X900
|
||
|
|
Transducers
|
500KG
|
||
|
|
Pneumatic Butterfly Valve
|
300MM
|
||
|
WATER WEIGHING
|
Measuring hoppers
|
600X600
|
||
|
|
Sensor
|
300KG
|
||
|
|
Pneumatic Discharge
|
DN80
|
||
|
AIR SYSTEM
|
Air pump
|
3KW/4KW
|
||
|
CONTROL SYSTEM
|
|
|
||
|
CENTRALIZED CONTROL SYSTEM FOR MIXING PLANT
|
Centralized control system
|
single-unit triple claim
|
||
|
|
50M wireless remote control
|
|
||
|
|
Operation control cabinet
|
|
||
|
|
Power control cabinet
|
|
||
|
|
Air Circuit Breaker
|
|
||
|
|
Contactor
|
|
||
|
|
Relay
|
|
||
|
|
Weighing Modules
|
|
||
|
|
Pushbuttons
|
|
||
|
|
Indicator Lights
|
|
||
|
|
Signal cable
|
RVVP
|
||
|
POWDER CONVEYING SYSTEM
|
|
|
||
|
SCREW CONVEYOR
|
Screw conveyor
|
Φ219X9m
|
||
Product Description
Features:
Stability and Durability: adapt and apply the most advanced technologies around the world;
Reliability: 30 years of experience in manufacturing concrete mixing plants;
Stationary modular structure, fast and easy installation;
JZM mixer, excellent mixing performance with high efficiency and high productivity;
Double computers with double controls, easy operation;
Excellent environmental protection, dust collection system, and anti-noise design
Details Images
1. Mixing system:
Equipped with high wear-resistant alloy mixing arm with High performance and impact resistance
2. Dosing system:
Automatic and precise dosing with high speed and simple operation Simple and strong control function
3. Smooth operation of the conveying system
, automatic and centralized control: continuous conveying, etc.
4. Measuring system:
Water, cement powder and admixture are measured by electronic scale: precise dosage and solid structure
Packing & Delivery
The company is located in Henan Province . It has in-depth cooperation with foreign customers to develop vehicles and help foreign
customers build CKD or SKD assembly workshops abroad.
We have many years of experience in vehicle exporting and have a professional foreign trade team in English, Arabic, and Russian;
our products are exported to Tanzania, Ghana, Brazil, Zimbabwe, Central Africa, Thailand, Myanmar, Uzbekistan, and other
countries. Our export products cover cargo trucks, sanitation trucks, used trucks and special trucks, providing foreign customers
with high-quality and reliable trucks and services.
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO
customers build CKD or SKD assembly workshops abroad.
We have many years of experience in vehicle exporting and have a professional foreign trade team in English, Arabic, and Russian;
our products are exported to Tanzania, Ghana, Brazil, Zimbabwe, Central Africa, Thailand, Myanmar, Uzbekistan, and other
countries. Our export products cover cargo trucks, sanitation trucks, used trucks and special trucks, providing foreign customers
with high-quality and reliable trucks and services.
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO
