Quick Details
-
Switch Function:
-
On-Momentary
-
Actuator Type:
-
Round
-
Circuit:
-
Single pole double throw
-
Mounting Type:
-
Through hole
-
Operating Force:
-
40gf
-
Release Force:
-
3gf
-
Certification:
-
ROHS SGS ISO9001/14001
-
Feature:
-
Lineup of 5A type for high load applications
-
Mechanical Life:
-
30 million cycles
Quick Details
-
Max. Voltage:
-
125V AC
-
Place of Origin:
-
Zhejiang, China
-

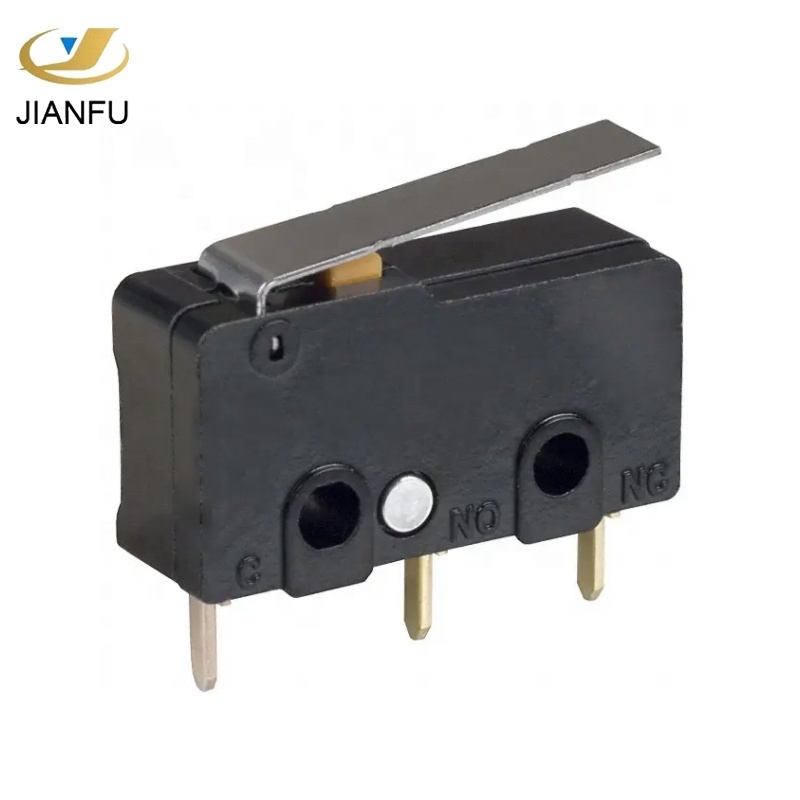

Type:
-
Snap act switch
-
Switch Function:
-
On-Momentary
-
Actuator Type:
-
Round
-
Circuit:
-
Single pole double throw
-
Mounting Type:
-
Through hole
-
Operating Force:
-
40gf
-
Release Force:
-
3gf
-
Certification:
-
ROHS SGS ISO9001/14001
-
Feature:
-
Lineup of 5A type for high load applications
-
Mechanical Life:
-
30 million cycles
Dimensions
PCB layout
Circuit diagram
| Specifications | |||||||
| Permissible operating speed: | Pin plunger models:0.1 mm to 1m/s | ||||||
| Insulation resistance: | 100MΩ min.(at 500VDC with insulation tester) | ||||||
| Contact resistance: | 100mΩmax. | ||||||
| Mechanical Life: | 30,000,000 operations min. | ||||||
| Electrical Life: | 200,000 operations min. | ||||||
| Poles and Throws: | 1-pole 2-throw | ||||||
| OPERATING TEMPERATURE: | –25 °C to +85°C | ||||||
Q1.Are you a factory or trading company?
A1.We are a manufacturer which specializes in switch for 17 years, Our price is pretty competitive.
Q2.How does your factory do regarding quality control?
A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .
Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.
Q4.Can you provide some samples for me?
A4.We can provide free samples to you,but you should afford the shipping fee yourself.
Q5.What is the price of shipping?
A5.Depending upon the port of delivery, price varies.
Q6.Do you accept small orders?
A6.Of course.We will do our best to serve you no matter what the quantity is.
