Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GABLI
-
Model Number:
-
XB5
-
IP level:
-
IP65
-
Product name:
-
Push Button Switch
-
Material:
-
Plastic+Silver Alloy
-
Operation type:
-
Momentary Flat
-
Button color:
-
Red Yellow Blue Green White black
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GABLI
-
Model Number:
-
XB5
-
IP level:
-
IP65
-
Product name:
-
Push Button Switch
-
Material:
-
Plastic+Silver Alloy
-
Operation type:
-
Momentary Flat
-
Button color:
-
Red Yellow Blue Green White black

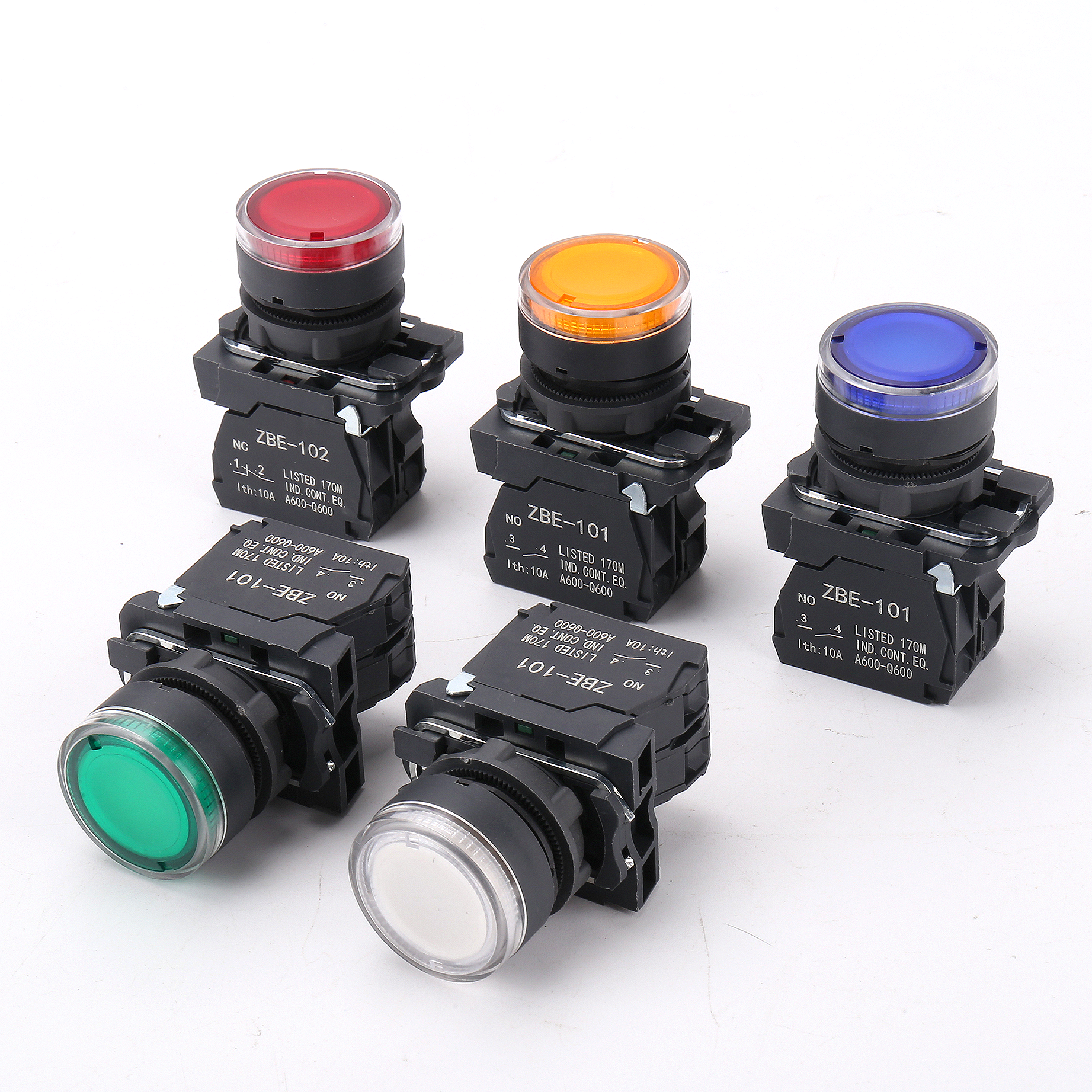

XB5 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage,used for the control of magnetic starter, contactor, relay and other electric circuit.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly. Economical plastic type can be used in acid environment. Protective Degree The standard is IP40 and some types can reach IP67 with the seal cover.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly. Economical plastic type can be used in acid environment. Protective Degree The standard is IP40 and some types can reach IP67 with the seal cover.
1. Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃
2. Operating humidity:45~85%rh; 45~85%rh(no condensation)
3. Contact resistance: ≤30mΩ
4. Insulation resistance: ≥100M
5. The highest Dielectric streagth:3000VAc50hz
6. Vibration resistance: 50hz,Amplitude1.0mm
7. Shock resistance: >10g
8. Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9. Life---Electrical: >500000tmes
10. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
12. Pollution Degree: 3 degree
2. Operating humidity:45~85%rh; 45~85%rh(no condensation)
3. Contact resistance: ≤30mΩ
4. Insulation resistance: ≥100M
5. The highest Dielectric streagth:3000VAc50hz
6. Vibration resistance: 50hz,Amplitude1.0mm
7. Shock resistance: >10g
8. Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9. Life---Electrical: >500000tmes
10. Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11. Operation: 80gf-2200gf, according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
12. Pollution Degree: 3 degree
|
Mounting hole size:
|
|
|
|
dia 22mm
|
|||
|
Switch Rating:
|
|
|
|
10A/380V
|
|||
|
Operation Type:
|
|
|
|
Maintained or spring return
|
|||
|
Protection Degree:
|
|
|
|
IP65
|
|||
|
Switch Configuration:
|
|
|
|
NO or NC
|
|||
|
Shell Material:
|
|
|
|
Plastic
|
|||
|
Switch Head Shape:
|
|
|
|
Flat round/Rotary
|
|||
|
color：
|
|
|
|
Red/Yellow/Blue/Green/White/Black
|
|||
|
Common description for waterproof push button switch
|
|
|
|
Momentary
|
When you push switch and then move your finger, the actuator will back to the original position.
|
|
|
Latching
|
When you press the button, it keeps pressed until you press again
|
|
|
N.O.
|
Normally Open circuit
|
|
|
N.C.
|
Normally Closed circuit
|
|
|
SPST
|
Single Pole Single Throw
|
|
|
DPDT
|
Double Pole Double Throw
|
|
