Quick Details
-
Brand Name:
-
MPP SOLAR
-
Model Number:
-
PCM3024
-
Max PV Power:
-
600w
-
Max PV Voltage:
-
75v
-
Rated Voltage:
-
24V
-
25A MPPT solar controller:
-
12 24v panel
-
Max charging current : 25A:
-
Max input:75V
-
up to 600w solar power:
-
24V battery system
-
LCD monitor:
-
wide mppt range
Quick Details
-
Type:
-
MPPT
-
Application:
-
Solar System Controller
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
MPP SOLAR
-
Model Number:
-
PCM3024
-
Max PV Power:
-
600w
-
Max PV Voltage:
-
75v
-
Rated Voltage:
-
24V
-
25A MPPT solar controller:
-
12 24v panel
-
Max charging current : 25A:
-
Max input:75V
-
up to 600w solar power:
-
24V battery system
-
LCD monitor:
-
wide mppt range
PRODUCT DESCRIPTION:

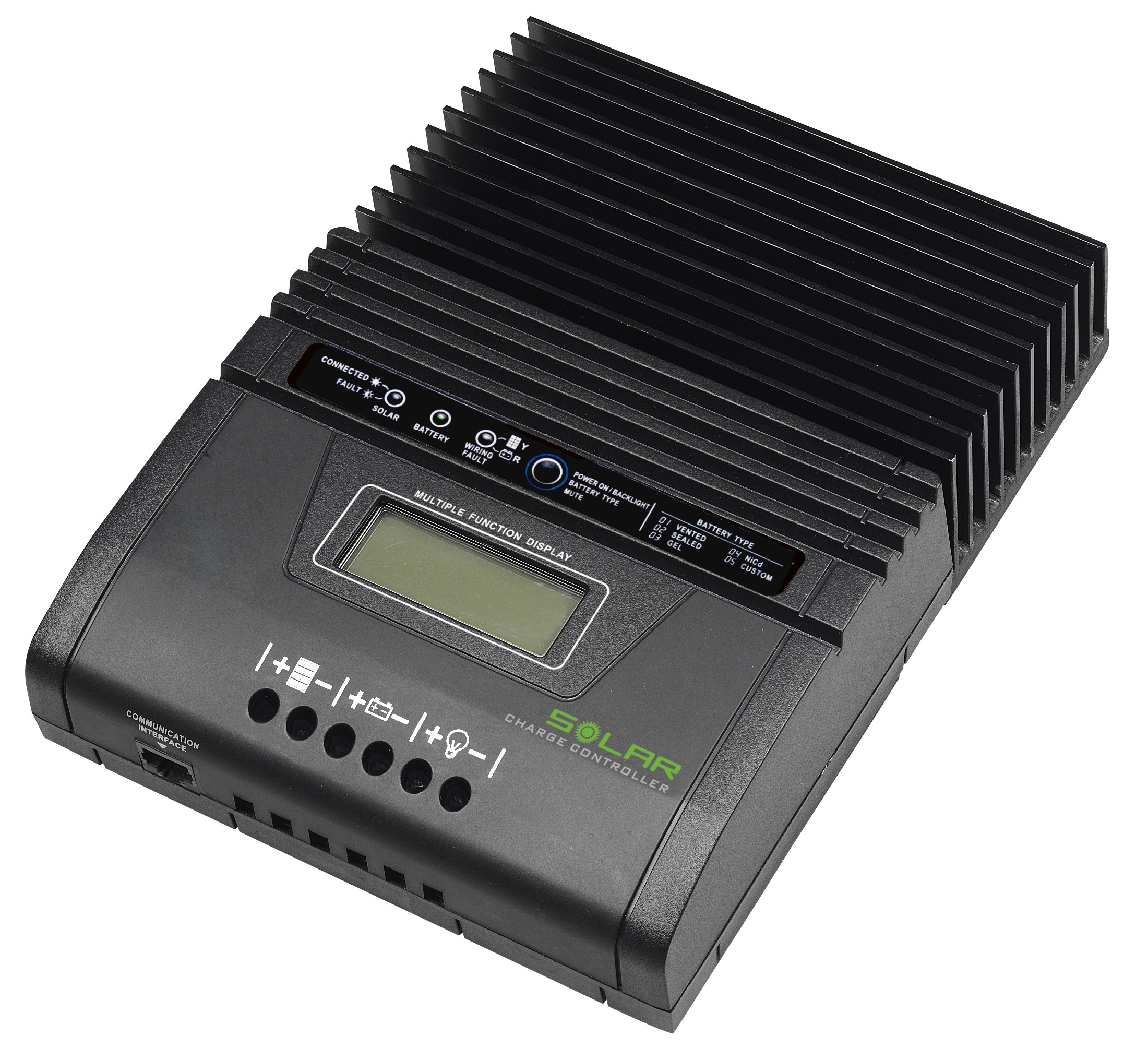

PCM3024 is an MPPT solar charge controller with maximum charging power of 25A . It is compatible with 24V battery systems as well as 12V/18V/20V/24V/32V PV modules (nominal voltage). It is capable of supporting up to 600W PV module with an maximum efficiency of 97%. It is suitable for operators of small, compact PV system who is looking to extract the MAXIMUM POWER from the PV modules.
MAIN FEATURES:
- NEW! Wider MPPT range allows better compatibility with different panels Vmp=30~66V
- NEW! Toroidal transformer improves efficiency
- NEW! LVD/LVR/HVD/HVR parameters
- Integrated MPPT capability increases performance by 20~30%
- Intelligent 3-stage charging optimizes system performance
- Designed for 24V systems (max 600w)
- Charging power up to 25A to reduce overall charging time
- Maximum efficiency 97%
- Automatic load detection
- Automatic battery voltage detection
- Support all popular battery types including wet, sealed, AGM, Gel, or NiCd batteries
- Large LCD displays for system parameters
- Full battery protections
- Suitable for vertical mounting
S PECIFICATIONS:
|
PCM-3012 |
PCM-3024 |
|
|
ELECTRICAL SPECIFICATIONS |
||
|
MPPT Range @ Operating Voltage |
15V~33V@12V |
30V~66V@24V |
|
Max PV Input Voltage |
50V |
75V |
|
Max PV Input Current |
18A |
|
|
Max PV Input Power |
300W |
600W |
|
Recommended Battery Type |
Sealed Lead-Acid Batteries, AGM or Gel |
|
|
Nominal Battery Voltage |
12V |
24V |
|
Max Charging Current |
25A |
|
|
Ripple Voltage |
<± 1V |
|
|
Max Efficiency |
0.97 |
|
|
Standby Power |
<1W |
<2W |
|
Charging Schemes |
3 stages, bulk, absorption and floating |
|
|
Protections |
Battery Reverse Polarity, Reverse Current at Night, |
|
|
LVD/LVR, HVD/HVR, Overload (>110%) |
||
|
LCD Indicator |
Solar and Output Power, Battery Voltage, Charging Current, and Fault Conditions |
|
|
LED Indicator |
3 LED |
|
|
GENERAL SPECIFICATIONS |
||
|
Conformity / EMC |
CE / EN61000-6-1, EN61000-6-3 |
|
|
Operating |
-20°C~55°C |
|
|
Enclosure Type |
Indoor, IP43 |
|
|
Working Humidity |
100%RH Max Non-Condensing |
|
|
Dimension |
135*170*57.5mm |
200*170*57.5mm |
|
Weight |
0.92Kg |
1.85Kg |
WARRANTY:
- 100% QC before shipment. Product designed by Taiwanese company using reliable quality component.
- Standard 1 year product warranty
- Contact us directly for warranty issues.
