Quick Details
-
LED Light Source:
-
SMD2835
-
Lamp Luminous Efficiency(lm/w):
-
100
-
LED Keywords:
-
led G24 led light
-
LED driver type:
-
isolated internal driver
-
Socket type:
-
G24D/G24Q(2PIN/4PIN)
-
Warranty:
-
3 years
-
PF value:
-
>0.95
-
CFL plc replacement:
-
26W
Quick Details
-
Input Voltage(V):
-
100-277
-
Place of Origin:
-
Guangdong, China
-
Working Temperature(℃):
-
-30 - 50, -20 - 40
-
LED Light Source:
-
SMD2835
-
Lamp Luminous Efficiency(lm/w):
-
100
-
LED Keywords:
-
led G24 led light
-
LED driver type:
-
isolated internal driver
-
Socket type:
-
G24D/G24Q(2PIN/4PIN)
-
Warranty:
-
3 years
-
PF value:
-
>0.95
-
CFL plc replacement:
-
26W
Pufa new products high quality led e27 G24 B22 360 degree beam angle 13w g24 led light
More information about g24 led
|
specification |
| Model NO. | PF-G24PLC7WF | PF-G24PLC9WF | PF-G24PLC11WF | PF-G24PLC13WF | |
| Power | 7W | 9W | 11W | 13W | |
| Lumen | 770lm | 990lm | 1200lm | 1400lm | |
| Dimension | 128MM | 138MM | 142MM | 165MM | |
| Light Source | 45pcs 2835 | 54pcs 2835 | 60pcs 2835 | 81PCS 2835 | |
| Volt. | 85V~265V | ||||
| Color | Warm White/ Pure White/ Cool White | ||||
| PF | >95 | ||||
| CRI | >84 | ||||
| Driver | Isolated Internal Driver | ||||
| Frequency | 50/60HZ | ||||
| Socket | G24(2PIN/4PIN) | ||||
| Materials | Aluminum+PC | ||||
| Warranty | 3 years | ||||
| Lifetime | 40000Hours | ||||
|
Features |
1. Passed CE RoHS Certificates
2. Special design with patents 360 degree beam angle
3. can be made with top lighting or without top lighting
4. with internal isolated driver, can be easily installed, replacement of traditional PLC bulbs and no subsidiary fixture
5. Wide range of available operating voltage(85V~265V) and low consumption
6. High PF value above 0.95,High CRI>84Ra
Please Note: our lamps can work with magnetic ballast

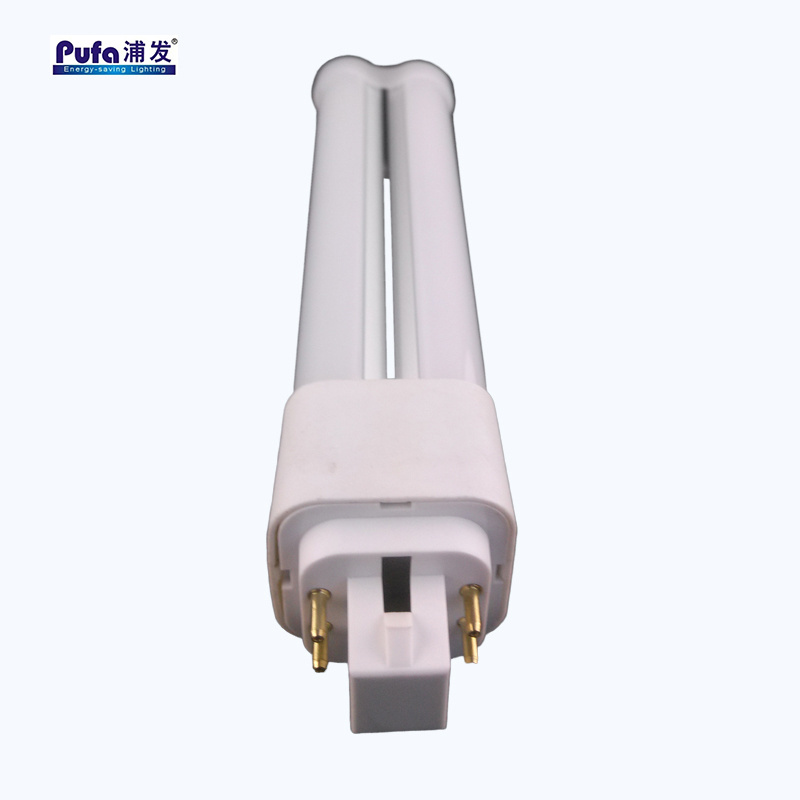

| 360degree G24 Photo |
E27/B22 NEW products
| Trading terms |
- We accept Western Union,T/T, L/C,PayPal (4% handing fee).
- Discount are negotiable according to your quantity
- MOQ:1 piece
- Three years' guarantee
| Packing&delivery info |
- Packaging:220*333*22cm/100pcs/ carton box,white box per pcs,about 0.12KG per piece
- Leadtime: 3-4days for samples,15-25days for mass order(mass order leadtime would
depend on the quantity)
Delivery : express will be used for samples,Air or Sea delivery will be used for mass order
DHL is usually adopt,and would cost about 3~4days
| Certification |
G24 360 degree beam angle PL lamp----- fully CE RoHS certificated
Pufa specializes in design and make mold by herself,and has got a series of design patents
