Quick Details
-
Model Number:
-

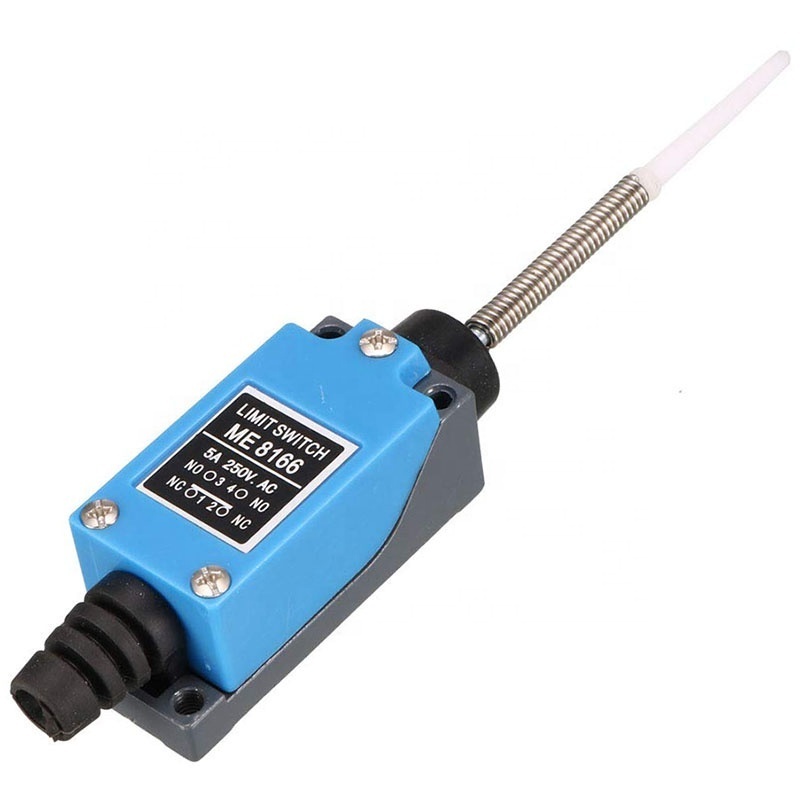

ME-8166
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-15~75
-
Max. Current:
-
5A
-
Color:
-
Black/blue
-
Contact resistance:
-
50m Max
-
Insulation Resistance:
-
100M Max.(at 500 VDC)
-
Humidity:
-
85%
-
ELectric Life:
-
10000 Times
-
Pack:
-
10pc/box
-
Certification:
-
CQC
Quick Details
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Binrong
-
Model Number:
-
ME-8166
-
Protection Level:
-
IP40
-
Operating Temperature:
-
-15~75
-
Max. Current:
-
5A
-
Color:
-
Black/blue
-
Contact resistance:
-
50m Max
-
Insulation Resistance:
-
100M Max.(at 500 VDC)
-
Humidity:
-
85%
-
ELectric Life:
-
10000 Times
-
Pack:
-
10pc/box
-
Certification:
-
CQC
| Model No. | ME-8166 |
| Actuator Action | Momentary |
| Actuator Type | Spring Rod |
| Contact Configuration | 1 NC + 1 NO(SPDT) |
| Power | AC 250V 5A |
| DC 115V 0.4A | |
|
Mounting Hole Diameter |
4.5mm / 0.18" |
| Hole Center Point Distance | 56 x 21mm / 2.2" x 0.8" (L*W) |
| Stick Length | ~81mm / 3.2" |
| Stick Platic Part Length | ~40mm / 1.6" |
| Body Dimension | ~89 x 28 x 26mm / 3.5" x 1.1" x 1" (L*W*T) |
| Main Color | Black, Gray, Blue |
| Material | Plastic, Metal & Rubber |
| Weight | 70g |
