Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 Years
-
Brand Name:
-
SUNWAY
-
Model Number:
-
SW550M-144
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Product Name:
-
550W Solar Panel
-
Solar Cell:
-
144 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Aluminum Alloy
-
Cable:
-
900mm PV Cable
-
OEM Order:
-
Acceptable
-
Color:
-
Black
-
Application:
-
Solar Power System
-
Keyword:
-
Monocrystalin Solar Panel
Quick Details
-
Cell size:
-
182*91mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
30 Years
-
Brand Name:
-
SUNWAY
-
Model Number:
-
SW550M-144
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Product Name:
-
550W Solar Panel
-
Solar Cell:
-
144 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Aluminum Alloy
-
Cable:
-
900mm PV Cable
-
OEM Order:
-
Acceptable
-
Color:
-
Black
-
Application:
-
Solar Power System
-
Keyword:
-
Monocrystalin Solar Panel
Product Description

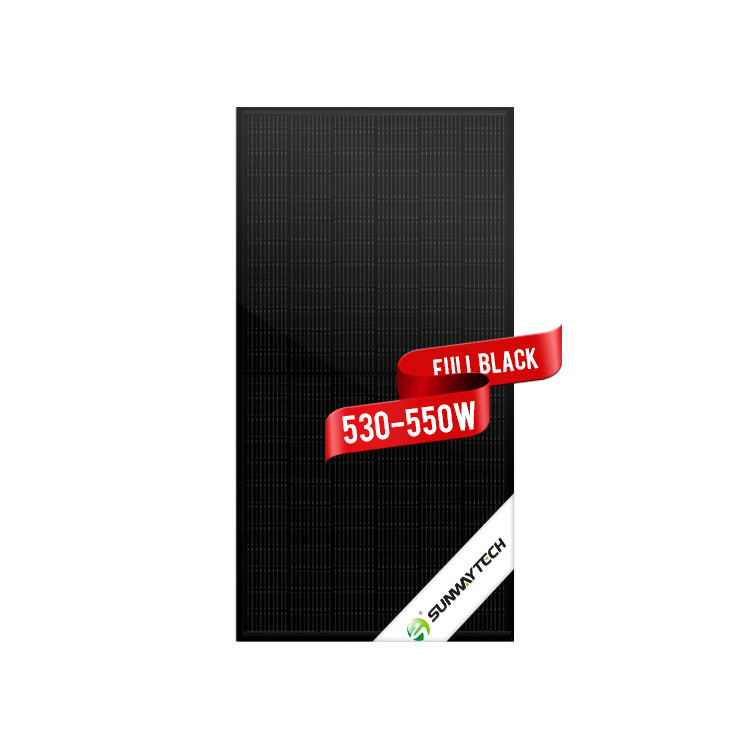

Sunway full black 550w mono half cell 144 182mm solar panels
Specifications
|
Electrical Parameters
|
|
|
|
|
|
|||||
|
Module
|
SW530M-144 ~ SW550M-144
|
|
|
|
|
|||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
|
|
|
|
|||||
|
Maximum Power Pmax (W)
|
530
|
535
|
540
|
545
|
550
|
|||||
|
Maximum Power Voltage (Vmp/V)
|
41.70
|
41.80
|
41.90
|
42.00
|
42.10
|
|||||
|
Maximum Power Current (Imp/A)
|
12.71
|
12.80
|
12.89
|
12.98
|
13.07
|
|||||
|
Open Circuit Voltage (Voc/V)
|
49.50
|
49.60
|
49.70
|
49.80
|
49.90
|
|||||
|
Short Circuit Current (Isc/A)
|
13.44
|
13.53
|
13.62
|
13.71
|
13.80
|
|||||
|
Module Efficiency (%)
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
|||||
|
Power Tolerance (W)
|
0 ~ +5W
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc (αIsc)
|
+0.043%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Voc (βVoc)
|
-0.26%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Pmax (γPmp)
|
-0.36%/℃
|
|
|
|
|
|||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5
|
|
|
|
|
|||||
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Factory Display
Product Packaging
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
