- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MANGO
-
Material:
-
PVC
-
Size:
-
85.6x54x0.84mm/CR80
-
Chip:
-
MIFARE Classic EV1 4K
-
Surface:
-
Matte/Glossy/Frosted
-
Thickness:
-
0.76mm/0.8mm/0.84mm/0.9mm/30 mil
-
Application:
-
Patrol system, Attendance system, Access control System,etc.
-
Printing:
-
Color Printing,Printable,Logo Printing,CMYK Printing,Silk Printing
-
Craft:
-
Magnetic strip/barcode/QR code/Serial Number/hot stamping
-
Type:
-
ID Card,Magnetic Card,Rfid Card,Nfc Card,Smart Card,Blank Card
Quick Details
-
Special Features:
-
card
-
Communication Interface:
-
RFID
-
Frequency:
-
13.56Mhz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MANGO
-
Material:
-
PVC
-
Size:
-
85.6x54x0.84mm/CR80
-
Chip:
-
MIFARE Classic EV1 4K
-
Surface:
-
Matte/Glossy/Frosted
-
Thickness:
-
0.76mm/0.8mm/0.84mm/0.9mm/30 mil
-
Application:
-
Patrol system, Attendance system, Access control System,etc.
-
Printing:
-
Color Printing,Printable,Logo Printing,CMYK Printing,Silk Printing
-
Craft:
-
Magnetic strip/barcode/QR code/Serial Number/hot stamping
-
Type:
-
ID Card,Magnetic Card,Rfid Card,Nfc Card,Smart Card,Blank Card

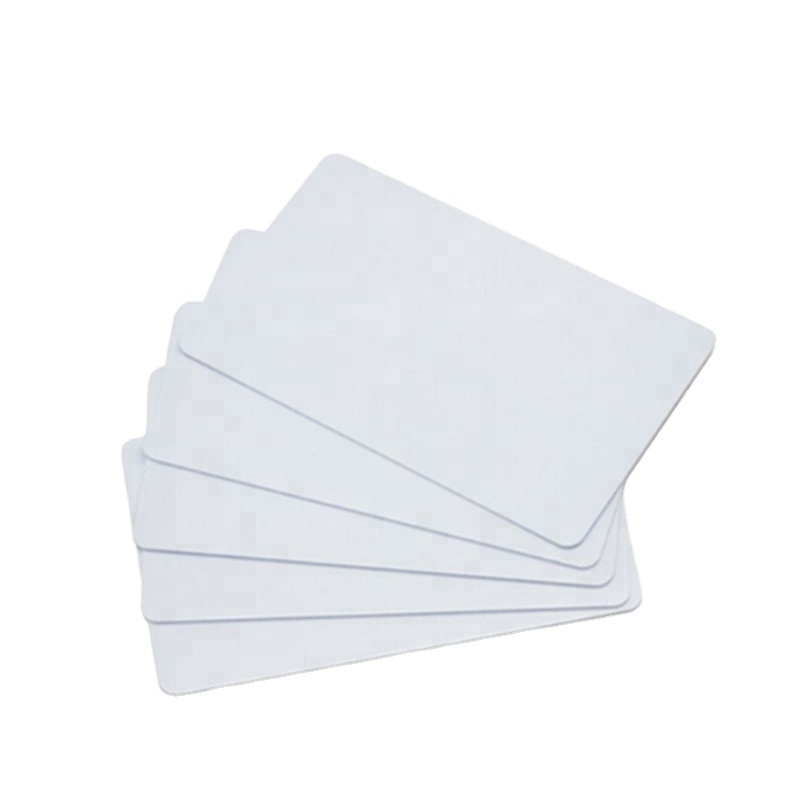

Original chip NXP MIFARE ® Classic EV1 4K 13.56mhz blank card
This is blank card without printing, you can also contact us for printing cards if you have demand.
|
Material:
|
PVC
|
||
|
Dimension:
|
85.6x54x0.88
|
||
|
Color:
|
white,no printing
|
||
|
Frequency:
|
13.56MHz
|
||
|
Chip:
|
MIFARE Classic EV1 4K
|
||
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE Classic ®
MIFARE Classic ® ICs started a revolution in the contactless smart card business back in 1994. Today, they’re still used in a variety of applications worldwide.
The MIFARE Classic EV1 represents the highest evolution of the product family and succeeds all previous versions.
These solutions provide excellent ESD robustness for easy handling of the IC during inlay and card manufacturing and best-in-class RF performance for optimized transactions—allowing for more flexible antenna designs.
MIFARE Classic EV1 4K - Mainstream contactless smart card IC for fast and easy solution development1. General description:
NXP Semiconductors has developed the MIFARE Classic MF1S70yyX/V1 to be used in a contactless smart card according to ISO/IEC 14443 Type A. The MIFARE Classic EV1 4K MF1S70yyX/V1 IC is used in applications like public transport ticketing and can also be used for various other applications.
2. Features and benefits
• Contactless transmission of data and energy supply
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• Anticollision
• Typical ticketing transaction time of < 100 ms (including backup management)
• 7 Byte UID or 4 Byte NUID • Random ID support (7 Byte UID version)
EEPROM
• 4 kB, organized in 32 sectors of 4 blocks and 8 sectors of 16 blocks (one block consists of 16 byte)
• User definable access conditions for each memory block
• Data retention time of 10 years • Write endurance 200000 cycles
3. Applications
• Public transportation
• Access management
• Electronic toll collection
• Car parking
• School and campus cards
• Employee cards
• Internet cafés
• Loyalty
White Blank without printing
There is no any printing content on the blank card. Many customer order large quantity blank card.
They print the blank cards by their printer that can save a lot of cost.
Generally laminated coated overlay should be added on blank card, and then it is printable by customer.
