Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM, Icebear
-
Model Number:
-
FSD-15, HFS
-
Product Name:
-
fluid flow switch
-
Operating Temperature:
-
0~60 ℃
-
Control type:
-
Paddle
-
Ambient temperature limits:
-
5-40 ℃
-
Electrical switch:
-
SPDT
-
Repeatability:
-
±2.5% of total range
-
Withstand pressure:
-
16 bar
-
Medium temperature:
-
5 ~ 80 ℃
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
1 Year
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM, Icebear
-
Model Number:
-
FSD-15, HFS
-
Product Name:
-
fluid flow switch
-
Operating Temperature:
-
0~60 ℃
-
Control type:
-
Paddle
-
Ambient temperature limits:
-
5-40 ℃
-
Electrical switch:
-
SPDT
-
Repeatability:
-
±2.5% of total range
-
Withstand pressure:
-
16 bar
-
Medium temperature:
-
5 ~ 80 ℃
Catalogue
Products Description
Specification
|
Model
|
Connection Size (in)
|
Model
|
Diameter (Inch)
|
|
|
|
FSA-15
|
1/2"
|
FSB-25A
|
1"
|
|
|
|
FSA-20
|
3/4"
|
|
2"
|
|
|
|
FSA-25
|
1"
|
|
3"
|
|
|
|
Model
|
Nominal Diameter
|
NB/DN
|
Pipe Connector
|
Adjustment Range
|
|
|
FSD-15
|
15
|
BSP pipe
|
RC1/2"
|
3~11
|
|
|
|
|
Metric pipe
|
|
5~17
|
|
|
FSD-20
|
20
|
BSP pipe
|
RC3/4"
|
4.2~18
|
|
|
|
|
Metric pipe
|
|
8.3~37
|
|
|
FSD-25
|
25
|
BSP pipe
|
RC1"
|
5.2~23
|
|
|
|
|
Metric pipe
|
|
10~48
|
|
|
FSD-32
|
32
|
BSP pipe
|
RC1-1/4"
|
8.1~39
|
|
|
|
|
Metric pipe
|
|
19~90
|
|
|
FSD-40
|
40
|
BSP pipe
|
RC1-1/2"
|
15~69
|
|
|
|
|
Metric pipe
|
|
25~111
|
|
|
FSD-500
|
50
|
BSP pipe
|
RC2"
|
35~92
|
|
|
|
|
Metric pipe
|
|
46~125
|
|
|
Type
|
FSC
|
|
|
|
|
|
Pipe Connector
|
1inch11-1/2NPT Threads
|
|
|
|
|
|
Switch
|
SPDT Snap-acting
|
|
|
|
|
|
Bellows/Paddle
|
phosphor bronze/stainless steel
|
|
|
|
|
|
Paddle
|
1",2",3"and6"(uninstalled)
|
|
|
|
|
|
Fluid temperature
|
0~120°C
|
|
|
|
|
|
Max.Fluid Pressure
|
1.0Mpa
|
|
|
|
|
|
IP Grade
|
NEMA1
|
|
|
|
|

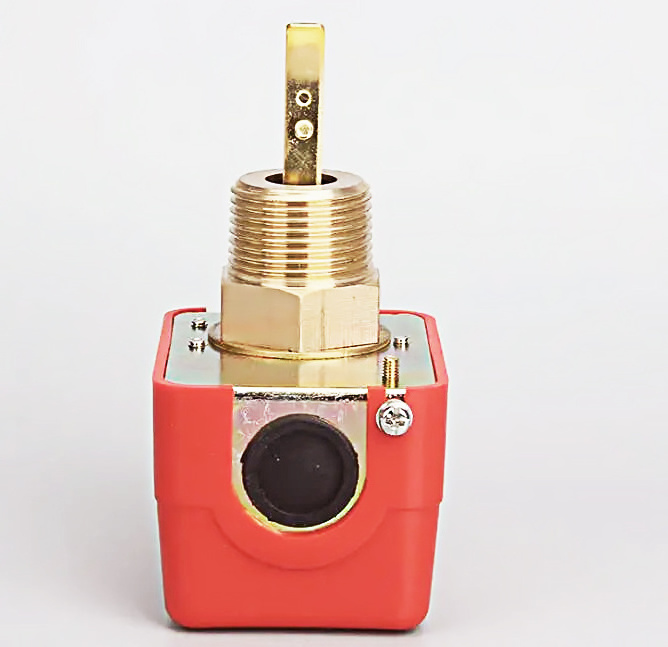

Details Images
