Name: Decoiler
Brand:China own made
Capacity: 3 tons
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KYT
-
Voltage:
-
380V 60 Hz or according to client requirement
-
Dimension(L*W*H):
-
6.9*1.5*1.6m
-
Weight:
-
2500 kg
-
Feeding width:
-
1000-1250 mm
-
Cutting type:
-
Automatic Hydraulic Cutting
-
Color:
-
Client's Request
Quick Details
-
Type:
-
roll forming machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
12 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KYT
-
Voltage:
-
380V 60 Hz or according to client requirement
-
Dimension(L*W*H):
-
6.9*1.5*1.6m
-
Weight:
-
2500 kg
-
Feeding width:
-
1000-1250 mm
-
Cutting type:
-
Automatic Hydraulic Cutting
-
Color:
-
Client's Request
Product Description

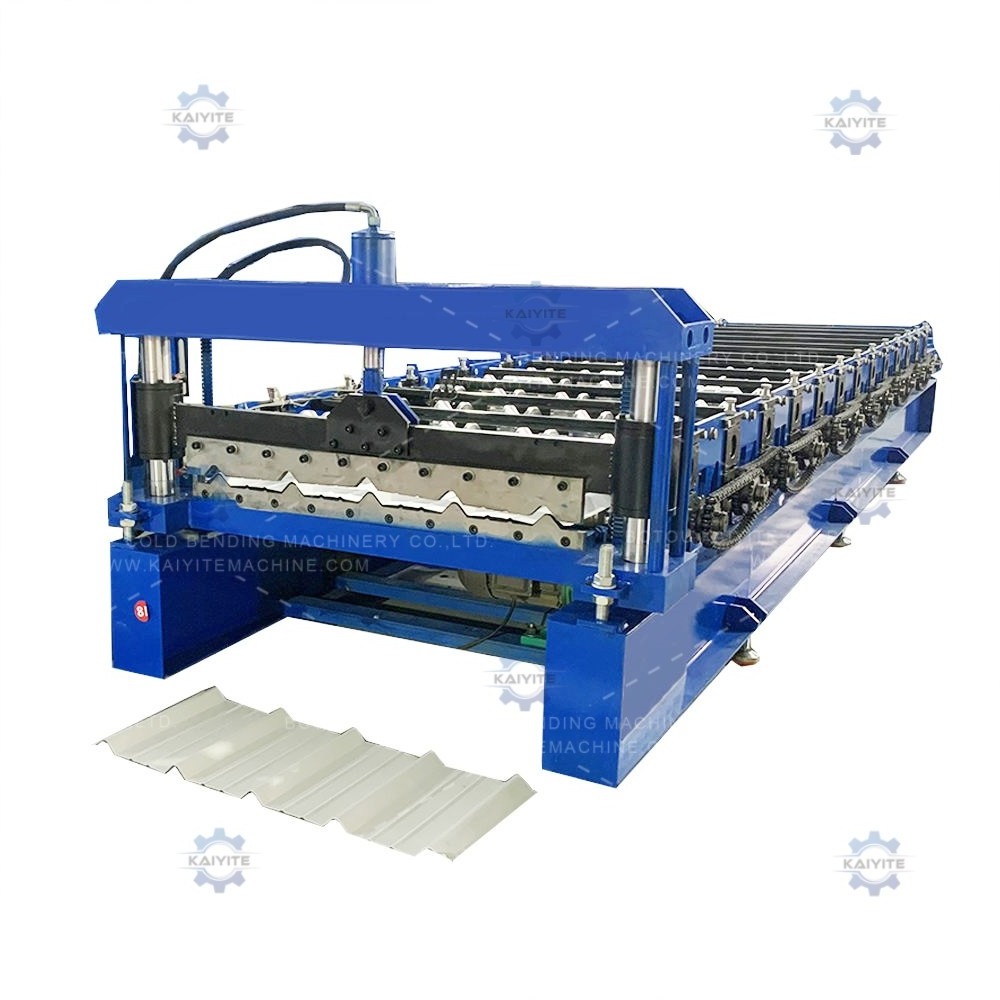

Hydraulic Roll Former Single Layer Cold Roll Forming Machine Metal Roof Making Machine
For roof tile, it includes many types according to its different shape, popular type include corrugated tile roll forming machine,trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!
Machine Parts
Main Features
Name: Feeding flate
Equipped with manual pre-cutting device to avoid waste of coil
Machine Parts
Name: Main forming system
1. Rollers adopt Cr12,surface chrome 0.03-0.05mm,Hard chrome mirror polishing, ensure roller smooth.Spacers must lathe inner holes, and do Chrome plating;
2. Transfer method adopts gear.
Main Features
Name: Control system
Delta touch screen, Delta frenqucy inveter.
Main Features
The bearings are made of 45# steel, which is quenched to increase the hardnes
s.
Specification
|
Suitable Material
|
Color Steel
|
|
Raw material width
|
1000-1200 mm
|
|
Sheet effective width
|
840 mm
|
|
Material thickness
|
0.3-0.8 mm or customized
|
|
Forming roller material
|
45# steel plated with chrome
|
|
Shaft diameter
|
70 mm
|
|
Driving way
|
By gear
|
|
Brand Name
|
KYT
|
|
Voltage
|
380V 60 Hz or according to client requirement
|
Packing & Delivery
1.We will wipe anti rust oil for the whole machine .
2.Plc controller will be covered by foam film.
3.Spare parts are some small parts are packed in a wodden case.
4.All componenets are fixed well by steel wire with container.
