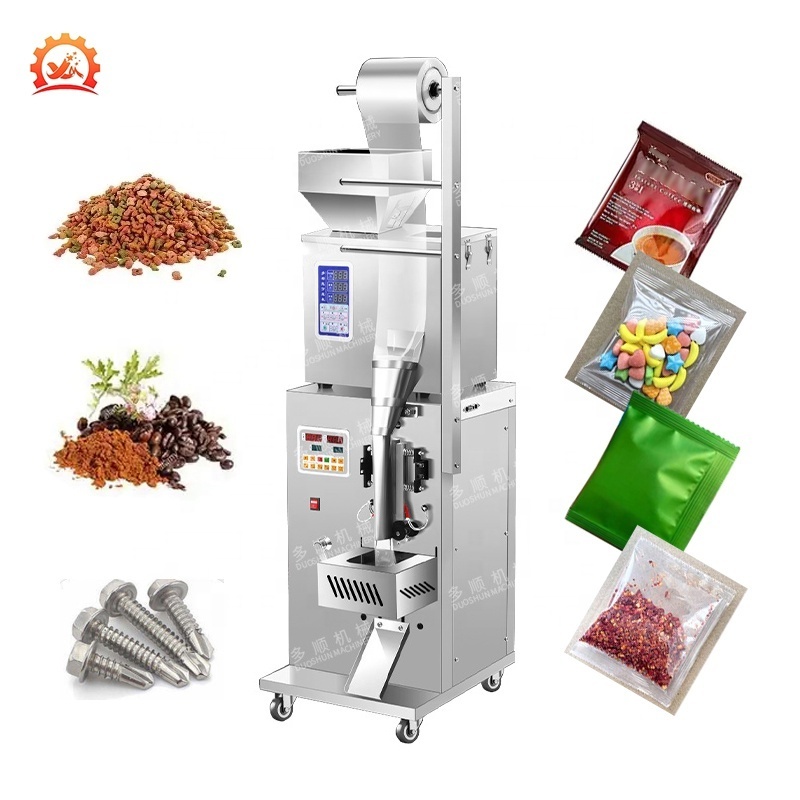

Guangzhou DZD-220 Automatic Spice Powder Granular Peanut Tea Mini Plastic Pouch Sachet Bag Multi-Function Packaging Machine

Guangzhou DZD-220 Automatic Spice Powder Granular Peanut Tea Mini Plastic Pouch Sachet Bag Multi-Function Packaging Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $740

≥5 Sets

US $710

≥10 Sets

US $680

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 5-20bag/min

Weight (KG):: 50

Voltage:: 220V/110V 50HZ/60HZ

Place of Origin:: Guangdong, China

Brand Name:: DUOSHUN

Dimension(L*W*H):: 420*520*1600mm

Product name:: Bag Packing Machine

Name:: Vertical Automatic Packaging Machine

Bag type:: Three Side Sealing

Usage:: Bag Making

Main Function:: Weighing Forming Filling Sealing

Keyword:: Automatic Snack Food Sugar Packing

Packing speed:: 5-20bags/min

Film material:: Hot Seal Film

Item:: Small Industries

Marketing Type:: Ordinary Product

Quick Details

Function:: FILLING, Wrapping, Sealing, Gluing, SLITTING, counting

Packaging Type:: Bags, Film, Pouch

Packaging Material:: Plastic, Paper, Metal

Production Capacity:: 5-20bag/min

Weight (KG):: 50

Voltage:: 220V/110V 50HZ/60HZ

Place of Origin:: Guangdong, China

Brand Name:: DUOSHUN

Dimension(L*W*H):: 420*520*1600mm

Product name:: Bag Packing Machine

Name:: Vertical Automatic Packaging Machine

Bag type:: Three Side Sealing

Usage:: Bag Making

Main Function:: Weighing Forming Filling Sealing

Keyword:: Automatic Snack Food Sugar Packing

Packing speed:: 5-20bags/min

Film material:: Hot Seal Film

Item:: Small Industries

Marketing Type:: Ordinary Product

- Factory Area -

More than 20,000 m ² area.

- Quantity in Stock -

More than 5,000 sets .

- Team Power -

More than 300 employees .

- Monthly Yield -

More than 2,000 sets .

- Established Time -

More than 20 years .

- Monthly Sales -

More than 1,000 sets .

Product Model	DZD-220
Application	Particle/Powder
Production Capacity	5-20bag/min
Packaging Weight	1-20g/1-50g/1-100g
Packaging Length	0-15cm
Packaging Width	3-10cm (Film 6-20cm)
Packaging Accuracy	0.1-0.3g
Voltage	220V 50Hz 500W
Machine Weight	50kg

Product Application

Product Description

Diagram

1. feeding storage hopper

2. subpackage controller

3. sealing controller

4. switch

5. sealing locker

6. anti-preventing device

7. packaging film

8. feeder

9. former

10. vertical heat-seal

11. horizontal heat-seal

12. output

Packaging Film :

Suitable for various heat sealing packaging film, such as filter paper,

nonwovens, composite film, aluminum film, printed film and so on.

Feeding and Weighing:

Stainless steel material. Equipped with electronic scale. Accurate measurement and slight error.

Feeder and Former:

Materials come out from the feeder after weighing. The former s ize can be customized. It determines the width of final product.

Vertical Heat-seal:

Heat seal the side of the pouch automatically. Temperature can be adjusted according to different materials.

Horizontal Heat-seal:

Heat seal the top and bottom side of

the pouch automatically. Temperature can be adjusted according to different materials. Then cut pouches one by one.

Subpackage Controller:

Control the weight of pouch, automatic and accurate. Adjust the packing speed——fast, medium, slow.

Sealing Controller:

Adjust the length of pouch. Control the temperature of sealing according to differernt packaging film.

Cursor: (optional)

If the film is blank, no need for cursor. If the film is printed, the cursor help locate the track point, so each picture will be in the right position.

Ribbon Coding: (optional)

Print date and batch number automatically. Printing content can be customized according to actual needs.

Product Parameter

Product Model	DZD-220	DZD-320B	DZD-420B
Application	Particle/Powder	Particle/Powder	Particle/Powder
Production Capacity	5-20bag/min	5-20bag/min	5-20bag/min
Packaging Weight	1-20g/1-50g/1-100g	10-500g	10-999g
Packaging Length	0-15cm	0-22cm	0-28cm
Packaging Width	3-10cm (Film 6-20cm)	7-15cm (Film 16-32cm)	7-20cm (Film 16-42cm)
Packaging Accuracy	0.1-0.3g	1-2g	1-2g
Voltage	220V 50Hz 500W	220V 50Hz 550W	220V 50Hz 600W
Machine Dimensions	*4205201600mm*	4806801730mm	5009002050mm
Machine Weight	50kg	70kg	90kg
Optional	Cursor/Coder	Cursor/Coder	Cursor/Coder
