Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Eclectic
-
Type:
-
suspended platform
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RUIBIAO
-
Model Number:
-
ZLP, ZLP250/500/630/800
-
Suspension Mechanism:
-
Galvanized/Aluminum alloy/Paint
-
Safety Lock:
-
Stainless steel lock cylinder (surface "Dacro" process)
-
Electrical Control Box:
-
Schneider electric components
-
Wire rope 1:
-
Diameter = 8.3mm
-
Wire rope 2:
-
100m * 4 pcs
-
Rated load:
-
250kg/500kg/630kg/800kg
-
Working height:
-
0-100m
-
Power supply:
-
220V/380V
-
safety equipment:
-
Emergency stop / speed limit / broken rope / upper limit / manual
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Eclectic
-
Type:
-
suspended platform
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RUIBIAO
-
Model Number:
-
ZLP, ZLP250/500/630/800
-
Suspension Mechanism:
-
Galvanized/Aluminum alloy/Paint
-
Safety Lock:
-
Stainless steel lock cylinder (surface "Dacro" process)
-
Electrical Control Box:
-
Schneider electric components
-
Wire rope 1:
-
Diameter = 8.3mm
-
Wire rope 2:
-
100m * 4 pcs
-
Rated load:
-
250kg/500kg/630kg/800kg
-
Working height:
-
0-100m
-
Power supply:
-
220V/380V
-
safety equipment:
-
Emergency stop / speed limit / broken rope / upper limit / manual
A.Description of Electric Hanging Metal steel Building Window facade cleaning Construction Slatwall Gondola with wire lift motor hoist price
Suspended platform is the latest products developed by RUIBIAO,with the features like more stable than elevator when start/stop,which greatly enhance the security and the service life of hoist and steel wire rope.The product has won the National hightech patent certificate.
ZLP Suspended Platform is a new decorating machinery, which can replace the traditional scaffold and is mainly used in decorating, cleaning and maintenance of external walls of high buildings, such as cement coating, wall brick coating, painting, glass installing, ship building and repairing, big vessels, bridges, dams, chimneys, etc. Using Balance suspended platform can reduce work intensity and raise work efficiency.
B.Parameter of the suspended platform
| Name | Technical parameter of construction platform | ||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load | 500KG | 630KG | 800KG | 1000KG | |
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | |
| Platform Dimension L×W×H(mm) | 5000(2+3m)×720 | 6000(1+2+3m)×720 | 7500(2.5m*3)×720 | 7500(3*2.5)×720 | |
| ×1300 | ×1300 | ×1300 | ×1300 | ||
| Lifting Height | 100M | 100M | 100M | 100M | |
| Cable | 100M | 100M | 100M | 100M | |
| Steel rope | Dia:8.3mm | Dia:8.3mm | Dia:9.1mm | Dia:8.6mm | |
| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
| Safety lock | Permission force of | 30KN | 30KN | 30KN | 30KN |
| impact | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
| Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m |
| Galvanized | Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m |
| Counterweight | 800KG | 1000KG | 1000KG | 1200KG | |
| 20’ft container load qty | 10 sets | 10 sets | 8 sets | 8 sets | |
| Type | A-alloy platform, Hot Dipping Platform, Steel platform | ||||

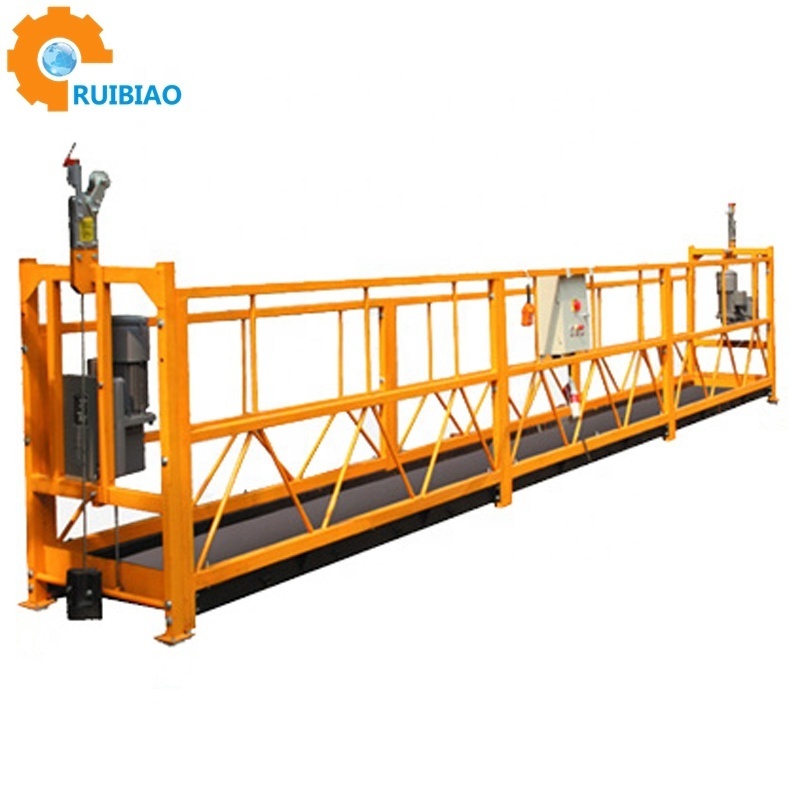

C.Pictures of the suspended platform
D.The main purposes of the suspended platform
- Exterior wall construction and decoration of high-rise building, installation of panel wall and structural members of exterior wall.
- Repair, maintenance and cleansing of exterior wall of high-rise building.
- Construction, inspection, repair and maintenance of large project, for instance: chimney, dam, bridge and head frame.
- Welding, cleansing and oil-painting of large ship.
- Fabrication and installation of bulletin board on buildings at heights.
E.Drawing of the suspended platform
F.Component of the suspended platform
Suspended platform is mainly conmposed by suspension mechanism , hoist , safety lock , electric control box , working platform .
Its structure is reasonable and easy to operate. It can be make-up and break-out according to the actual need. The suspended platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building
