Quick Details
-
Production Capacity:
-
5000pcs/year
-
Power:
-
2200
-
Dimension(L*W*H):
-
1150*1100*1300mm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Voltage:
-
380
-
Weight:
-
150 kg
-
Production Capacity:
-
5000pcs/year
-
Power:
-
2200
-
Dimension(L*W*H):
-
1150*1100*1300mm

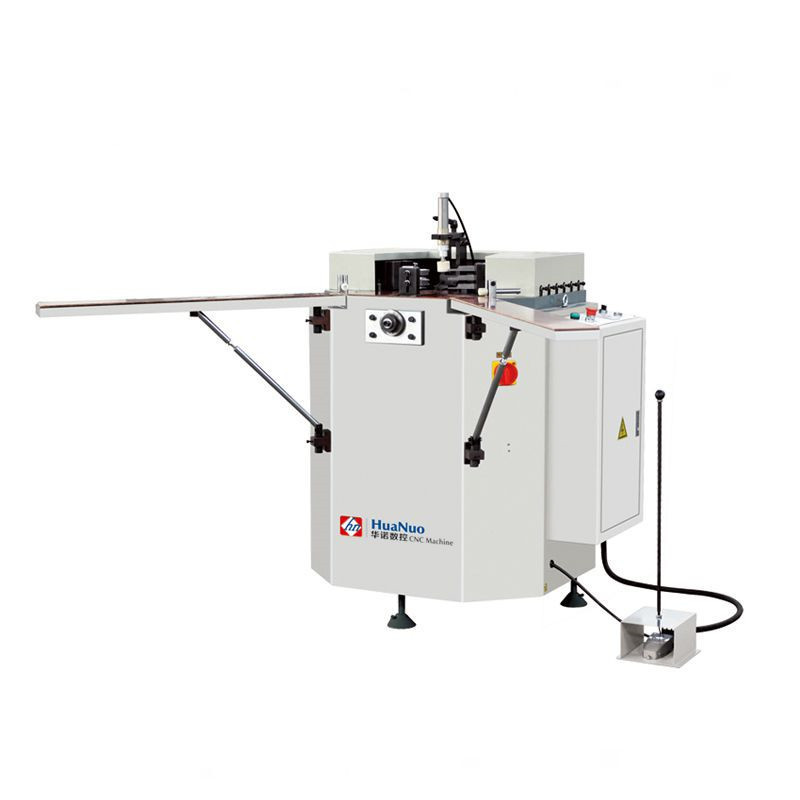

Corner Crimping Machine LMB-120B
Products Description
1.Strengthened machine structure and rack to make it work more stable and low malfunctions.
2.Auto up-down inner localization to make workpiece clamping convenient .
3.Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness.
4.Special high speed hydraulic system to supply fast crimping and high efficiency.
Product Paramenters
|
Input voltage
|
380V/50Hz
|
|
Input power
|
2*1.5Kw
|
|
Air pressure
|
0.5~0.8Mpa
|
|
Air consumption
|
2L/min
|
|
Rating oil pressure
|
20Mpa
|
|
General pressure of corner combining
|
60KN
|
|
Capability of oil box
|
60L
|
|
Corner crimping casing movement journey
|
0~85mm
|
|
Profile height
|
100mm
|
|
Overall dimension
|
1150*1100*1300mm
|
Details Images
Recommend Products
Packing&Delivery
Packing Detail
For LCL(less container load) shipping, we will adopt the following packing method:
Inner package: stretch film.
Outside package: standard export plywooden cases.
For FCL(full container load) shipping ,all machines will wrap with film and same time fixed the machines into container with steel iron.
Delivery Detail
Usually we will arrange dispatch within 3-5 working day after receive payment.
If there are big order or customized machines, it will take 10-15 working day.
