Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WebiT
-
Model Number:
-
WB-OD-E
-
Capacity:
-
4U - 18U
-
Color:
-
Gray RAL7035
-
IP degree:
-
55/56/65 optional
-
Type:
-
Wall Mount Outdoor Cabinet
-
Certification:
-
ISO 9001:2008/CE/ROHS
-
Surface finish:
-
Powder Coating
-
Certifications:
-
ISO 9001:2015/CE/ROHS/REACH
-
Payment:
-
T/T, L/C, Western Union
Quick Details
-
Cabinet Standard:
-
ANS/EIA RS-310-D
-
Size:
-
Customized
-
Material:
-
Galvanized Steel, Zinc plated steel Stainless
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WebiT
-
Model Number:
-
WB-OD-E
-
Capacity:
-
4U - 18U
-
Color:
-
Gray RAL7035
-
IP degree:
-
55/56/65 optional
-
Type:
-
Wall Mount Outdoor Cabinet
-
Certification:
-
ISO 9001:2008/CE/ROHS
-
Surface finish:
-
Powder Coating
-
Certifications:
-
ISO 9001:2015/CE/ROHS/REACH
-
Payment:
-
T/T, L/C, Western Union

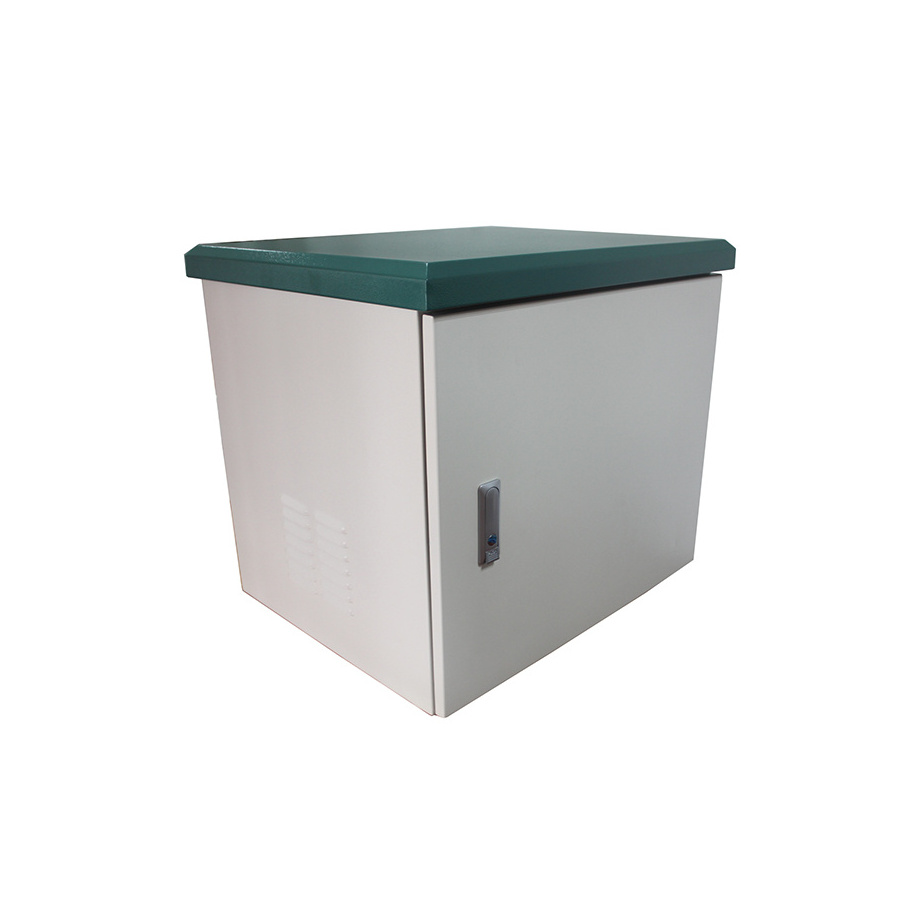

IP55-65 Wall Mount Outdoor Telecom and Energy Application
Features
Parameter
Structure
| Material | SPCC cold rolled steel |
| Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available to be designed for the material used |
| Processing | Laser cutting, CNC punching, CNC bending, Hand welding, stamping, etc |
| Surface treatment | Painting, Plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc |
| Certification | ISO9001:2000 , CE, RoHS , SGS |
| Delivery date | Within 30 days |
| IP degree | IP55&65 |
| Water proof | 0.2Mpa,10mm/min,30min,Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) |
| No leakage inside Comply with GB 4208-1993 IP65 standard | |
| Fire proof | Non-metal marterial burning time< 1s(put onto blue fire over 30s) |
| Noise proof | < 55db |
| Voltage test | Comply with 48V DC or 220V AC |
| Resistance test | resistance from earthing bolt to body <0.01Ω |
| Working environment | Can normally work from -30 to 65 ° |
| Color standard | Comply with GB/T 3181-1995 sheet 2 's color requirement |
| Painting standard | Comply with GB/T 9286-1998 sheet 1, Class-1 |
| 9. Tolerance | +/-3mm |
