Heating ring material:Cast aluminum
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCTTECH
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
25000*2000*2500MM
-
Power (kW):
-
120
-
Weight:
-
4000 KG
-
Keywords:
-
pe pipe extruding machine
-
Final product:
-
PE HDPE PPR PA pipe
-
Material:
-
PE granules
-
Automatic Grade:
-
Fully Automaitc
-
Inverter:
-
ABB Brand
-
Color:
-
Customized Color
-
Screw type:
-
Singe screw
-
Motor brand:
-
SIENEMS BEIDE
-
Processing Type:
-
PE Extrusion Machine
-
Application Field:
-
Construction Material
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCTTECH
-
Voltage:
-
380V/220V/440V
-
Dimension(L*W*H):
-
25000*2000*2500MM
-
Power (kW):
-
120
-
Weight:
-
4000 KG
-
Keywords:
-
pe pipe extruding machine
-
Final product:
-
PE HDPE PPR PA pipe
-
Material:
-
PE granules
-
Automatic Grade:
-
Fully Automaitc
-
Inverter:
-
ABB Brand
-
Color:
-
Customized Color
-
Screw type:
-
Singe screw
-
Motor brand:
-
SIENEMS BEIDE
-
Processing Type:
-
PE Extrusion Machine
-
Application Field:
-
Construction Material
Products Description
PE plastic pipe is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables etc.
This machine features:
**PE plastic pipe extrusion line consists mainly of vacuum calibration tank,haul-off unit,cutting unit,stacker etc.
** Single screw extruder and haul-off unit have applied with A/C inverter;
** Both vacuum tank and spray cooling water tank adopt automatic water temperature and level control and special independent filters
** The haul-off unit includes two-claw type,three- claw type,four-claw type,six-claw type,eight-claw type...etc.
** No-scraps cutting,saw cutting or planetary cutting can be choosed.The planetary cutting machine is fully automatic computer digital control.
** It has such advantages of simple operation, reliable property.
This machine features:
**PE plastic pipe extrusion line consists mainly of vacuum calibration tank,haul-off unit,cutting unit,stacker etc.
** Single screw extruder and haul-off unit have applied with A/C inverter;
** Both vacuum tank and spray cooling water tank adopt automatic water temperature and level control and special independent filters
** The haul-off unit includes two-claw type,three- claw type,four-claw type,six-claw type,eight-claw type...etc.
** No-scraps cutting,saw cutting or planetary cutting can be choosed.The planetary cutting machine is fully automatic computer digital control.
** It has such advantages of simple operation, reliable property.
Machine Working Flow
Material Vacuum feeding → Hopper dryer → Main extruder → Color extruder →Mould→ Vaccum calibration tank → Spray cooling tank →Meter-measure printer →Haul off machine → Cutting machine(or pipe winder machine)→ Stacker
Product Paramenters
|
Model
|
Pipe diameter(mm)
|
Main extruder
|
Main power(kw)
|
Total power(kw)
|
Line length(m)
|
|
PE63
|
16-63
|
SJ65/33
|
37
|
80
|
24
|
|
PE110
|
75-110
|
SJ65/33
|
55
|
110
|
30
|
|
PE160
|
90-160
|
SJ75/33
|
90
|
150
|
32
|
|
PE250
|
110-250
|
SJ75/33
|
110
|
200
|
42
|
|
PE315
|
160-315
|
SJ90/33
|
160
|
240
|
44
|
|
PE400
|
200-400
|
SJ90/33
|
185
|
300
|
50
|
|
PE500
|
250-500
|
SJ120/33
|
280
|
350
|
56
|
|
PE630
|
315-630
|
SJ120/33
|
280
|
480
|
56
|
|
PE800
|
400-800
|
SJ150/33
|
315
|
550
|
72
|
Product Details
MAIN EXTRUDER
Material of screw and machine barrel:38CrMoALA

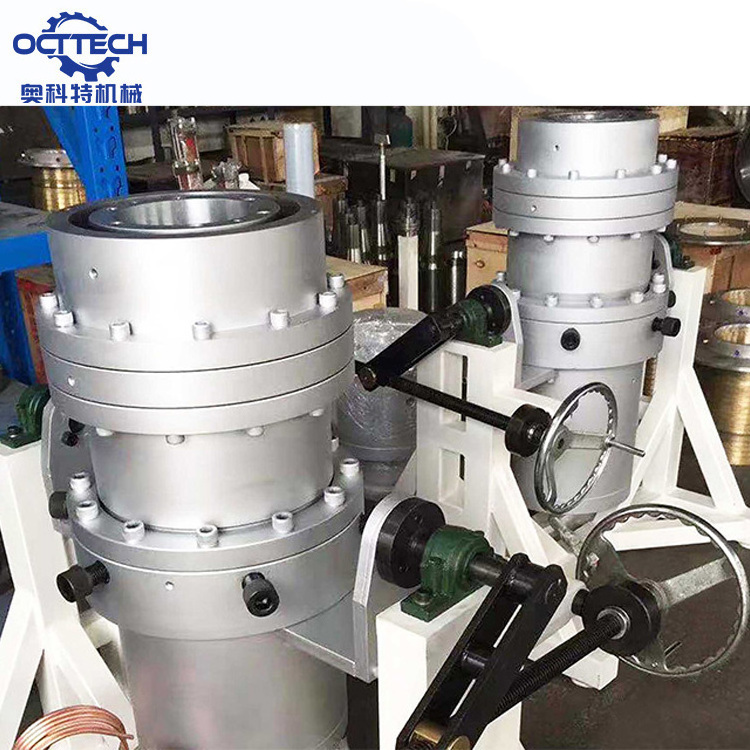

MOULD
Basic mould,Die head material:40Cr
Calibration copper sleeve :Tin bronze
VACUUM CALIBRATION WATER TANK
Vacuum tank Length:6000mm
Equipped with water temperature and water level controlled by Floating ball switch. Vacuum tank and water cooling tank all use
stainless steel
Spray water cooling
Equipped with water temperature and water level controlled by Floating ball switch. Vacuum tank and water cooling tank all use
stainless steel
Spray water cooling
HAUL OFF MACHINE
Belt type:Rubber block
Belt adjust type:Pneumatic clamp device control
Traction speed:Inverter control the speed.
Belt adjust type:Pneumatic clamp device control
Traction speed:Inverter control the speed.
WINDER
Double station or single station winder for choice
STACKER
Material :Stainless steel
Discharging by cylinder
Discharging by cylinder
PRINTER
Laser printer for choice
CONTROL CABINET
France Schneider contactor
Japan Omron temperature controller
ABB invertor.
Japan Omron temperature controller
ABB invertor.
FINAL PRODUCT:PE HDPE PPR pipes
