Quick Details
-
Application:
-
Dispensing
-
Certification:
-
CE Certificated
-
Working area:
-
400(X)*400(Y)*100(Z)
-
motor system:
-
Japan servo motor
-
Weight:
-
45kg
-
Operating system:
-
LCD pannel/ Teach Pendant
-
Resolution:
-
0.01
-
Reaptabily:
-
±0.025mm
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Second
-
Product name:
-

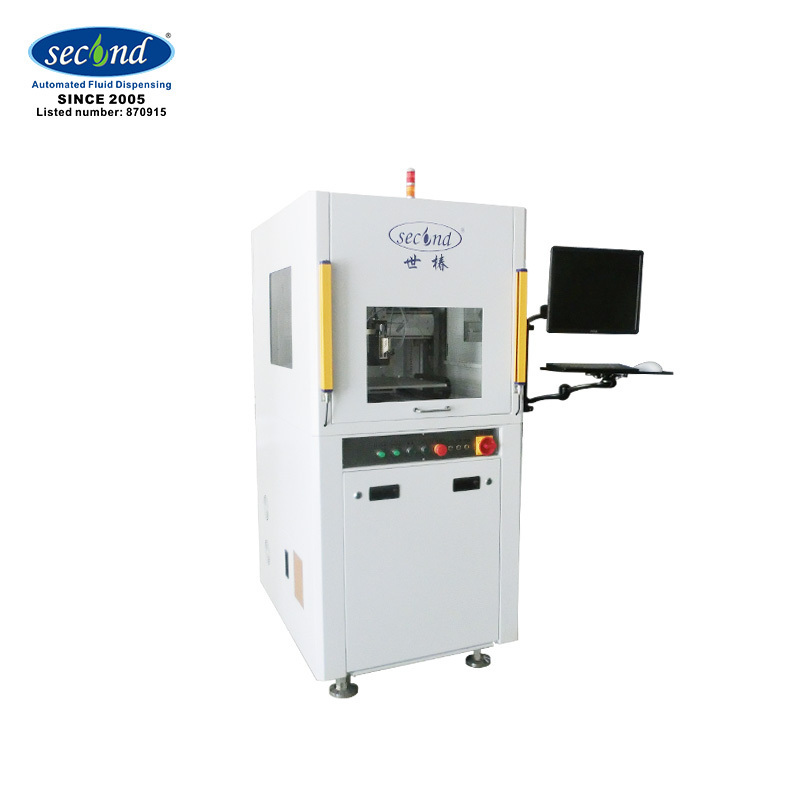

Automatic dispensing robots
-
Application:
-
Dispensing
-
Certification:
-
CE Certificated
-
Working area:
-
400(X)*400(Y)*100(Z)
-
motor system:
-
Japan servo motor
-
Weight:
-
45kg
-
Operating system:
-
LCD pannel/ Teach Pendant
-
Resolution:
-
0.01
-
Reaptabily:
-
±0.025mm
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
Application:
Mobile phones, computer case, CD-ROM driver, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors,SMT, medical apparatus.
Specification:
| Travel speed | 500mm/sec |
| Resolution | 0.001mm |
| Repeatability | ±0.02mm |
| Operation system | WINDOWS 7 |
| Drive Mode | Servo motor/ball screw |
| Power supply | AC220V 50-60HZ 1.5KW |
| Size | 800(L)*780(W)*1700(H)mm |
| Weight | About 450kg |
| Work environment | Humidity:20-90%, Temperature:0-40°C |
Features :
| WINDOWS 7 operating interface, easy to learn and operate | |||||||
| Double worktable of Y axis to save loading/unloading time and improve efficiency | |||||||
| CCD-assisted process programming and teaching function | |||||||
| Double working plate optional, saving time and increase efficiency | |||||||
| Positioning PIN, glue guns, soleplate heating and temperature regulating device optional | |||||||
| Multiple size dispensing jigs optional | |||||||
| 300CC cartridge or pressure barrel optional | |||||||
| Own original high-speed rotary valve makes sure the precision of dispensing volume | |||||||
| Applied to UV glue, AB glue, COB ( black glue ), white glue, EMI conductive glue, SILICON, epoxy resin,instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw locker and so on. |
Strong wooden cases suitable for a long distance shipment.
package weight :about 600kg
package size: about 1100(L)*1100(W)*2000(H) mm
