Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car
Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car

Hot Selling Servo 60kg Large Torque Waterproof Digital Iron Core Motor with Metal Gear Servo for 1:5 RC Car

FOB Reference Price: Get Latest Price
≥3 Pieces
US $25
≥300 Pieces
US $23
≥500 Pieces
US $21.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
CYS-S0650
Weight:
205g
Application:
1:5 Car
Stall Torque:
52kg.cm~56kg.cm
Operating Speed:
0.13sec/60°~0.11/60°
Operating Voltage:
6.0~7.4Volts
Dead Band Width:
4usec
Material:
Plastic
Plastic Type:
ABS
Scale:
1:5
Radio Control Style:
RC Hobby

Quick Details

Use:
Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
CYS
Model Number:
CYS-S0650
Weight:
205g
Application:
1:5 Car
Stall Torque:
52kg.cm~56kg.cm
Operating Speed:
0.13sec/60°~0.11/60°
Operating Voltage:
6.0~7.4Volts
Dead Band Width:
4usec
Material:
Plastic
Plastic Type:
ABS
Scale:
1:5
Radio Control Style:
RC Hobby

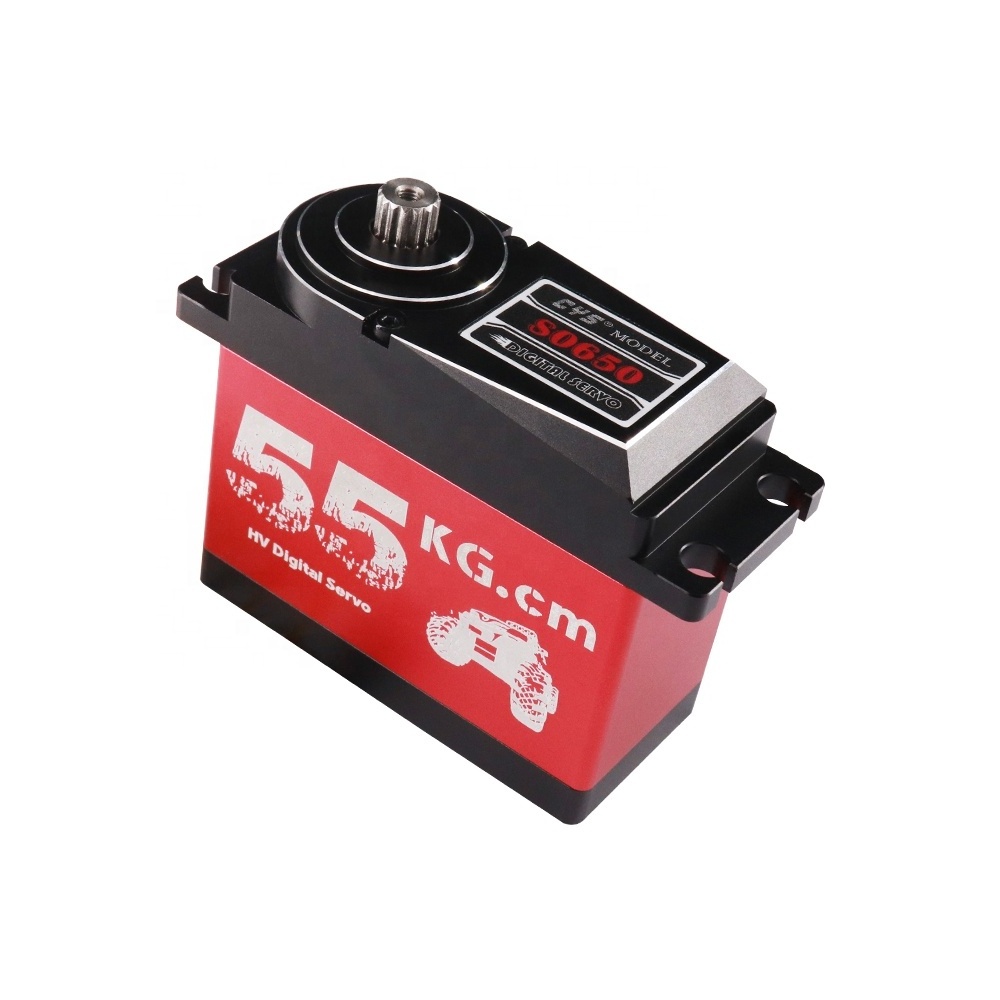

Aluminum Middle Case Full Metal Gear 55kg High Torque HV Digital Waterproof Steering Servo DC Motor for 1/5 Scale RC Car

Product Paramenters
Item No.
CYS-S0650A
Control Type
Digital
Gear Type
Metal
Weight
205g
Size
66x30x58.1mm
Control System
(+)Pulse Width Control 1500μsec Neutral
Operating Voltage
6.0V-7.4V
Operating Temperature Range
-10 °C ~ +50 °C
Operating Speed @ 6.0V-7.4V
0.2 sec/60° - 0.18 sec/60° at no load
Stall Torque @ 6.0V -7.4V
55.0 kg.cm - 60.0 kg.cm
Current Drain (6.0V)
20mA/idle and 120mA no load operating
Current Drain (7.4V)
20mA/idle and 150mA no load operating
Stall Current
10A/13.4A
Dead Band Width
4μsec
Bearing Type
Double Ball Bearing
Motor Type
DC
Horn Gear Spline
15T
Cable/Plug
300mm/JR
Wire Information
Brown(N) Red (P) Orange(S)
