Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SMARTECH
-
Voltage:
-
AC380V/50-60Hz, 3-phase
-
Dimension(L*W*H):
-
4170 x 1920 x 1700mm
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
5.5kw
-
Name:
-
Wood Hinge Boring Drilling Machine
-
Advantage:
-
Drill Multi Holes Simultaneously
-
Application:
-
Wood Drilling Furniture Making
-
Function:
-
Wooden Pin Hole Drilling Machine
-
Type:
-
Horizontal CNC Drilling Machine
-
Keyword:
-
Head Multihole Drilling Machine
-
Customized:
-
Logo
-
Control system:
-
PLC
-
Spindle speed:
-
0--24000rpm VFD Control
-
Spindle:
-
6kw*4
Quick Details
-
Machine Type:
-
Sidle drilling machine
-
Max.Working Width(mm):
-
2500mm
-
Motor Type:
-
Servo
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SMARTECH
-
Voltage:
-
AC380V/50-60Hz, 3-phase
-
Dimension(L*W*H):
-
4170 x 1920 x 1700mm
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
5.5kw
-
Name:
-
Wood Hinge Boring Drilling Machine
-
Advantage:
-
Drill Multi Holes Simultaneously
-
Application:
-
Wood Drilling Furniture Making
-
Function:
-
Wooden Pin Hole Drilling Machine
-
Type:
-
Horizontal CNC Drilling Machine
-
Keyword:
-
Head Multihole Drilling Machine
-
Customized:
-
Logo
-
Control system:
-
PLC
-
Spindle speed:
-
0--24000rpm VFD Control
-
Spindle:
-
6kw*4
New Functions of door locks drilling machine
+Lock hole Hinge
+Door closer
+Movable door slot
+Silent slot
+Aluminum wooden door
+Aluminum plastic door
+ Aluminum alloy door
+Door cover processing
+Thickened electronic lock
+Labeling hole
+Begonia corner
+Composite door Hinge hole
+Draw circle
+cutting slot

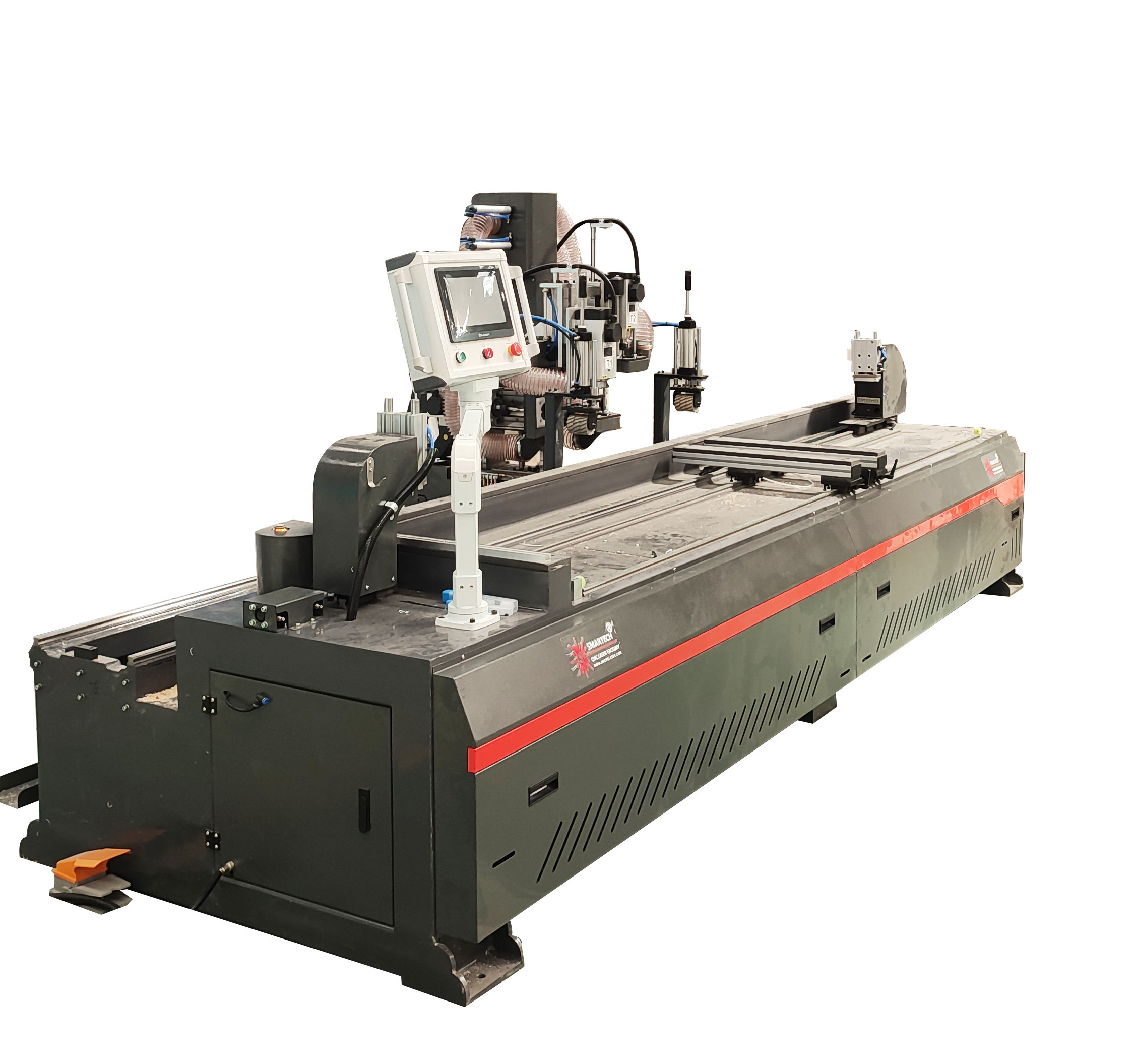

SD1325 Side drilling machine Brief Info
2022 New design Side drilling machine Brief Info
Working size: 300x2500mm
Best inverter 5.5KW
4 Spindles:4.5KW*3+2.2KW*1
China high precision reducer #Rack and pinion transmission
servo motor driver
Dedicated positioning device
oil lubrication system
Used for hinges,door closer,holes drilling,all kinds of door locks @Voltage:380V/220V/60HZ/50HZ
Touchwin controller (touching panel)
Automatic positioning
American original Banner Laser displacement sensor
Servo motor driver
|
Delivery Time |
5-7 working days after deposit |
|
Payment |
30% T/T advance, 70% after production |
|
Warranty |
3 Years |
|
Certificate |
CE |
F unctions: Side drilling holes and horizontal holes drilling For Cabinet Furnitures.
Application:
The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting
Features:
1.This professional machine is used for horizontal perforated plate furniture,Completely replace the traditional drill,get rid of the traditional punching mode.Improve working efficiency greatly. 2.High quality parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer; 3.Reasonable design: independent computer control, operation and maintenance more convenient. 4.Perfect automatic oil lubrication system, prolong the service life of the machine.
Side Drilling Machine Technical Parameter:
|
Model |
Sidle drilling machine |
|
Maximum work piece length |
2500mm/2800/3000/3200/3500/5000mm/Customized |
|
Minimum work piece width |
190mm |
|
Work piece thickness |
≤100mm |
|
Y movement |
Rack and pinion, gear drive/Taiwan |
|
Z movement |
Pneumatic cylinder |
|
Guide |
Linear 20 square/Taiwan |
|
Spindle power |
4.5KW*3+2.2KW*1 |
|
Spindle speed |
18,000rpm |
|
Inverter power |
Best 5.5kw |
|
Drive motors |
servo |
|
Working voltage |
AC380V/50-60Hz, 3-phase |
|
Command code |
G code |
|
Interface |
USB 2.0 |
|
Collet |
ER32- 3.175mm, 6mm, 12.7mm |
|
Functions |
for hinges,door closer,holes drilling,all kinds of door locks |
|
Controls |
Deltacontrolling system |
|
Machine dimensions |
4170 x 1920 x 1700mm |
|
Net weight/Gross weight |
1150/1200kg |
|
Packing size |
3550x1920x1700mm |
CNC Machine for door locks Model: Smart-2500
CNC New Technology VS Traditional Hand made
C ontrol System-Multilingual
Multi Cutting Heads/Spindles:
Dust collection System:
Door Lock holes making:
Machine in one of our dealers workshop:
Side drilling Machine working samples :
